Surface pressure is the force exerted per unit area on a surface, typically measured in [MPa] (megapascals) or [N/m²] (newtons per square meter). This concept is essential in industries where precise pressure distribution affects performance, quality, and safety.
Some applications for surface pressure measurement
- Automotive Industry: Surface pressure measurement is crucial in evaluating the contact between brake pads and disc brakes. By measuring this contact pressure, manufacturers can ensure even wear, optimal braking efficiency, and overall safety. Uneven surface pressure can lead to premature brake wear, reduced braking performance, and costly replacements.
- Semiconductor Industry: In Chemical Mechanical Polishing (CMP), a process used to smooth semiconductor wafers, surface pressure is measured to monitor the contact distribution of the polishing head. Accurate pressure control ensures uniform polishing, which is vital for producing high-quality electronic components with precise specifications.
How do you calculate surface pressure?
Surface pressure can be calculated using the formula:
Surface pressure= Force / Area
Where: Force is measured in terms such as newtons (N), kilogram-force (kgf), or kilograms (kg). Area refers to the contact area over which the force is distributed. This formula gives a result in units of MPa or N/m². For instance, if you have a force in kilogram-force and an area in square centimeters, dividing these values will provide surface pressure in MPa.
Example formula:
Weight (kgf) / Area (cm²) = Surface Pressure (MPa)
Difference between surface pressure, load, and force
Understanding these differences is essential for selecting the correct pressure measurement techniques for specific applications.
Load or force
Refers to the overall force or weight acting on an object, regardless of contact area.
Linear pressure
A term often used when force is applied over a line, such as the contact between a cylindrical surface and another object. It’s calculated as the total load divided by the effective axial length of the cylinder.
Surface pressure
Describes the force per unit area on a surface. It depends on both the magnitude of the force and the area over which it’s applied.
Uniform surface pressure with Fujifilm Prescale
Uniform surface pressure is essential for quality control and operational reliability. Uneven pressure can cause wear, misalignment, and mechanical stress, which is why precise measurement is necessary.

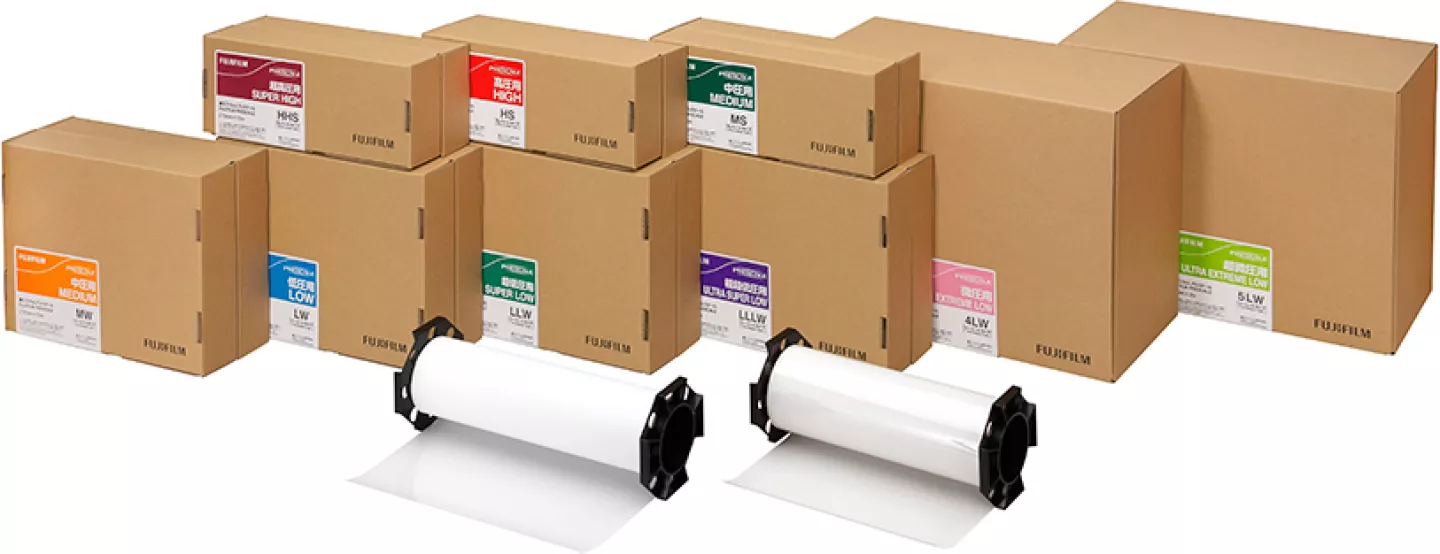

This is where Fujifilm Prescale film comes into play. This is a pressure-sensitive film that visually displays pressure distribution across contact surfaces. It is widely used across various industries for its ability to highlight areas of high and low pressure, detect alignment issues, and analyze pressure trends.
Surface pressure analysis with the Prescale App
The Fujifilm Prescale app further enhances this process, providing a user-friendly interface to digitally capture and analyze Prescale film results. By integrating with Prescale film, the app enables technicians to measure and quantify pressure data quickly, making it easier to detect pressure inconsistencies and maintain quality control standards.
