IOLITE Zubehör

IOLITE-Power-Injector, IOLITE-Repeater IOLITE-Wasserdichtes Gehäuse


About IOLITE Accessories

Accessories for powering the IOLITE devices and building a large-scale measurement.

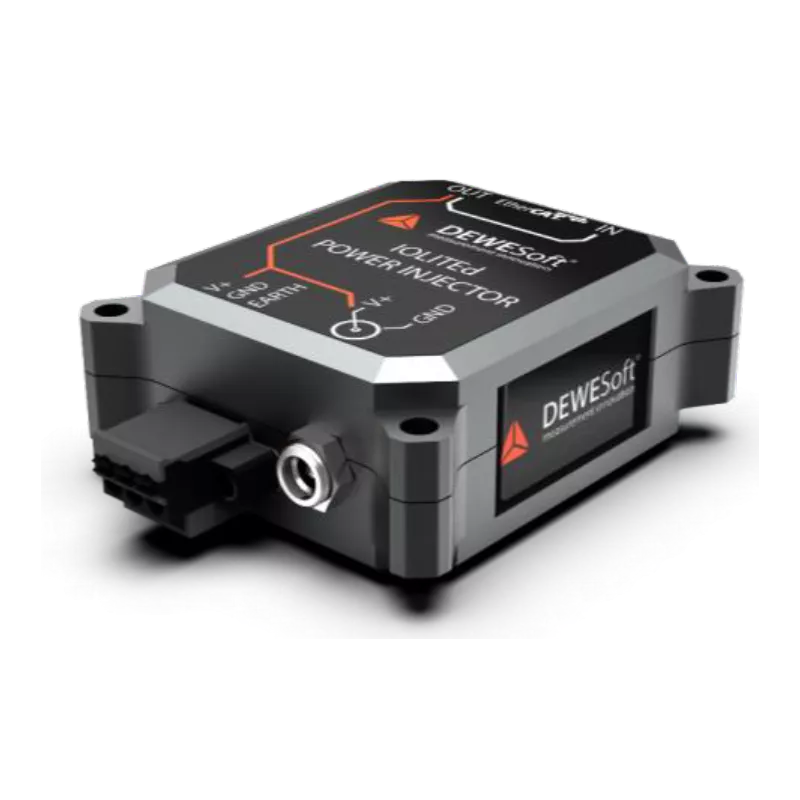

1. IOLITE-POWER-INJECTOR

IOLITE-Power-Injector is a passive PoE power injector. It merges a 12-48 V DC power source and the EtherCAT communication into a single CAT6 cable. The IOLITE devices require the POWER-INJECTOR as the first device in the chain. It also offers the first line of protec-tion to the EtherCAT chain:

  • Burst protection according to 61000-4-4
  • Surge protection according to 61000-4-5

EtherCAT chain of IOLITEd device



2. IOLITE-REPEATER

IOLITE-Repeater is an EtherCAT repeater node. It is used to increase the cable length between two IOLITE measurement devices for a lower cost than adding an additional measure-ment device. The REPEATER fits perfectly into the EtherCAT chain, daisychaining the signal and power from the previous to the next device.

3. IOLITEDW WATERPROOF ENCLOSURE

IOLITE devices can be supplied in a wateproof aluminium enclosure with cable glands. The enclosure is designed to be mounted outdoor. Cables are to be inserted through the cable glands at the installation location and crimped to the cable connectors inside the enclosure. The top lid is to be fixed to the enclosure using an O-ring seal and four bolts after the connectors are mated.

The outdoor enclosure automatically vents air to equalize pressure inside the enclosure to the outside air pressure while it does not allow water to pass into the enclosure. This prolongs the life span of the seal and increases durabi-lity of the enclosure.

IOLITEd waterproof enclosureIOLITEd waterproof enclosure

Benötigen Sie dieses Produkt für Ihr Projekt?

Fordern Sie jetzt ein unverbindliches Angebot an oder senden Sie uns Ihre Kontaktdaten für eine unverbindliche und kostenfreie Beratung. Unsere Vertriebsingenieure setzen sich so schnell wie möglich mit Ihnen in Verbindung.

Kontakt

Produkt Downloads

Sprechen Sie mit unseren Experten

Nicht das richtige Produkt? Wir bieten Standard-Sensoren, helfen Ihnen aber auch gerne mit einem maßgeschneiderten Aufnehmer oder einer kompletten Messlösung weiter. Kontaktieren Sie uns einfach für eine kostenlose Beratung oder einen Kostenvoranschlag.

Kontakt

Technische Spezifikationen

Spezifikationen Wert
General specifications of the iolited-repeater device: digital interface EtherCAT
General specifications of the iolited-repeater device: operating temperature -20 ... 60 degC
General specifications of the iolited-repeater device: power consumption 1200 mW
General specifications of the iolited-repeater device: supply voltage 12 - 48 V
Iolited-power-injector device: digital interface EtherCAT
Iolited-power-injector device: operating temperature -20 ... 60 degC
Iolited-power-injector device: power consumption <500 mW
Iolited-power-injector device: supply voltage 12-48 V
