IOLITEI-1XSTG DMS-Verstärker

---

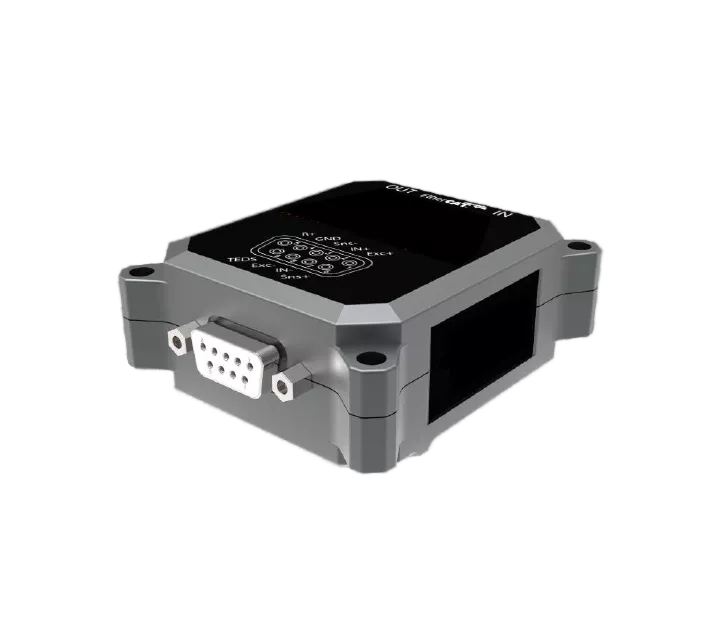

About the IOLITEI-1XSTG Strain Gauge Amplifier

IOLITEi-1xSTG is a single channel gauge amplifier with internal quarter-, half- and full-bridge configurations. Low noise voltage and current source excitation are available with freely settable levels. Input ranges span from 50 V to 100 mV. Data is transfered over EtherCAT to a PC running powerful and easy to use DEWESoft data acquisition software.

Features

• Internal bridge completion (quarter & half, 120 & 350 ohm)
• 50 V to 100 mV input voltage ranges
• 20 mA current input range (internal shunt)
• Settable voltage and current excitation (max 400 mW) Low noise, high dynamic performance
• Signal and power isolation from EtherCAT to front-end
• EtherCAT bus, daisy-chaining with single cable up to 50 m device-device
• DEWESoft X3 software support

Applications

• Material strain measurements
• Precise weighting
• Structural load monitoring

Software support: DEWESoft X3, any standard EtherCAT master

Installation: Devices are daisy chained with a standard network cable. It is recommended that the cable is shielded (SFTP, CAT5e) and has a minimum 24 AWG wire thickness. The cable must have 4 wire pairs. The maximum distance node-to-node is 50 m.

Power supply: Passive PoE power injector is neccessary for merging the EtherCAT signal and power into a single cable.
