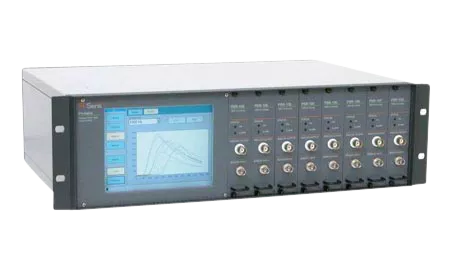

RadSens-2 Signalauswerteeinheit

---

About the RadSens-2 Fiber Optic Amplifiers

The new RadSens-2 is the latest fiber optic innovation for assessment of electromagnetic compatibility of EED (Electro-Explosive Device), offering high speed and deterministic synchronized measurements.

This scalable system offers 3 times more measuring points with a maximum of 26 measurement channels per chassis (compared to 8 with the previous generation). The embedded web server application enables easy configuration and control and is now free from computer OS.

The RadSens-2 offers a built-in automatic calibration feature which removes the need to collect and analyze data manually. The EED induced current sensitivity is automatically calculated using the auto-calibration software. The unique feature can reduce calibration time up to 90%.

Features RadSens-2

• Optimized system configuration with scalable design offering dual channel fiber optic measurment modules for up to 26 channels per chassis
• Embedded web server application providing easier system configuration and control
• EtherCAT and Ethernet interfaces
• Improved performances
• Complete solution ready to use; no need for separate hardware and software
• Unique real-time adaptive filtering for noise removal without signal attenuation
• Modular and improved current source for efficient calibration of instrumental EED
• Built-in calibration tool for precise induced current response measurements
• Open interface for easy integration with existing external data acquisition software
• EED assembly expertise for full turn-key EED instrumentation

Applications for RadSens-2

• Electro-explosive device testing
• Static or dynamic temperature measurements conducted under confined space, hazardous and strong
• EMI/RFI environments
• High-speed simultaneous temperature measurements of temperature
• Automotive airbag igniters testing
• Hazardous environments
• Fast transient temperature measurements

---
