Thermoelemente für Datenlogger
Zubehör für die Datenlogger GL220, GL820, GL980, GL2000 GL7000 und MT100
Allgemeine Informationen
TCK-401301-5E – Thermocouple K-type
Key features TCK-401301-5E
- Thermocouple K-Type
- Temperature range: -75 to +250 °C
- Stranded thermocouple wires, 0.2 mm Diameter with PTFA insulating sleeve
- Cable length: 2m

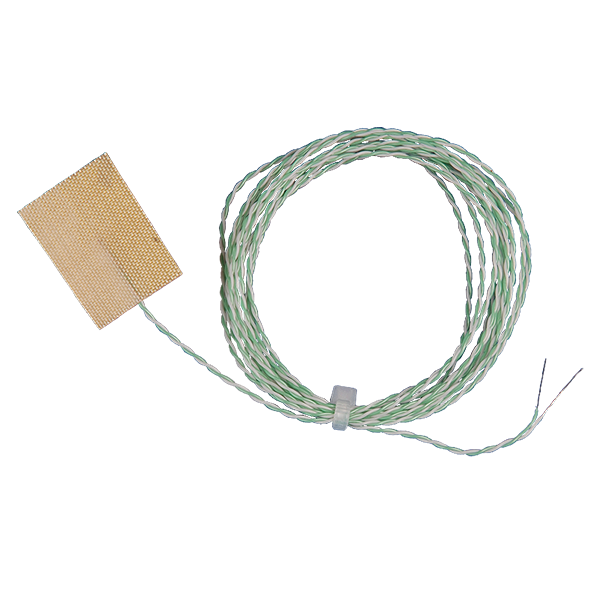

TCK -401140-5E – Thermocouple K-type with adhesive pad
Ideal for mounting on flat or curved surfaces using a self-adhesive plaster. Thermocouple made of thermo-wires bonded with a self-adhesive plaster made of glass silk with PTFE-impregnation.
Key features TCK -401140-5E
- Thermocouple K-Type
- Temperature range: -50 to +250 °C
- Patch size: 25 mm x 20 mm Stranded thermo-wires (wire diameter: Ø 0.2 mm)
- PTFE insulation
- Cable length: 2m
RIC-410 – Rod-shaped thermocouple K-type
Key features RIC-410
- Thermocouple K-Type
- Temperature range: -100 to +300 °C
- Accuracy: Class 1 (± 1,5 °C)
- Patch size: 25 mm x 20 mm
- Cable length: 1.1 m
- For liquids and also for semi-solid materials
RIC-420 – Thermocouple K-type
Key features RIC-420
- Thermocouple K-type
- Temperature range: -30 to +400 °C
- Accuracy: Class 2 (± 2,5 °C)
- Cable length: 1.1 m
- For solid surfaces
RIC-430 – L-shaped Thermocouple K-type
Key features RIC-430
- Thermocouple K-type
- Temperature range: -30 to +600 °C
- Accuracy: Class 2 (± 2,5 °C)
- Cable length: 1.1 m For solid surfaces
TCT-401304-5E – Thermocouple T-type
Simple thermocouple type T for fast responses; free conductor ends; Length 2 m. Ideal for low temperature applications.
Key features TCT-401304-5E
- Thermocouple T-type
- Temperature range: -75 to +250 °C
- Stranded thermo-wires, 0.2 mm diameter with PTFA insulation
- Cable length: 2 m
TCT-401307-5E – Thermocouple J-type
Simple thermocouple type J for fast responses; free conductor ends; Length 2 m. Ideal for low temperature applications.
Key features TCT-401307-5E
- Thermocouple J-type
- Temperature range: -75 to +250 °C
- Stranded thermo-wires, 0.2 mm diameter with PTFA insulation
- Cable length: 2 m
TCT-401310-5E – Thermocouple N-type
Simple thermocouple type N for fast responses; free conductor ends; Length 2 m. Ideal for low temperature applications.
Key features TCT-401310-5E
- Thermocouple N-type
- Temperature range: -75 to +250 °C
- Stranded thermo-wires, 0.2 mm diameter with PTFA insulation
- Cable length: 2 m
