Eigenschaften

Measurement range 100 to 27.000 Nm
Max shaft speed 15.000 rpm
Non-linearity 0.05 %
Output signal
- Voltage (selectable) ±5 V, ±10 V, 2.5 V ±2.5 V
- Frequency (selectable) 60 kHz ±20 kHz, 60 kHz ±30 kHz, 10 kHz ±5kHz
Current 4 … 20 mA
Supply voltage 12 VDC

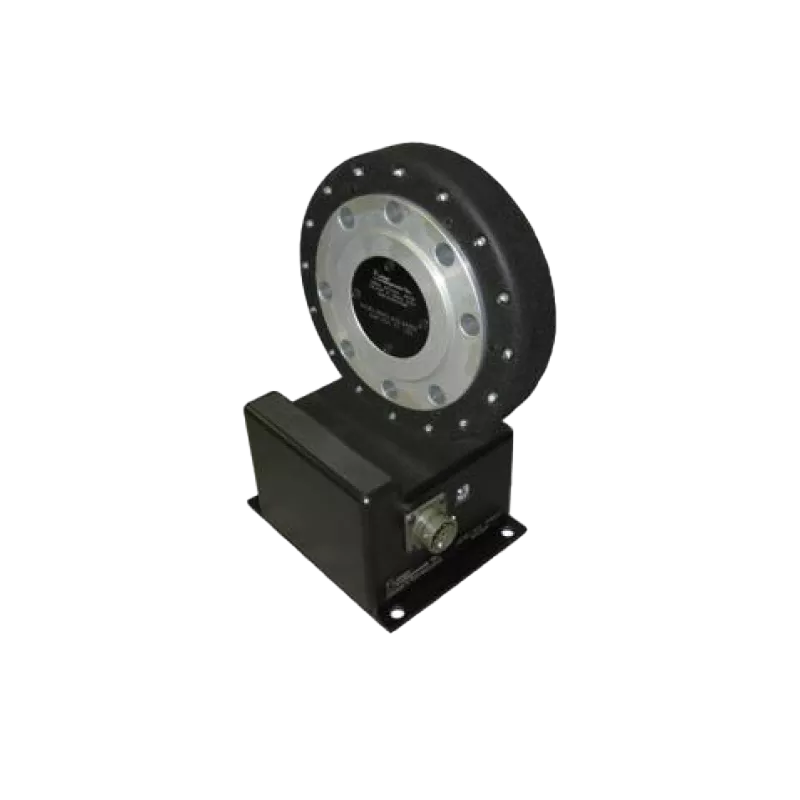

About the 90415 IRT Rotating Torque Sensor

The 90415 IRT (infrared rotating torque) sensor is based on our earlier IR model, 01251, and now includes a dual signal output featuring one analog signal (+/-5V, +/-10V, 2.5 +/-2.5V or 4-20mA) and a frequency output (10kHz +/-5kHz, 60kHz +/-20kHz, or 60kHz +/-30kHz). All setup and configuration settings are completed through a USB based GUI package and features selectable outputs, filter settings and range settings. This sensor is designed for applications such as dynamometers and test stands where a high performance, high noise immunity, and non-contact torque measurement is required.

The rotating electronics of sensor are powered inductively. The rectified, regulated voltage is then sent to a strain gage bridge which senses applied torque. The signal is converted on-board the rotating torque sensor into digital format which is transmitted back to the base unit via IR diodes and receivers. Once captured by the receiver base, it is processed and converted back to the desired signal output.

Additional features 90415 IRT

Voltage, current and frequency signal outputs – GUI selectable
No bearings or moving parts
On-board shunt calibration
Increased gap tolerance for the base unit
Signal interrupt indication
Single piece sensing element
High immunity to signal noise
No brush induced signal interference
High operating RPM
Custom flange configurations available
Selectable digital filters down to 1Hz
No pots or dip switches
Software utility via USB interface
Software allows for real-time data recording
Selectable output ranges

Options

Dual Range Outputs
On-board Temperature Inputs
Speed Measurement
Torque and Thrust Measurement

Benötigen Sie dieses Produkt für Ihr Projekt?

Fordern Sie jetzt ein unverbindliches Angebot an oder senden Sie uns Ihre Kontaktdaten für eine unverbindliche und kostenfreie Beratung. Unsere Vertriebsingenieure setzen sich so schnell wie möglich mit Ihnen in Verbindung.

Kontakt

Produkt Downloads

90415 irt rotating torque sensor en

Sprechen Sie mit unseren Experten

Nicht das richtige Produkt? Wir bieten Standard-Sensoren, helfen Ihnen aber auch gerne mit einem maßgeschneiderten Aufnehmer oder einer kompletten Messlösung weiter. Kontaktieren Sie uns einfach für eine kostenlose Beratung oder einen Kostenvoranschlag.

Kontakt

Technische Spezifikationen

Spezifikationen	Wert
Accuracy	0.01 %
Accuracy	0.01 %
Accuracy	0.05 % FS
Analog output current	4 - 20 mA [12 VDC]
Analog output voltage (selectable)	±5 V, ±10 V, 2.5 V ±2.5 V
Compensated temperature	+20 - +70 °C
Error relay contact rating	500 mA, 24 VDC max.
Error relay contact type	SPDT close to error
External shunt inputs (3)	5 VDC @ 2mA to 24 VDC @ 12 mA
Filter	4-pole Butterworth low pass @ 1000 Hz
Frequency output (selectable)	60 kHz ±20 kHz, 60 kHz ±30 kHz, 10 kHz ±5kHz
Full-scale ranges	1 k to 240 kin lbs (100 Nm to 27 kNm)
Maximum rpm	15000
Power input	12 VDC ±5 % @ 4 A (120 VAC to 12 VDC @ 4A power supply is included)
Power input	Provided by base
Resolution	16 bits
Resolution	16 bits
Sample rate	5000 samples/second
Temperature drift	0.005 %/K max.
Temperature drift	0.005 %/K max.
Temperature effect on span	0.0035 % of rdg./°F
Temperature effect on zero	0.0035 % of FS/°F
Temperature range	-20 - +70 °C
Temperature range	-20 - +85 °C
Useable temperature	-20 - +70 °C
