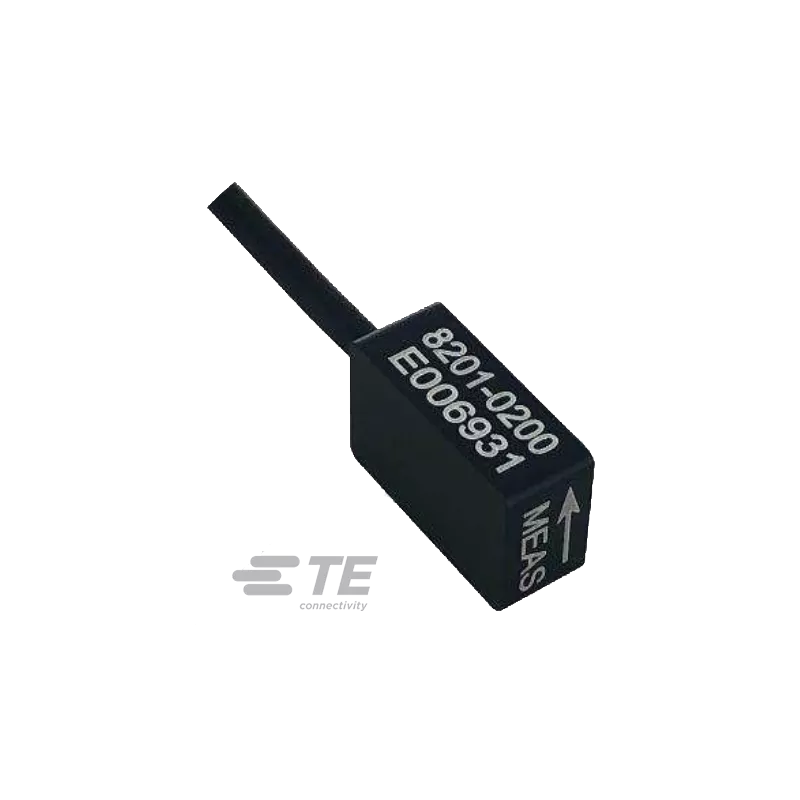

8201 Standard-Vibrationssensor

---

Eigenschaften

• Kostengünstig
• Plug-and-Play-Vibrationsaufnehmer
• Für allgemeine Anwendungen
• Eine Messrichtung
• 3,0 bis 5,5Vdc Versorgungsspannung
• Eloxiertes Aluminiumgehäuse

---

About the 8201 Condition Monitoring Accelerometer

The Model 8201 is a low cost, plug & play accelerometer designed for condition monitoring purpose vibration measurements. The accelerometer is available in ±40g or ±160g range and provides a flat frequency response up to >6kHz.  Featuring stable piezo-ceramic crystals in shear mode, the accelerometer incorporates full power and signal conditioning and is offered in two measurement direction options (X or Z axis).



Key features 8201

• One Measurement Directions
• 3.0 to 5.5Vdc Excitation Voltage
• Anodized Aluminum Housing
• Piezo-Ceramic Crystal, Shear Mode
• -40° to +125°C Operating Range

Applications 8201

• Machine Health Monitoring
• Predictive Maintenance Installations
• Condition Monitoring, Iot
• Impact & Shock Monitoring
• Bearing Installations

---
