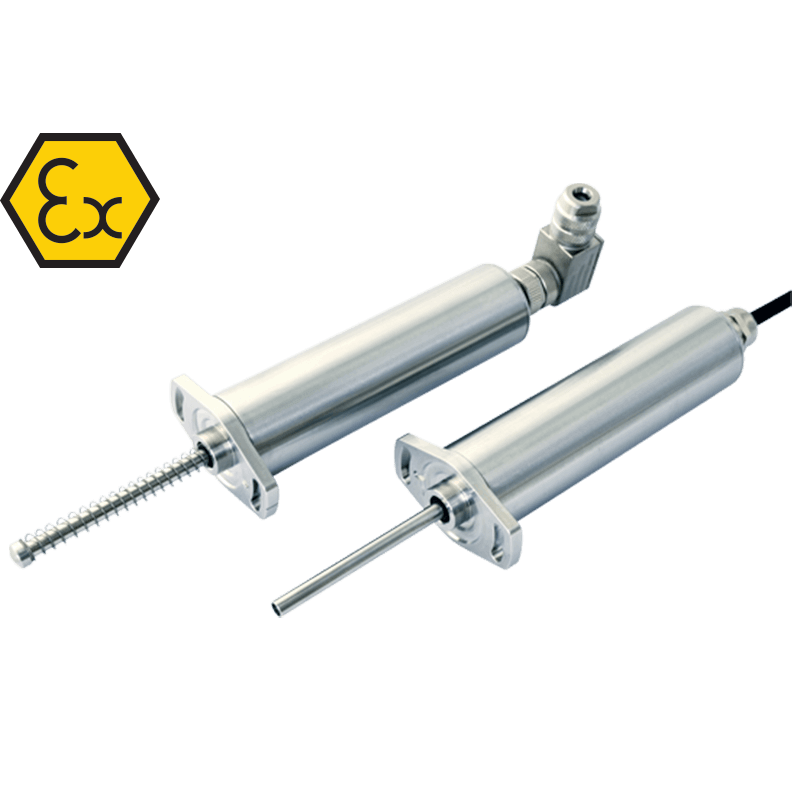

E133 induktiver Wegaufnehmer
Designed for a wide range of industrial applications
Eigenschaften
- Short body length
- Sealing to IP67
- Travel set to customer’s requirement
- Accurate, stable, durable and reliable
- Intrinsically safe for Gas and Dust to: Ex II 1GD
- Non-contacting inductive technology to eliminate wear
About the E133 Linear Inductive Position Sensor
The E133 is designed for a wide range of industrial applications and is ideal for OEMs seeking good sensor performance in situations where a shortbodied sensor is required for operation in hazardous areas
The unit is compact and space-efficient, being responsive along almost its entire length.
Overall performance, repeatability and stability are outstanding over a wide temperature range. It provides a linear output proportional to displacement. Each unit is supplied with the output calibrated to the travel required by the customer, from 51mm to 100mm and with full EMC protection built in.
It is easy to install and set up, the stainless steel mounting flange has two 4.5mm by 30 degree wide slots on a 48mm pitch. The stainless steel plunger can be supplied free or captive, with female M4 thread, or springloaded with a ball end. Environmental sealing is to IP67.
As a leading supplier of linear, rotary, tilt and intrinsically safe position sensors, Althen has the expertise to supply a sensor to suit a wide variety of applications.
Benötigen Sie dieses Produkt für Ihr Projekt?
Fordern Sie jetzt ein unverbindliches Angebot an oder senden Sie uns Ihre Kontaktdaten für eine unverbindliche und kostenfreie Beratung. Unsere Vertriebsingenieure setzen sich so schnell wie möglich mit Ihnen in Verbindung.
Sprechen Sie mit unseren Experten
Nicht das richtige Produkt? Wir bieten Standard-Sensoren, helfen Ihnen aber auch gerne mit einem maßgeschneiderten Aufnehmer oder einer kompletten Messlösung weiter. Kontaktieren Sie uns einfach für eine kostenlose Beratung oder einen Kostenvoranschlag.
KontaktTechnische Spezifikationen
| Spezifikationen | Wert |
|---|---|
| Body diameter | 35mm |
| Frequency response | >10KHz (-3dB) |
| Independent linearity | ±0.1% to ±0.25% |
| Measurement range | Up to 100mm |
| Output signal | 0.5-4.5VDC ratiometric |
| Sealing | IP67 |
