X133 induktiver Wegaufnehmer

---

Eigenschaften

• Intrinsically safe for Gas to: Ex II 1G
• Sealing to IP65/IP67 as required
• Short body length
• Travel set to customer’s requirement
• Accurate, stable, durable and reliable
• Non-contacting inductive technology to eliminate wear

---

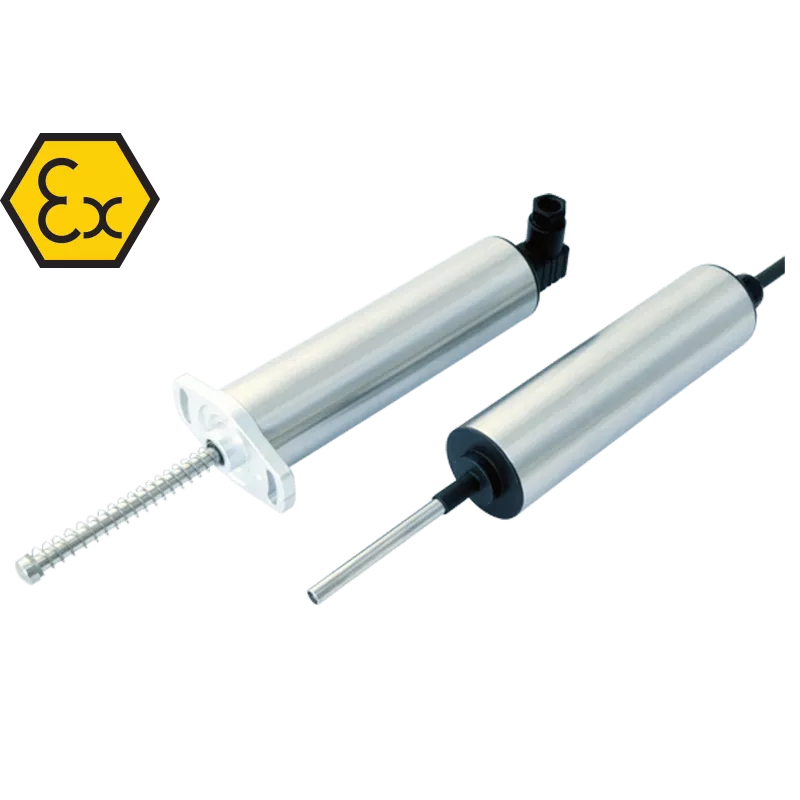

About the X133 Linear Inductive Position Sensor

The X133 is designed for a wide range of industrial applications and is ideal for OEMs seeking good sensor performance in situations where a shortbodied sensor is required for operation in hazardous areas.

The incorperated electronics system is ATEX / IECEx approved for use in potentially explosive gas/vapour atmospheres.

The unit is compact and space-efficient, being responsive along almost its entire length.

Overall performance, repeatability and stability are outstanding over a wide temperature range. It provides a linear output proportional to displacement. Each unit is supplied with the output calibrated to the travel required by the customer, from 51mm to 100mm and with full EMC protection built in.

The sensor has a rugged stainless steel body and plunger. It is easy to install and set up, mounting options include flange and body clamps. The plunger can be supplied free or captive, with female M4 thread, or spring-loaded with a ball end. Environmental sealing is to IP65 or IP67 depending on selected options.

As a leading supplier of linear, rotary, tilt and intrinsically safe position sensors, Althen has the expertise to supply a sensor to suit a wide variety of applications.

---
