HSTA-Serie LVDT-Wegaufnehmer

---

Eigenschaften

• Ranges of ±0.05" to ±10" [±1.25 mm to ±250 mm]
• 400°F (200°C) operating temperature
• Environmentally sealed to IEC IP-68
• Non-linearity less than ±0.25% of FRO
• Through-bore design (HSTAR)
• Mating plug for connector included

---

About the HSTA-Series High temperature hermetically sealed AC-LVDT position sensor

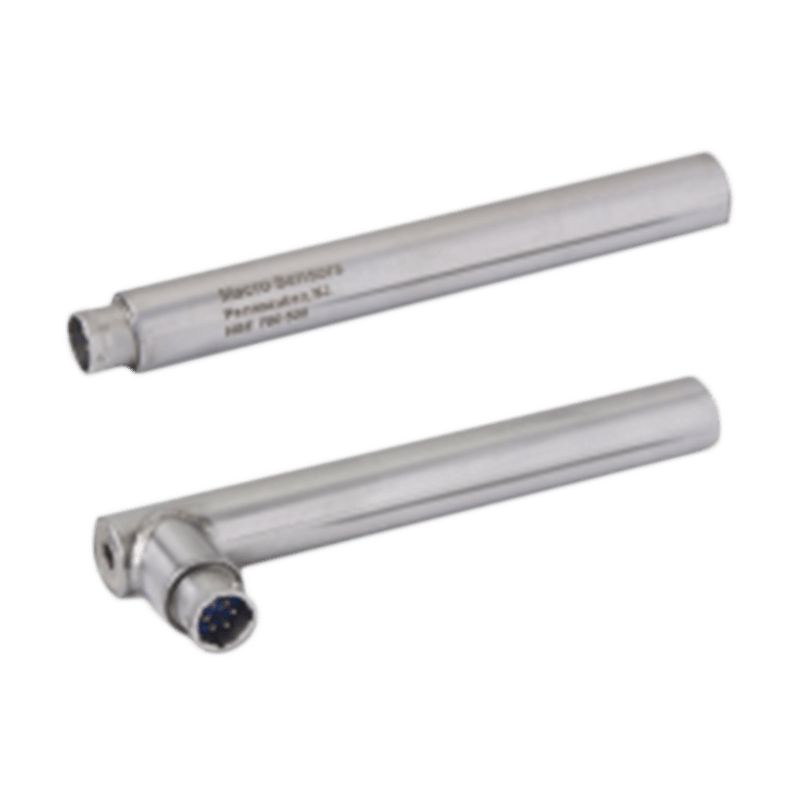

The HSTA and HSTAR 750 Series of 3/4 inch (19 mm) diameter AC-operated LVDTs are designed for a wide range of position measurement applications. These are rugged hermetically sealed sensors, constructed entirely of stainless steel, and intended for use at high temperatures (400°F). The coil windings are sealed against hostile environments to IEC standard IP-68 and electrical termination is through a sealed axial (HSTA) or radial (HSTAR) connector. The radial connector offers two important benefits. First, it results in a through-bore design, which permits access to either or both ends of the LVDT’s core for better mechanical support and core guidance, and easier cleanout in
dusty or dirty locations. The second advantage of the radial connector is shorter installed length compared to units of the same range with axial connectors. The mating connector plug is supplied with the unit.

Available in ranges of ±0.050 inch (±1.25 mm) to ±10.0 inches (±250 mm), HSTA/HSTAR 750 Series sensors feature the high resolution, excellent repeatability, and low hysteresis associated with LVDT technology, as well as the highest sensitivity consistent with good linearity. The maximum linearity error for any of these sensors is ±0.25% of full range output using a statistically bestfit straight line derived by the least squares method.

Applications for HSTA-Series

• Beam scraper positioning feedback
• Hydraulic cylinder position
• Steam valve positioning
• Power generation applications
• Corrosive environments
