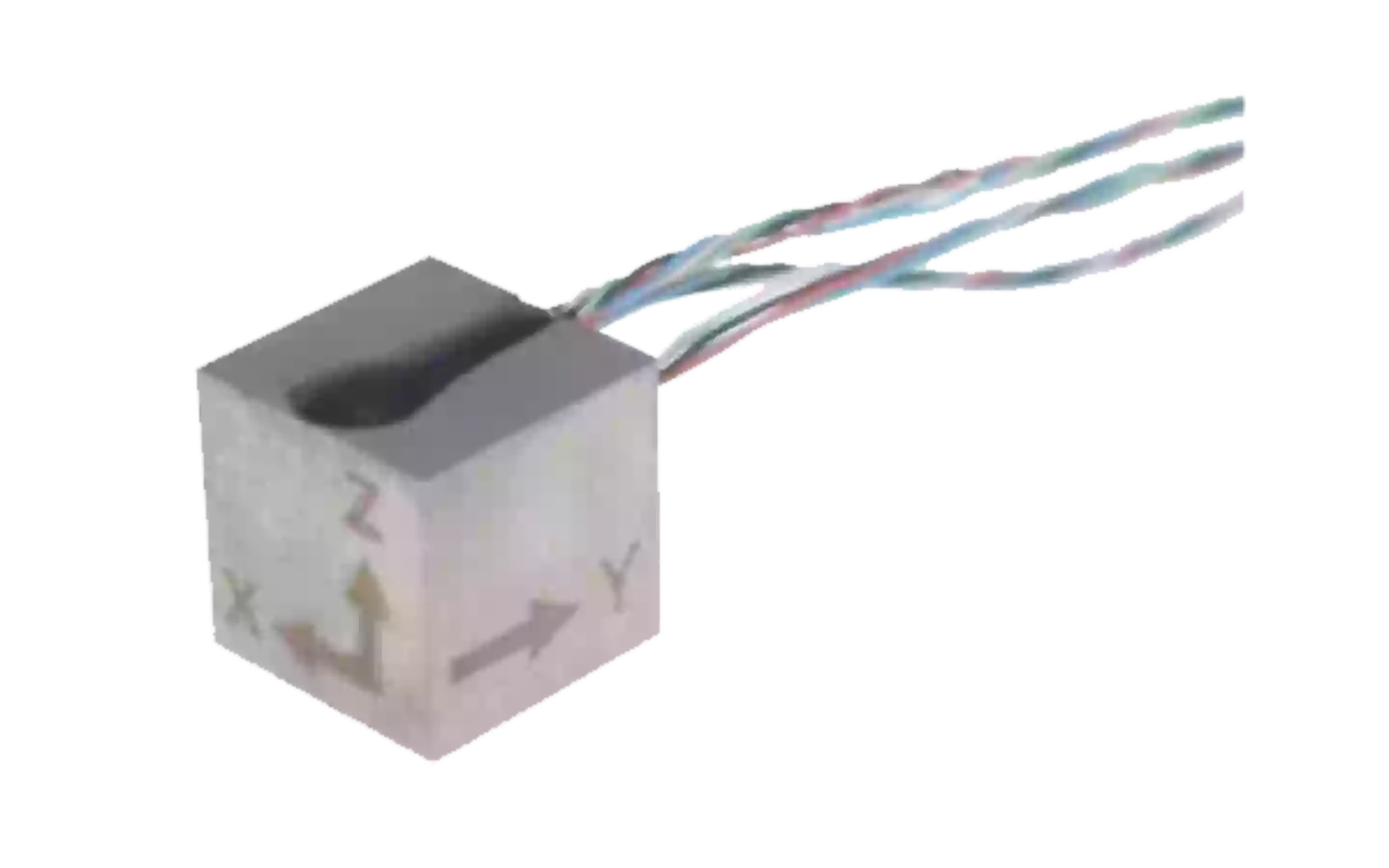

EGAXT3 Mini Critically Damped Triaxial Accelerometer
3-axial acceleration sensor in miniature design with an overload limit of 10,000g for all 3 axes
About the EGAXT3 Mini Critically Damped Triaxial Accelerometer
The Model EGAXT3 miniature accelerometer combines a damping ratio of 0.7 (nominal) with built-in over-range stops that protect the unit against 10,000g shocks. This is ideal for applications which may experience rough handling or in situations where the accelerometer must survive a high initial overload in order to make a low g measurement.
The model EGAXT3 features a common piezo-resistive Wheatstone Bridge design with a mV output. The accelerometer incorporates an inline temperature compensation module which ensures accurate output over full operating temperature range
Key features EGAXT3
- Miniature Triaxial, Low Weight
- Static and Dynamic Measurement
- Frequency Response from DC to 3000 Hz
- ±1% Non-Linearity
- -40°C to +120°C Operating Range
- 10,000g Over-range Protection
Applications EGAXT3
- Flight Test & Control
- Launch Vehicles
- Drop Testing
- Impact & Shock Testing
- Munitions Testing
- Pile Driving
- Harsh Environments
Avez-vous besoin de ce capteur pour votre prochain projet?
Demandez un devis sans engagement ou envoyez-nous vos coordonnées pour une consultation gratuite et sans engagement. Nos ingénieurs commerciaux vous contacteront dans un délai maximum de 1 à 2 jours ouvrables.
Téléchargements de produits
Parlez à nos experts
Vous ne trouvez pas exactement ce que vous cherchez ? Nous proposons des capteurs et des systèmes de mesure standard, mais nous pouvons également vous aider à concevoir un capteur sur mesure ou une solution de mesure complète. N'hésitez pas à nous contacter pour obtenir des conseils ou un devis.
Parler à un expertSpécifications techniques
| Spécifications | Valeur |
|---|---|
| Cable | 4x #34 AWG PTFE Leads, 24 inch, each axis |
| Case material | Stainless Steel |
| Compensated temperature | 20 to 80°C (70 to 170°F) |
| Damping ratio | 0.7 |
| Frequency response | 0-250 to 0-3000 Hz |
| Humidity | Epoxy Sealed, IP61 |
| Measurement range | ±5 g / ±10 g / ±25 g / ±50 g / ±100 g / ±250 g / ±500 g / ±1000 g / ±2500 g |
| Natural frequency | 500 - 6000 Hz |
| Non-linearity | ±1% |
| Operating temperature | - 40 to 120°C ( - 40 to 250°F) |
| Output [supply voltage] | ±0.1 V [2 – 15 VDC] |
| Sensitivity | 5.2 - 11.3 mV/g | 4.2 - 9.0 mV/g | 2.1 - 4.5 mV/g | 1.57 - 3.38 mV/g | 1.05 - 2.25 mV/g | 0.52 - 1.13 mV/g | 0.35 - 0.75 mV/g | 0.17 - 0.38 mV/g | 0.07 - 0.15 mV/g |
| Shock limit | 2000 g / 2000 g / 5000 g / 5000 g / 10000 g / 10000 g / 10000 g / 10000 g / 10000 g |
| Storage temperature | - 40 to 120°C ( - 40 to 250°F) |
| Weight | <6 g |
| Zero acceleration output | ±15 mV |
