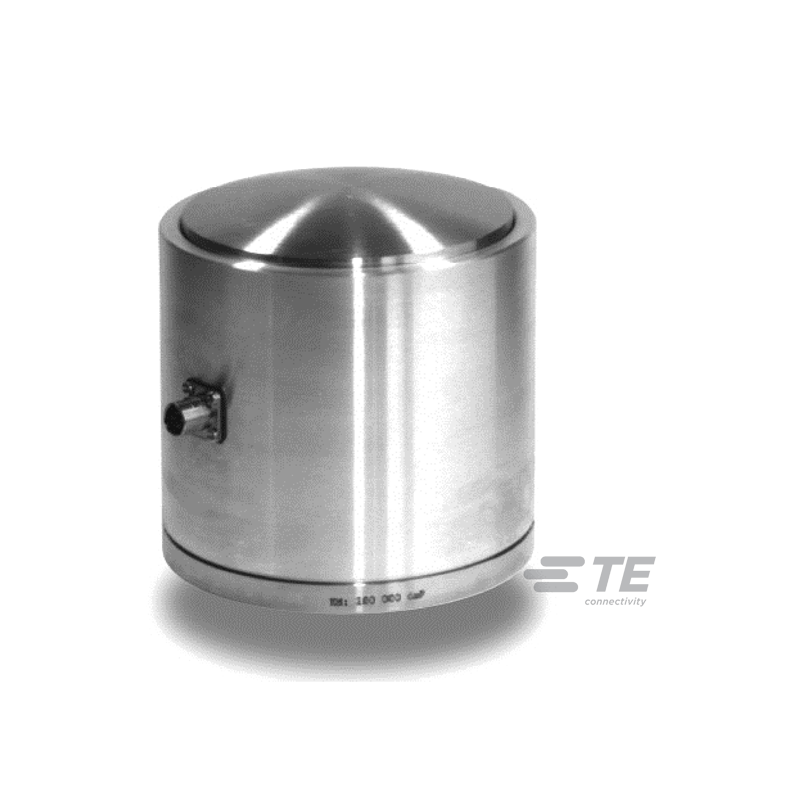

FN2420 Cylindrical Force Sensor
For use in many hostile environments
Caractéristiques principales
- Full Scale Range : from 0-20 to 0-5000 kN (0-4 to 0- 1000 klbf)
- Linearity : <0.1% F.S.
- For Compression Use (e.g. calibration presses)
- High Level Output Model with Integrated Amplifier
- Optional: Load Button
- Very high stiffness
About the FN2420 Cylindrical Force Sensor
The FN2420 is a high accuracy compression load cell often used in applications involving calibration presses. It comes with many options, including a concave loading fixture and an integrated amplifier for high-level output. The FN2420's design and optional concave loading fixture minimize transverse effects. Constructed in stainless steel, the sensor is suitable for use in many hostile environments and can be customized for increased protection.
To meet your needs we also offer complete turnkey systems. The matched components (sensor, power, amplifier and digital display) are formatted, calibrated and ready for immediate use.
Applications for FN2420
- Process Control Equipment
- Weighing Calibration Tool
- Robotics and Effectors
- Laboratory and Research
- Calibration Presses
Avez-vous besoin de ce capteur pour votre prochain projet?
Demandez un devis sans engagement ou envoyez-nous vos coordonnées pour une consultation gratuite et sans engagement. Nos ingénieurs commerciaux vous contacteront dans un délai maximum de 1 à 2 jours ouvrables.
Téléchargements de produits
Parlez à nos experts
Vous ne trouvez pas exactement ce que vous cherchez ? Nous proposons des capteurs et des systèmes de mesure standard, mais nous pouvons également vous aider à concevoir un capteur sur mesure ou une solution de mesure complète. N'hésitez pas à nous contacter pour obtenir des conseils ou un devis.
Parler à un expertSpécifications techniques
| Spécifications | Valeur |
|---|---|
| Accuracy | ±.25% of F.S. |
| Full scale range | 20kN, 50kN, 100kN, 200kN, 500kN, 1MN, 2MN, 3MN, 5MN |
| Linearity | 0.1% F.S. |
| Load direction | Compression |
| Operating temperature | -20 – 80°C |
| Output | ±1.5mV/V, ±2V, ±5V |
| Protection | IP50, IP65, IP67, IP68 |
