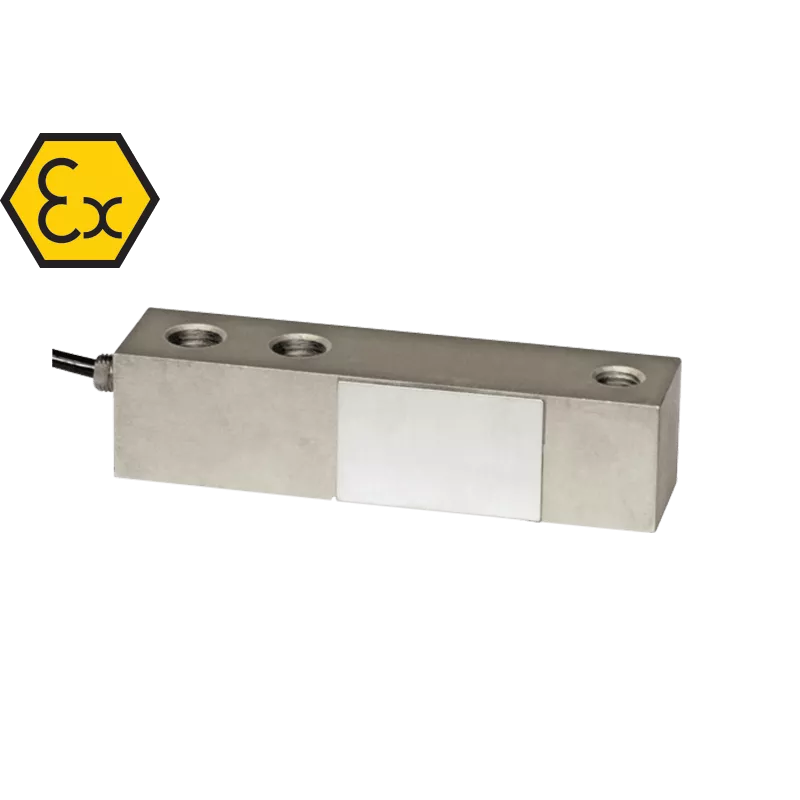

FTKL Shear Beam Load Cell
Accuracy class C4/C5 (OIML R60)
Caractéristiques principales
- Measuring ranges: 500, 1000, 1500, 2000, 3000, 5000kg
- For tensile and compressive loads
- Special steel construction
- Combined error: < +/- 0.02% (0.017% C4; 0.014% C5)
- Output signal normalized: 3 mV/V ±0.1%
General information
The FTKL shear beam transducer is suitable for force and weight measurements in tension and compression. Due to its internal design it is relatively insensitive to lateral loads. The transducer is made of high-strength tool steel and is splash-proof (tight IP67).
For installation, it is essential to use fasteners such as screws, bolts, etc. made of high-strength steel. For screws, the thread length used must be at least equal to the thread diameter. In addition, the mechanical load limit of the material must be taken into account when designing the weighing equipment, taking safety reserves into account.
Properties
- Measuring ranges: 500, 1000, 1500, 2000, 3000, 5000kg
- For tensile/compressive load
- Special steel construction
- Combined error: < +/- 0.02% (0.017% C4; 0.014% C5)
- Output signal normalized: 3 mV/V ±0.1%
- Supply voltage: 18V
- Protection class: IP67
Avez-vous besoin de ce capteur pour votre prochain projet?
Demandez un devis sans engagement ou envoyez-nous vos coordonnées pour une consultation gratuite et sans engagement. Nos ingénieurs commerciaux vous contacteront dans un délai maximum de 1 à 2 jours ouvrables.
Téléchargements de produits
Parlez à nos experts
Vous ne trouvez pas exactement ce que vous cherchez ? Nous proposons des capteurs et des systèmes de mesure standard, mais nous pouvons également vous aider à concevoir un capteur sur mesure ou une solution de mesure complète. N'hésitez pas à nous contacter pour obtenir des conseils ou un devis.
Parler à un expertSpécifications techniques
| Spécifications | Valeur |
|---|---|
| Combined error | ≤±0.02% | ≤±0.017% | ≤±0.014% |
| Compensated temperature range | -10 °C / +40 °C |
| Creep at nominal load in 30 minutes | 0.02% |
| Deflection at nominal load | 0.4 mm |
| Input resistance | 350 Ω ±3.5 |
| Insulation resistance | ≥5000 MΩ |
| Material | Special steel |
| Max supply voltage without damage | 18 V |
| Minimum verification interval (v min) | E max / 10000 | E max / 15000 | E max / 20000 | E max / 18000 |
| Nominal load (e max) | 500 - 1000 - 1500 kg, 2000 - 3000 - 5000 kg | 500 - 1000 kg, 1500 - 2000 kg | 3000 - 5000 kg |
| Oiml r60 accuracy class • verification intervals | C3 • 3000 | C4 • 4000 | C5 • 5000 |
| Operating temperature range | -35 °C / +65 °C |
| Output resistance | 350 Ω ±3.5 |
| Protection class | IP67 |
| Rated output | 3 mV/V ±0.1% |
| Safe overload (% of full scale) | 150% |
| Temperature effect on span | 0.0014% °C |
| Temperature effect on zero | 0.0018% °C |
| Ultimate overload (% of full scale) | 300% |
| Zero balance | ≤±1% |
