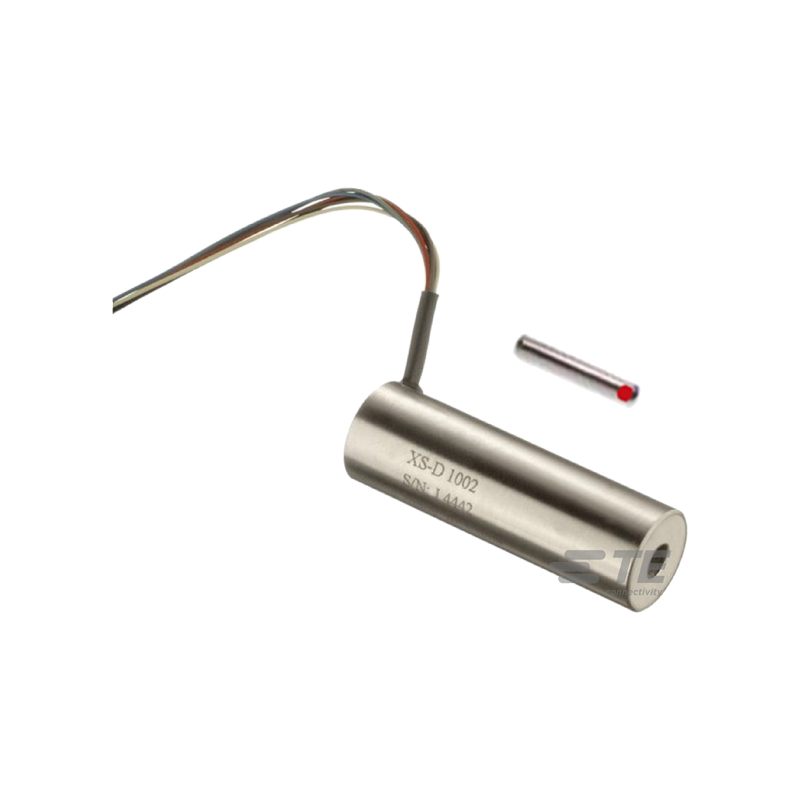

XS-D Series LVDT Position Sensor

---

Caractéristiques principales

• Compact AC-operated model
• Superior stroke-to-length ratio
• Stroke ranges from ±1 to ±10 inches
• Smooth transfer function
• AISI 400 Series stainless steel housing
• Calibration certificate supplied with all units

---

About the XS-D series

The XS-D Series of LVDTs are specifically designed for measuring relatively large displacements where installation space is limited. The XS-D Series have a substantially greater displacement range than standard LVDTs but without the accompanying increase in body length and weight. Using special coil winding techniques, the XS-D permits linear range measurements of up to 80% of the housing length.

Compact, shock and vibration tolerant, and featuring infinite resolution and repeatability, the XS-D Series are the perfect choice for servo mechanisms, linear potentiometer replacement, or wherever precise displacement measurements are required in space restrictive applications. All models are supplied with a calibration certificate, and are available with either an imperial or metric threaded core. The XS-D Series are compatible with all Althen LVDT signal conditioners, controllers and readouts.

Applications for XS-D Series

• Servo mechanisms
• Hydraulic actuators
• Linear potentiometer replacement
• Space restrictive installations
• Weight sensitive applications

---
