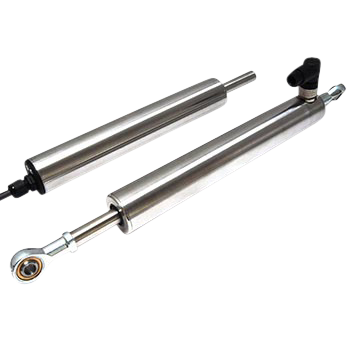

P111 Linear Inductive Position Sensor
LIPS P111 rugged linear position sensor
Caractéristiques principales
- Compact and self-contained
- Travel set to customer’s requirement
- High durability and reliability
- High accuracy and stability
- Sealing to IP65/IP67 as required
- Non-contacting inductive technology to eliminate wear
About the P111 - Rugged stand-alone Linear Inductive Position Sensor
Our P111 LIPS (Linear Inductive Position Sensor) is a heavy-duty version of the P101 sensor with a stronger 12.7mm push rod, recommended for applications where vibration is an issue or there is a need for longer travel sensors, mounted horizontally, and supported between rod eyes.
It remains an affordable, durable, high-accuracy position sensor designed for industrial and scientific feedback applications. The unit is highly compact and spaceefficient, being responsive along almost its entire length.
The P111 provides a linear output proportional to displacement. Each sensor is supplied with the output calibrated to the travel required by the customer, from 50 to 600mm and with full EMC protection built in.
The sensor is very robust, the body and push rod being made of stainless steel for long service life and environmental resistance. It is particularly suitable for OEMs seeking good sensor performance for arduous applications such as industrial machinery where cost is important. Overall performance, repeatability and stability are outstanding over a wide temperature range.
The sensor is easy to install with mounting options including M8 rod eye bearings and body clamps. The push rod can be supplied free or captive, with female M8 thread, an M8 rod eye, or dome end, Captive push rods can be sprung loaded, in either direction, on sensors up to 250mm of travel.
The P111 also offers a wide range of mechanical and electrical options, environmental sealing is to IP65 or IP67, depending on selected cable or connector options.
As a leading supplier of linear, rotary, tilt and intrinsically safe position sensors, Althen has the expertise to supply a sensor to suit a wide variety of applications.
Avez-vous besoin de ce capteur pour votre prochain projet?
Demandez un devis sans engagement ou envoyez-nous vos coordonnées pour une consultation gratuite et sans engagement. Nos ingénieurs commerciaux vous contacteront dans un délai maximum de 1 à 2 jours ouvrables.
Téléchargements de produits
Parlez à nos experts
Vous ne trouvez pas exactement ce que vous cherchez ? Nous proposons des capteurs et des systèmes de mesure standard, mais nous pouvons également vous aider à concevoir un capteur sur mesure ou une solution de mesure complète. N'hésitez pas à nous contacter pour obtenir des conseils ou un devis.
Parler à un expertSpécifications techniques
Spécifications | Valeur |
---|---|
Frequency response | 10kHz or 300Hz |
Independent linearity | ±0.25% to ±0.5% |
Measurement range | Up to 800mm |
Sealing | IP65 or IP67 |
