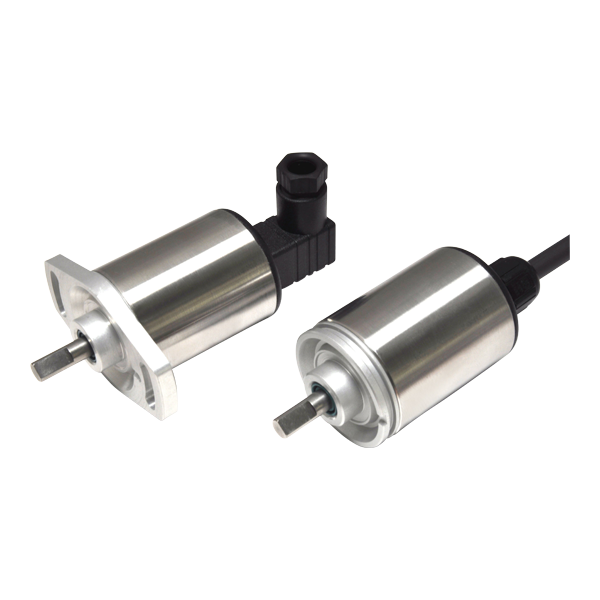

P502 Rotary Inductive Position Sensor

---

Caractéristiques principales

• Non-contacting inductive technology to eliminate wear
• Angle set to customer’s requirement
• Compact, durable and reliable
• High accuracy and stability
• Sealing to IP65/IP67 as required

---

About the P502 Rotary Inductive Position Sensor

The P502 is a small angle, affordable, durable, high-accuracy rotary sensor designed for industrial and scientific feedback applications, like the P500, but with smaller angles of deflection for better resolution. The P502 provides a linear output proportional with angle of rotation. Each unit is supplied with the output calibrated to the angle required between 5 and 15 degrees. There is a machined registration mark to identify the calibrated mid point.

It is particularly suitable for OEM's seeking good sensor performance for arduous applications such as industrial machinery where cost is important.

Overall performance, repeatability and stability are outstanding over a wide temperature range. The P502 has a rugged stainless steel body and shaft for long service life and environmental resistance. The mounting flange is anodised aluminum. The sensor is easy to install with flange or servo mounting options, it also offers a wide range of electrical options. Sealing is IP65 or IP67 depending on selected cable or connector options, and full EMC protection built in.

As a leading supplier of linear, rotary, tilt and intrinsically safe position sensors, Althen has the expertise to supply a sensor to suit a wide variety of applications.
