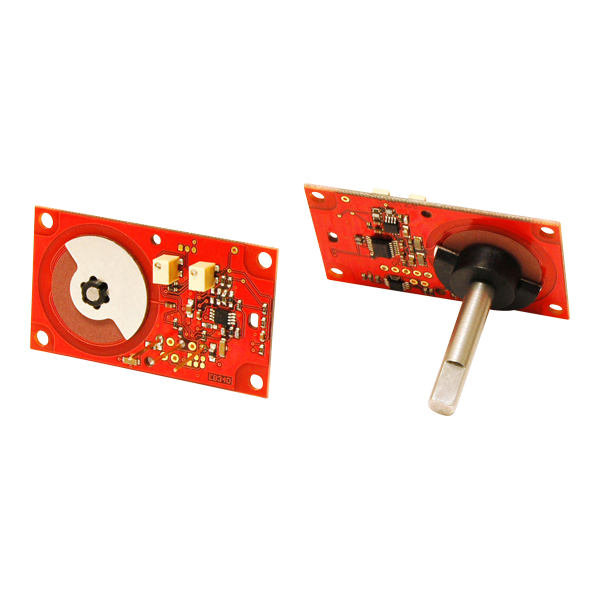

P503 Rotary Inductive Position Sensor

---

Caractéristiques principales

• Non-contacting inductive technology to eliminate wear
• Angle set to customer's requirement
• Compact PCB design, durable and reliable
• High accuracy and stability

---

About the P503 Rotary Inductive Position Sensor

The P503 is a low-cost assembly designed particularly for OEM users.

The sensor is supplied with the output calibrated to the angle required, between 15 and 160 degrees. The P503 provides a linear output proportional with angle of rotation.

With suitable mounting and bearings, overall performance, repeatability and stability are outstanding over a wide temperature range.

This very compact sensor, supplied as a printed circuit board sub-assembly has a range of electrical options. It is ready to mount directly in customer's equipment. Connections to the sensor are made via solder pins.

As a leading supplier of linear, rotary, tilt and intrinsically safe position sensors, Althen has the expertise to supply a sensor to suit a wide a wide variety of applications.
