P505 Rotary Inductive Position Sensor

---

Caractéristiques principales

• Non-contacting inductive technology to eliminate wear
• Angle set to customer’s requirement
• Compact, durable and reliable
• High accuracy and stability
• Sealing to IP67

---

About the P505 Rotary Inductive Position Sensor

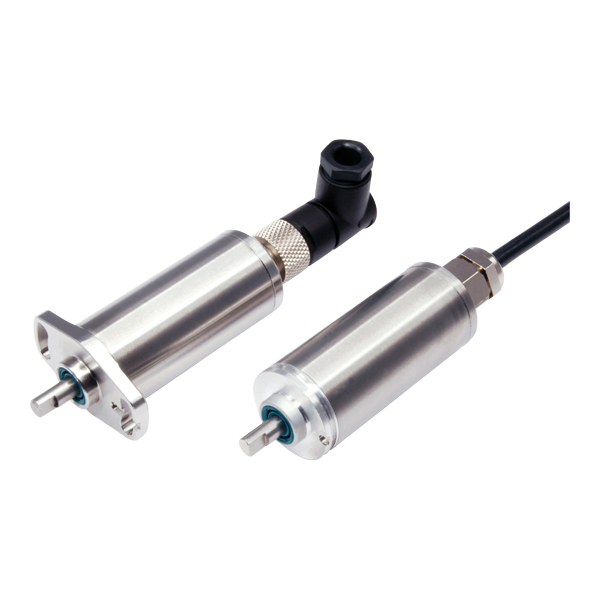

The P505 with its 19mm dia body is a miniature, high accuracy rotary position sensor designed for industrial, automotive and scientific feedback applications. The P505 is supplied with the output calibrated to the angle specified between 15 and 160 degrees. The electronics are all fully integrated, no external signal conditioning is required. The sensor provides a linear output proportional with angle of rotation. There is a small machined registration mark to identify the calibrated mid point.

It is well suited to OEMs where good sensor performance and compact housing is important.

Overall performance, repeatability and stability are outstanding over a wide temperature range. The P505 has a anodised aluminum flange, stainless steel body and shaft for a long service life and excellent environmental resistance. The sensor is easy to install with flange or servo mounting options, it also offers a range of electrical options. Sealing is IP67 and full EMC protection built in.

As a leading supplier of linear, rotary, tilt and intrinsically safe position sensors, Althen has the expertise to supply a sensor to suit a wide variety of applications.
