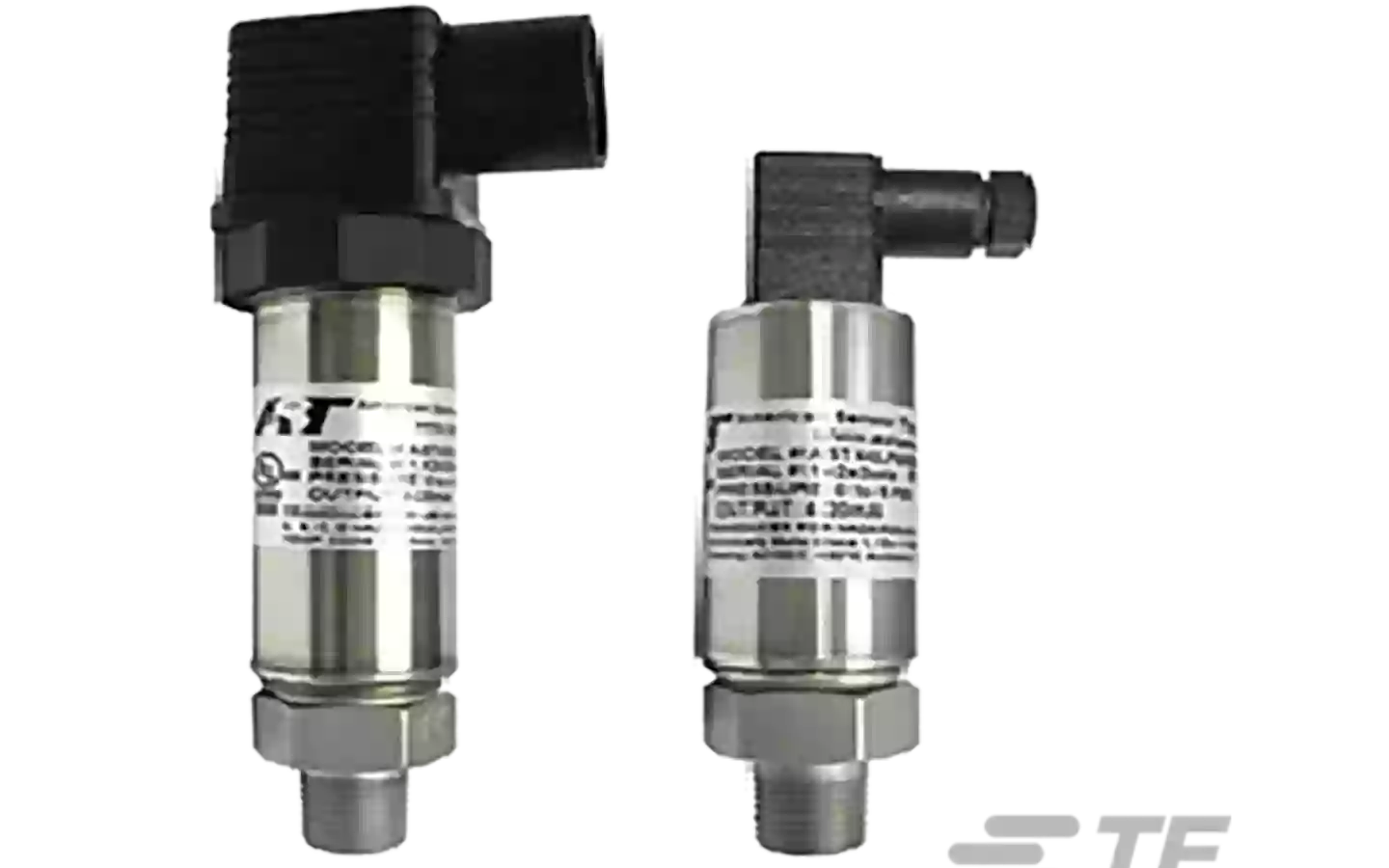

AST44LP Intrinsically Safe Pressure Transducer
Solution for low pressure measurement in intrinsically safe areas
Caractéristiques principales
- High Strength Stainless Steel Construction
- No Internal O-rings
- Wide Operating Temperature
- Pressures from 0-1 to 0-15 PSI
- Low Static and Thermal Errors
- Unparalleled Price and Performance
- Compatible with Wide Variety of Liquids and Gases
About the AST44LP Intrinsically Safe Pressure Transducer
The AST44LP is a stainless steel pressure transducer with a wide variety of options. With its rugged construction and the best price-to-performance ratio in the industry, the AST44LP is the solution for low pressure measurement in Intrinsically Safe areas.
Additional features AST44LP Intrinsically Safe Pressure Sensor
- Class I Div 1 Intrinsically Safe Groups C, D when installed with an approved barrier
- ATEX / IECEx: Class I Zone 0 Exia IIB T4 Ga (Ta = -40°C to +80°C)
Applications AST44LP
- Industrial OEM Equipment
- HVAC/R Equipment
- Water Management and External Tank Levels
- Control Panels
- Pneumatics and Hydraulic Systems
- Vapor Recovery
- Data Loggers
Avez-vous besoin de ce capteur pour votre prochain projet?
Demandez un devis sans engagement ou envoyez-nous vos coordonnées pour une consultation gratuite et sans engagement. Nos ingénieurs commerciaux vous contacteront dans un délai maximum de 1 à 2 jours ouvrables.
Téléchargements de produits
Parlez à nos experts
Vous ne trouvez pas exactement ce que vous cherchez ? Nous proposons des capteurs et des systèmes de mesure standard, mais nous pouvons également vous aider à concevoir un capteur sur mesure ou une solution de mesure complète. N'hésitez pas à nous contacter pour obtenir des conseils ou un devis.
Parler à un expertSpécifications techniques
| Spécifications | Valeur |
|---|---|
| Accuracy | 0.25% |
| Burst pressure | 5X or 75 PSI (whichever is less) |
| Compensated temperature range | 0 to 55°C |
| Emi/rfi protection | Yes |
| Measurement range | 0 - 70 mbar to 1 bar |
| Operating temperature | -40 to 80°C |
| Output | 4 - 20mA, 1 - 5 VDC, 1 - 6 VDC |
| Over range protection | 2X Rated Pressure, Minimum |
| Pressure type | gauge, absolute, bi-directional |
| Rating | IP66, min |
| Shock | EN 60068-2- 27 |
| Storage | -40 to 100°C |
| Supply voltage | 10 -28 VDC |
| Vibration | EN 60068-2-6, 60068-2-64, and IEC 68-2- 32 |
