SG-AP Strain Gauge Amplifiers

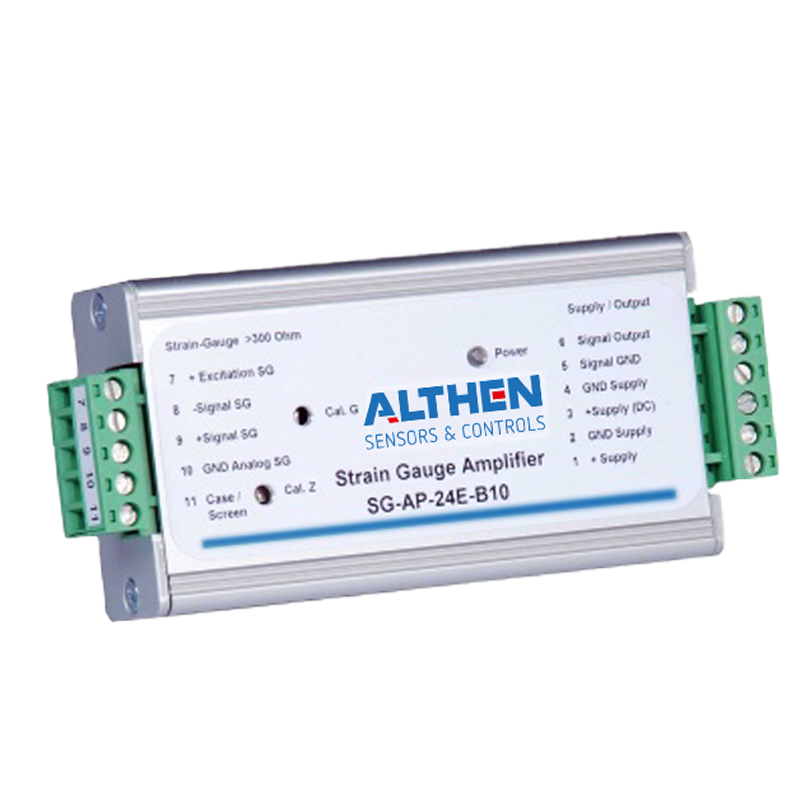

Single Channel Strain Gauge Amplifier with Aluminium Enclosure
About the SG-AP Strain Gauge Amplifiers
The single channel strain gauge measuring amplifier SG-AP allows the supply and signal evaluation of a transducer with a strain gauge full bridge greater than 300 ohms. Input and output are galvanically isolated. The connection is done in 4-wire technology via a pluggable screw clamp terminal block. For further evaluation standard analogue outputs are available. The measuring amplifier is available in 3 versions with different sensitivity. By means of potentiometer for zero and amplification, a calibration correction can be carried out.
Key features SG-AP
- Supply voltage 10 - 18 VDC / 18 - 30 VDC
- Analogue output 0 - 10 V / ±10 V
- Aluminium profile enclosure (IP20)
- Dimensions (W x H x D) 104 x 55 x 30 mm
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Analogue output | 0 - 10 V, ±10 V, max. 1 mA (short-period short-circuit proof) |
| Dimension (b x h x d) | 104 x 55 x 30 mm |
| Electrical connection | Pluggable screw clamp terminal block |
| Enclosure | Aluminium profile enclosure |
| Input resistance | >3 MΩ |
| Isolating proof voltage input to output | 200 V, higher isolated proof voltage on request |
| Limit frequency (-3 db) | Version -GF10Hz: 10 Hz Version, -GF1kHz: 1 kHz |
| Max. input sensitivity | Version -1: 1 mV/V (Range Potentiometer G: 0.5 - 1.5 mV/V) | Version -2: 2 mV/V (Range Potentiometer G: 1.5 - 2.5 mV/V) | Version -3: 3 mV/V (Range Potentiometer G: 2.5 - 3.5 mV/V) |
| Non-linearity | ±0.05 % FSO |
| Number of measuring channels | 1 (full bridge resistance >300 Ω) |
| Power consumption | 2 W |
| Strain gauge excitation supply | 2.5 VDC, 5 VDC, 10 VDC (±2 %, max. 35 mA) |
| Supply voltage | 10 - 18 VDC, 18 - 30 VDC, electronics protected against reversal voltage |
| Temperature, operating | +10 - +50 °C |
| Temperature, storage | -20 - +60 °C |
| Weight | 140 g |
