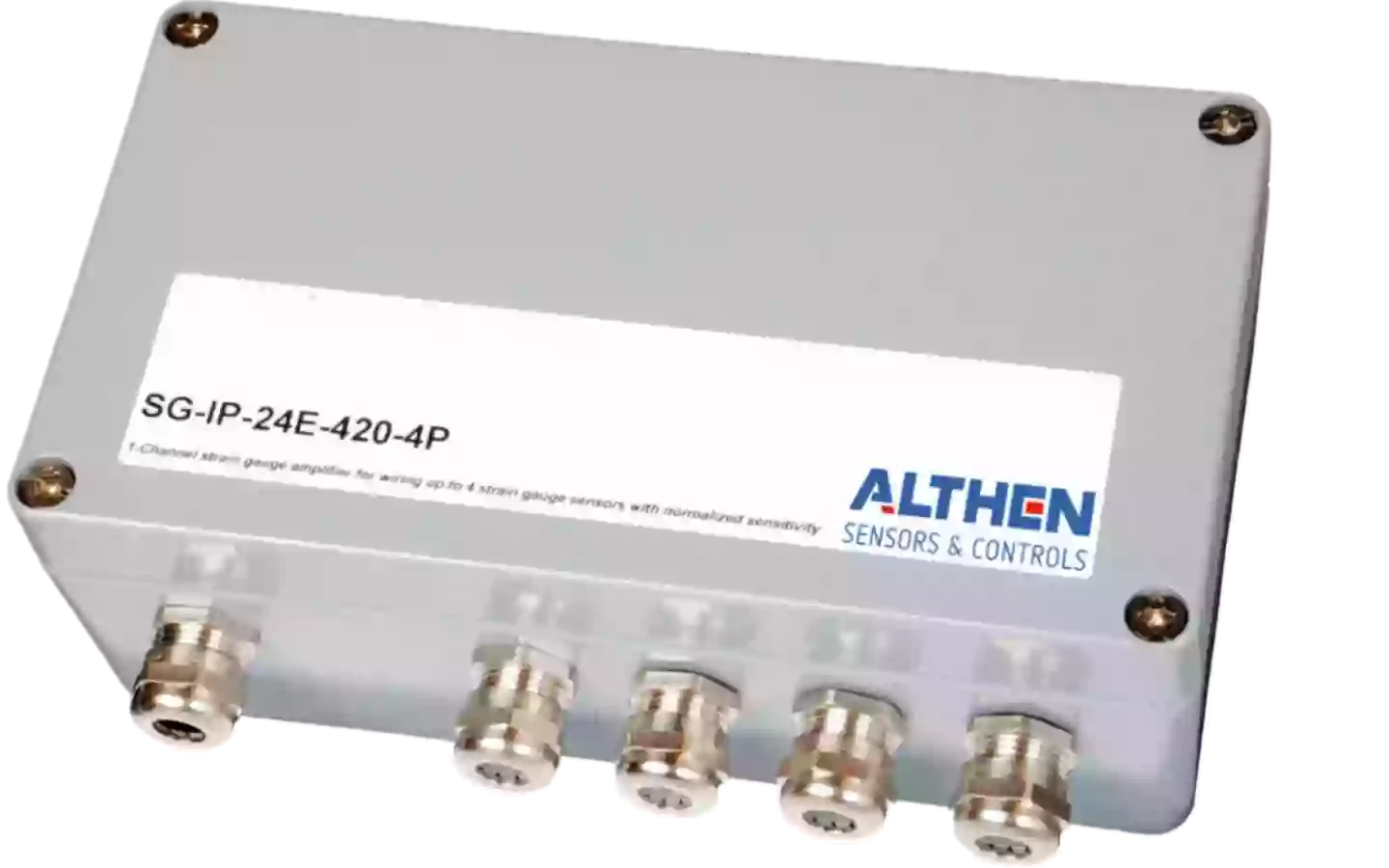

SG-IP-4P Strain Gauge Amplifiers
Single channel strain gauge amplifier for parallel operating of up to 4 transducers
About the SG-IP-4P Strain Gauge Amplifiers
This single channel strain gauge measuring amplifier SG-IP-4P allows supply and signal evaluation of up to four transducers with normalized sensitivity and a strain gauge full bridge greater than 300 ohms. Input and output are galvanically isolated. The connection is done in 4-wire technology. For further evaluation standard analogue outputs are available. The measuring amplifier is built-in into a robust EMC die-cast aluminium enclosure (IP65) which is suited for applications in rough and industrial environments.
The amplification can be adapted by an internal precision resistance.
The potentiometers Z (Zero) and G (Gain) which are accessible after removing the enclosure cover, allow a calibration correction.
By means of an internal dip switch, a change of range of the potentiometer Z (zero) can be reached. To allow a zero range shift, a basic load / tare can be suppressed by a resistance electrically.
Key features SG-IP-4P
- Supply voltage 10 - 18 VDC / 18 - 30 VDC
- Analogue output 0 - 10 V, ±10 V, 4 - 20 mA
- EMC aluminium die-cast enclosure (IP65)
- Dimensions (W x H x D) 220 x 120 x 80 m
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Analogue output | 0 - 10 V, ±10 V, max. 1 mA (short-period short-circuit proof) 4 - 20 mA, max. 500 Ω |
| Dimension (b x h x d) | 220 x 120 x 80 mm |
| Electrical connection | EMC cable gland on internal terminal block |
| Enclosure | EMC aluminium die-cast enclosure (IP65) |
| Input resistance | >3 MΩ |
| Isolating proof voltage input to output | 200 V, higher isolated proof voltage on request |
| Limit frequency (-3 db) | 1 kHz, optional up to 30 kHz |
| Max. input sensitivity | 100 mV/V at ±5 VDC excitation supply |
| Non-linearity | ±0.05 % FSO |
| Number of measuring channels | 1 (full bridge resistance >300 Ω) |
| Power consumption | 8 W, max. |
| Strain gauge excitation supply | ±2.5 VDC, ±5 VDC |
| Supply voltage | 10 - 18 VDC, 18 - 30 VDC, electronics protected against voltage reversal |
| Temperature, operating | -20 to +50 °C |
| Temperature, storage | -20 to +60 °C |
| Weight | 1650 g |
