Key features

+++ Special offer +++

Instead of 830,- EUR only 697,- EUR*!

*plus VAT

Portable handheld unit with colour display
TEDS function (automatic calibration)

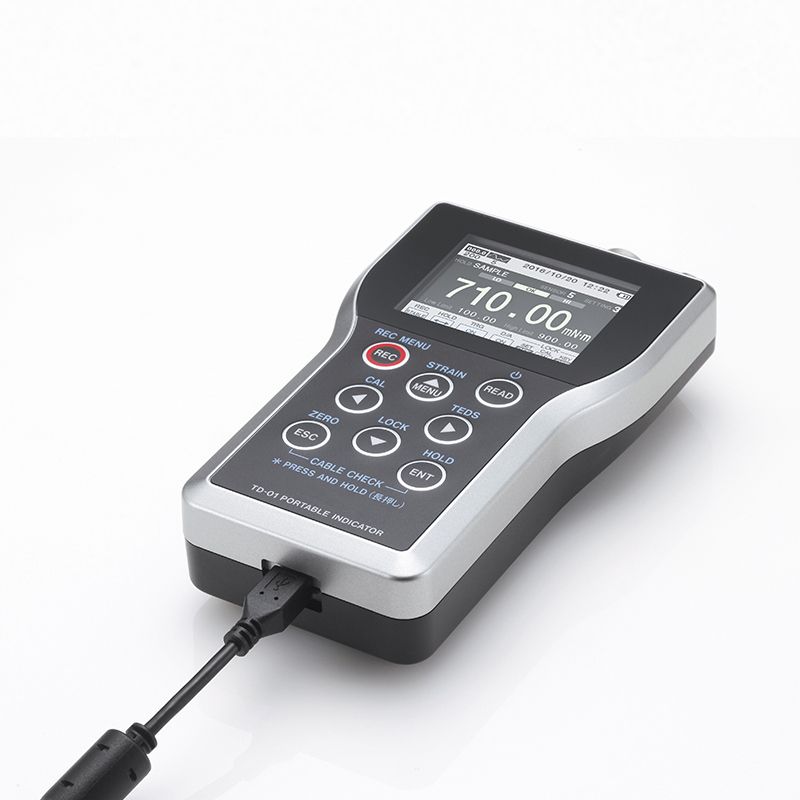

USB interface
Static strain display mode
Dual input
Measuring ranges 0.3 mV/V to 5 mV/V
Waveform & bar meter display function

About the TD-01

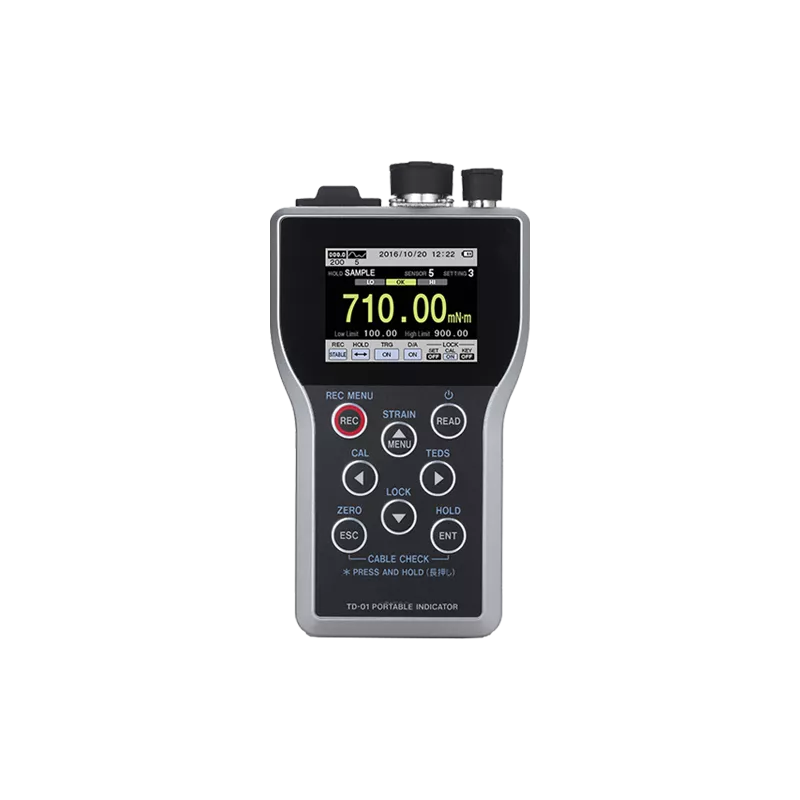

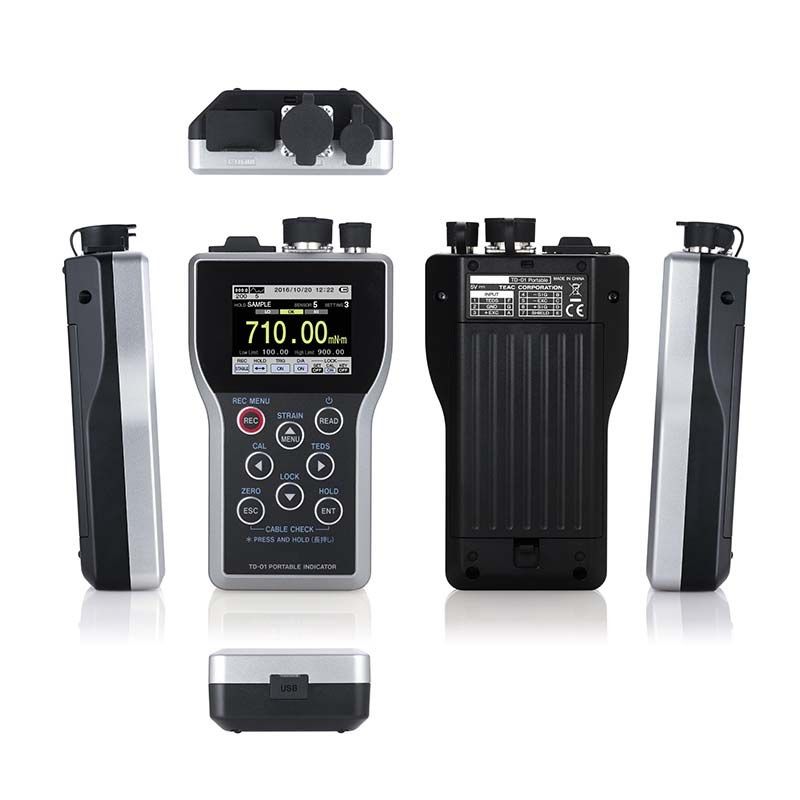

TD-01 Portable is a digital indicator that connects with strain gauge based transducers. This unit displays input signals from transducers as an indicator value or graph display and features: Great visibility with color graphic LCD, high-speed processing A/D converter, indicator recording, interrupt check and support for TEDS.
The TD-01 is wonderfully portable and equipped to be highly functional with excellent cost-effectiveness.

Applications

Force Measurement in Resistance Welding
Force Measurement for Press Fitting
Pedal Force Measurement
Suitable for strain gauge transducers (full bridges)

Features of the TD-01

- 1-channel hand-held strain gauge measuring amplifier with display
- high-performance 2.4" colour TFT LCD display
- aluminium housing with membrane keyboard
- TEDS function (automatic calibration)
- Static strain display mode
- Dual input
- D/A output
- Measuring ranges 0.3 mV/V to 5 mV/V
- 24Bit resolution
- USB port
- Multiple power supply (batteries + USB port)
- Waveform & bar meter display function
- List of indicator values
- Interrupt check
- Dual language support (English, Japanese)
- Analogue output -2+2V via BNC connector
- 4x Mignon AA batteries

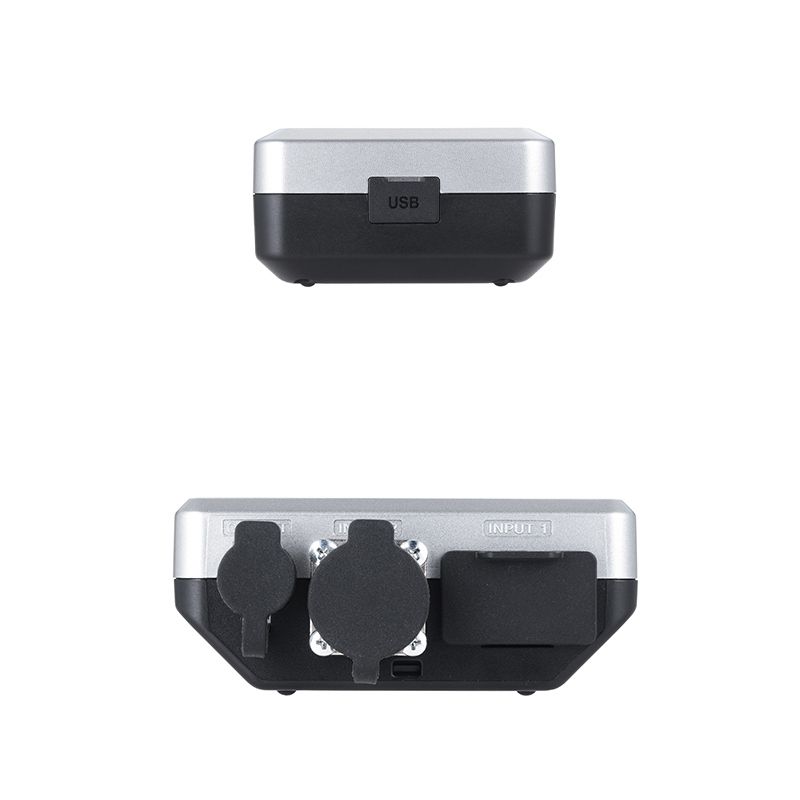

- Connection via circular connector (NDIS7P)/connector strip
- "TdDataPicker" Data Management Software is available free of charge as download

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Product downloads

Td 01 portable digital indicator en

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification	Value
A/d conversion	1000 times/second, 24-bit
Calibration precision	Within 0.1% F.S. (when using a 1m standard TEAC Φ8, 6-core shielded cable with 350Ω impedance, when 5mV/V)
Calibration range	0.3 mV/V – 5.0 mV/V
Compatible sensors	Strain gauge transducer
D/a output	± 2V
Excitation voltage	DC, 2.5 V ±5% (30mA maximum current)
Gain drift	0.005%/ºC or less
Non-linearity	0.02% F.S. or less
Non-linearity	Within 0.01% F.S. + 1 digit (when 5mV/V)
Operating temperature range	0℃ to 40℃
Output voltage	±2.0 V
Power supply	4 alkaline or NiMH AA batteries USB bus power (built-in Micro-USB B connector)
Resolution	70.16μV typ
Signal input range	±5 mV/V
Signal input terminals	Round connector(NDIS7P)/terminal bank(connect only one at a time)
Zero drift	Within 0.5 μV/°C (input conversion value)

TD-01 Portable Digital Indicator
