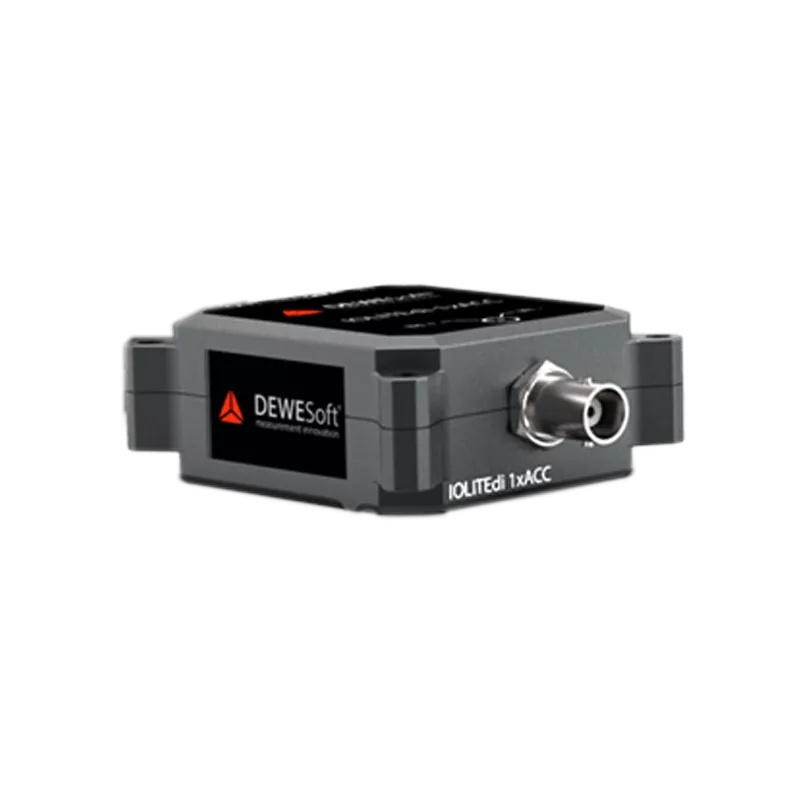

IOLITEi-1xACC Signal Conditioner

Single channel signal conditioner for IEPE sensors with high-precision isolated front end and Ether CAT bus on the back


About the IOLITEi-1xACC

The IOLITEi-1xACC is a singel channel signal conditioner for IEPE sensors with high-precision isolated front end and EtherCAT bus on the back side.

Key features

  • 24bit ADC, 40 KS/s max. sample rate
  • -100 dB noise floor, 100dB spurious-free dynamic range
  • Singal and power isolation from EtherCAT to front-end
  • TEDS communication
  • EtherCAT bus, daisy-chaining with single cable up to 50 m device-device
  • DEWESoft X3 software support

Typical applications

  • Machine vibration monitoring
  • Bearing fault detection
  • Modal structural analysis

Installation

Devices are daisy chained with a standard network cable. It is recommended that the cable is shielded (SFTP, CAT5e) and has a minimum 24 AWG wire thickness. The cable must have 4 wire pairs. The maximum distance node-to-node is 50m.

Power supply: Passive PoE power injector is necessary for merging the EtherCAT signal and power into a single cable.



Download Free Software DewesoftX 2021.2



Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Acd resolution 24 bit
Hardware high-pass filters 0.1, 1 Hz
Input coupling AC, DC
Max. sample rate 40 kS/s
Measurement modes IEPE, Voltage
Measurement ranges +/- 10, +/- 5, +/- 1, +/- 0.2 V
Operating temperature -20...60 degC
Sensor recognition TEDS over IEPE
Supply voltage 12-48 V
