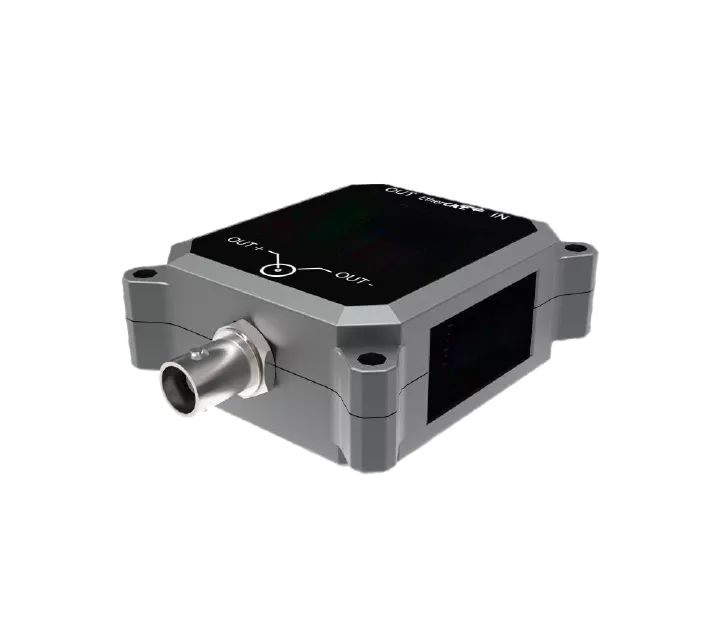

IOLITE-1XAO Signal Conditioner
Signal conditioner with low latency analog output and EtherCAT interface, including software support
About the IOLITE-1XAO Signal Conditioner
The IOLITE-1XAO is a low latency, high precision analog output with excellent dynamic performance. Under 100 microseconds of EtherCAT-to-analog delay possible (on a real-time EtherCAT controller).
Features
- 18 bit DAC, 92 dB SNR
- <100 us delay (EtherCAT-to analog output)
- EtherCAT bus, daisy-chaining with single cable up to 50 m device-device
- DEWESoft X3 software support
Applications
- Analog voltage controlled valves
- EtherCAT control systems
Software support: DEWESoft X3, any standard EtherCAT master
Installation: Devices are daisy chained with a standard network cable. It is recommended that the cable is shielded (SFTP, CAT5e) and has a minimum 24 AWG wire thickness. The cable must have 4 wire pairs. The maximum distance node-to-node is 50 m.
Power supply: Passive PoE power injector is neccessary for merging the EtherCAT signal and power into a single cable.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | 0.1% +/- 1 mV (0 to 20mA load) |
| Dac resolution | 18 bit |
| Full scale output range | +/- 10 V |
| Maximum output current | 20 mA |
| Measurement ranges | +/-10 | +/-5 | +/-1 | +/-0.2 V |
| Sample rate in dewesoft software | 1 kS/s |
| Update time in dewesoft software | 20-30 ms |
