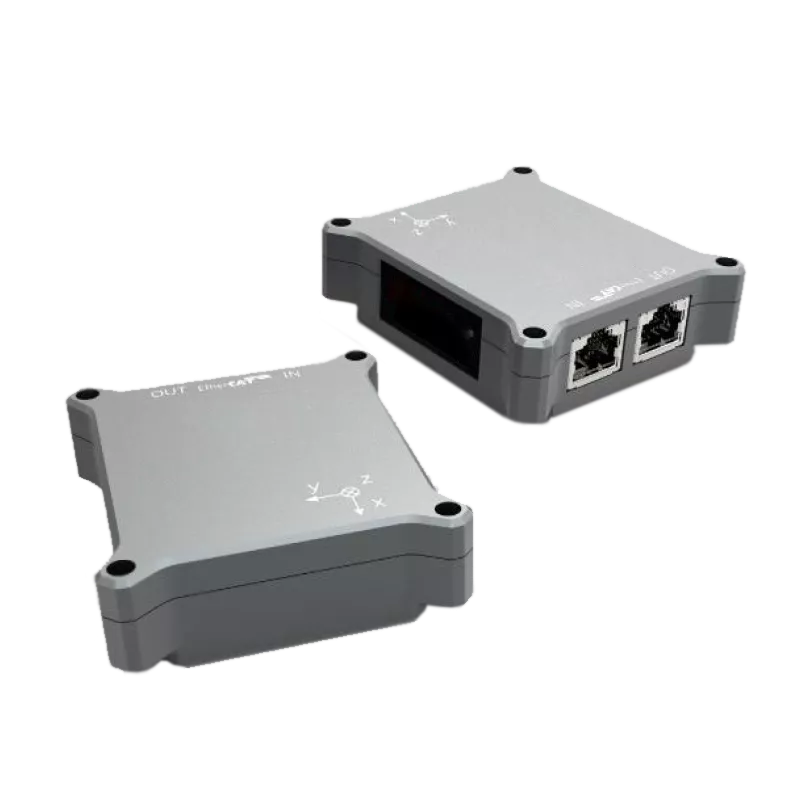

IOLITEI-3XMEMS-ACC Accelerometer

3-axial MEMS accelerometer with EtherCAT interface and software support


About the IOLITEI-3XMEMS-ACC Accelerometer

A data acquisition device with embedded triaxial MEMS accelerometer, analog-to-digital conversion and EtherCAT interface based on the MonoDAQ EtherCAT platform.

Software support: DEWESoft X3, any standard EtherCAT master

Installation: Devices are daisy chained with a standard network cable. It is recommended that the cable is shielded (SFTP, CAT5e) and has a minimum 24 AWG wire thickness. The cable must have 4 wire pairs. The maximum distance node-to-node is 50 m.

Power supply: Passive PoE power injector is neccessary for merging the EtherCAT signal and power into a single cable.


Download Free Software DewesoftX 2021.2

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
-3db bandwidth typ. 1000 Hz
Digital interface EtherCAT
Linearity error -1 g...+1 g range 0.1 %FS
Measurement ranges +/- 2 g (min) | +/-8 g (max)
Offset error -75 mg | +/-25 mg | +75 mg
Operating temperature -20 ... 60 degC
Power consumption 1300 mW
Supply voltage 12-45 V
