W100 LED Indicator
LED indicator
About the W100 LED Indicator

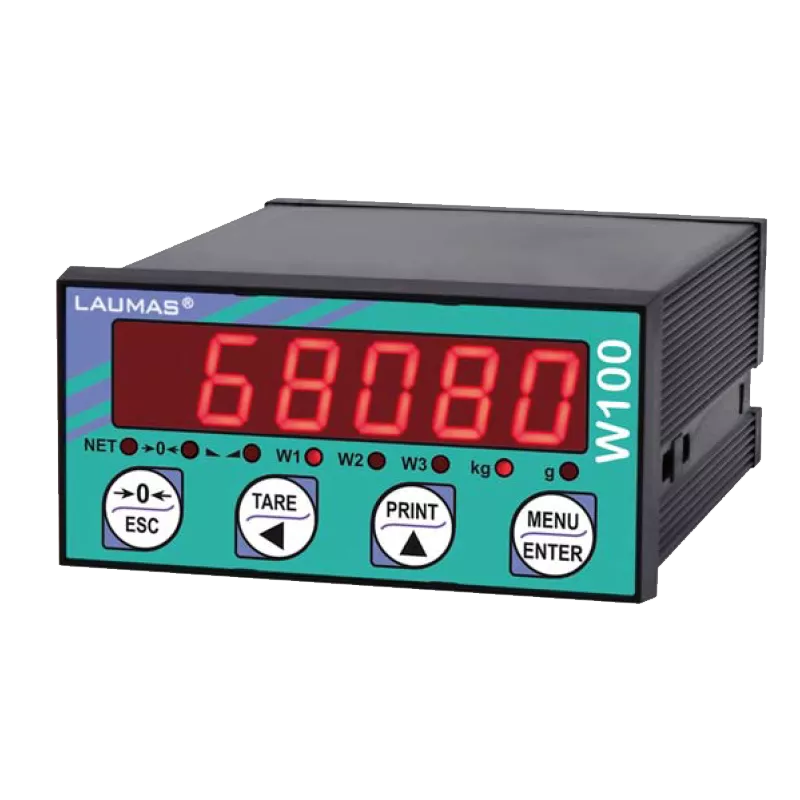

Weight Indicator in DIN case (48 x 96 x 130 mm, drilling template 44 x 91mm) for panel mounting. IP54 front panel protection. Six-digit red LED semialphanumeric display (14 mm h), 7 segment; 8 signaling LED. Four-key membrane keyboard. Real-time clock with buffer battery.
Key features W100
- 5 setpoints (4 setpoints if Analog Output is present) configurable as normally open or normally closed. The operator can decide the setpoints activation for the net weight value, gross weight value, otherwise for positive weights or for positive and negative weights.
- Setting of hysteresis value for each setpoint.
- 12 groups selection by 5 setpoint from selector switch or contacts (EC/E options).
- Peak holder displaying by closing the Peak contact.
- Net/Gross function by keyboard or external contact.
Two serial ports (RS232 and RS485) for connection to:
- PC/PLC up to 32 instruments (max 99 with line repeaters) by ASCII Laumas protocol (compatible with W60000) or ModBus RTU. Optional Protocols: Profibus DP and Ethernet/ModbusTCP by appropriate converter
- Remote display
- Printer
Theoretical calibration is performed via the keyboard. Real calibration with linearization up to 5 points.
Remote display: the instrument can be used as a remote display with setpoints.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| A/d converter | 24 bit (16000000 points) 4.8 kHz |
| Baud rate | 2400, 4800, 9600, 19200, 38400, 115200 |
| Digital filter / conversion rate | 0.012 - 7 s / 5 - 300 Hz |
| Divisions, max. (with measure range &plumn10 mv = 2 mv/v) | ±999999 |
| Linearity | <0.01 % FS |
| Linearity of analog output | <0.01 % FS |
| Logic inputs | 3x - optoisolated 5 - 24 VDC PNP (2x - analog output versions) |
| Logic outputs (relays) | 5x - max 115 VAC ; 150 mA (4x - analog output versions) |
| Number of load cells in parallel and supply | max. 8 (350 Ω); 5 VDC / 120 mA |
| Power supply and consumption | 12 - 24 VDC ±10 %; 5 W |
| Serial ports | RS232, RS485 |
