WINOX-BL LCD Indicator
LCD weighbridge indicator IP40
About the WINOX-BL LCD Indicator

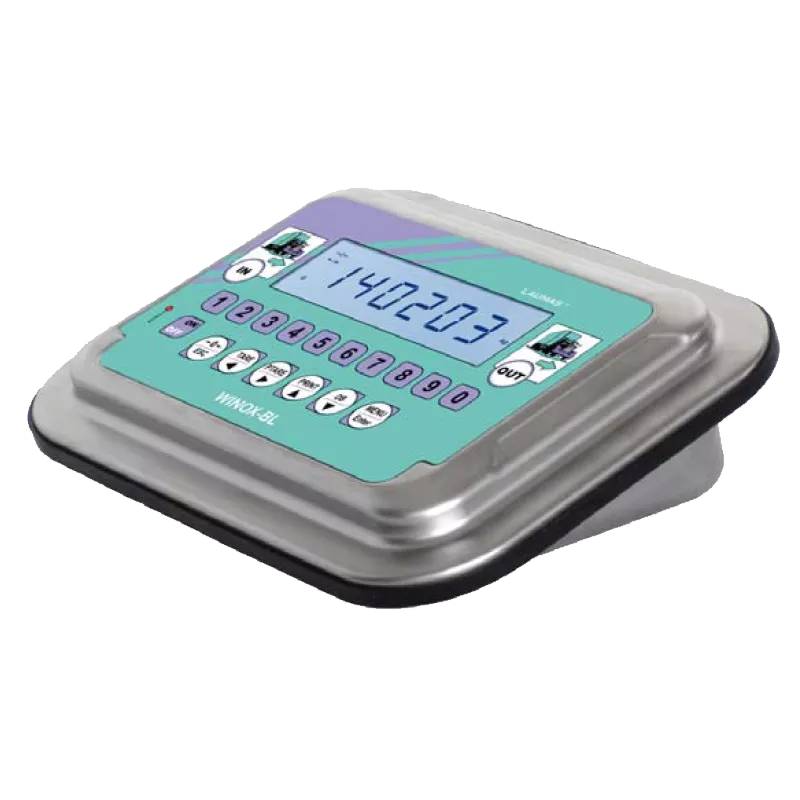

AISI 304 stainless steel weight Indicator (dimensions: 206 x 286 x 85 mm). IP40 desk version with 4 D-SUB connectors. Power supply included. Six-digit backlit LCD semialphanumeric display (20 mm h), 7 segment; 46 signaling symbols. 19-key membrane keyboard with buzzer. Real-time clock with buffer battery.
key features WINOX-BL
- Double weighing (Entry and Exit)
- Single weighing (Entry or Exit)
- Double weighing with trailer
- Single weighing with trailer
- Mutliple weighing (weighing of multi-compartment trucks).
- Open input weighs archive (max 254)
- Trucks database with password, max 999 preset tare that can be stored and
- recalled
- Trafic light function
- Totals management (loaded and unloaded material)
- Customizable print header (4 lines) via PC
- Supported external printer: Epson TM-U295, Epson LX300, Custom Kube II, Laumas STAVT.
Two serial ports (RS232 and RS485) for connection to:
- PC/PLC up to 32 instruments (max 99 with line repeaters) by ASCII Laumas protocol or ModBus RTU.
- Remote display.
- Printer.
Theoretical calibration is performed via the keyboard. Real calibration with linearization up to 5 points.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| A/d converter | 24 bit (16000000 points) 4.8 kHz |
| Baud rate | 2400, 4800, 9600, 19200, 38400, 115200 |
| Digital filter / conversion rate | 0.012 - 7 s / 5 - 300 Hz |
| Divisions, max. (with measure range &plumn10 mv = 2 mv/v) | ±999999 |
| Linearity | <0.01 % FS |
| Logic inputs | 3x - optoisolated 5 - 24 VDC PNP |
| Logic outputs (relays) | 5x - max 115 VAC ; 150 mA |
| Number of load cells in parallel and supply | max. 8 (350 Ω); 5 VDC / 120 mA |
| Power supply and consumption | 12 - 24 VDC ±10 %; 6 W |
| Serial ports | RS232, RS485 |
