About the WINOX-G LCD Indicator

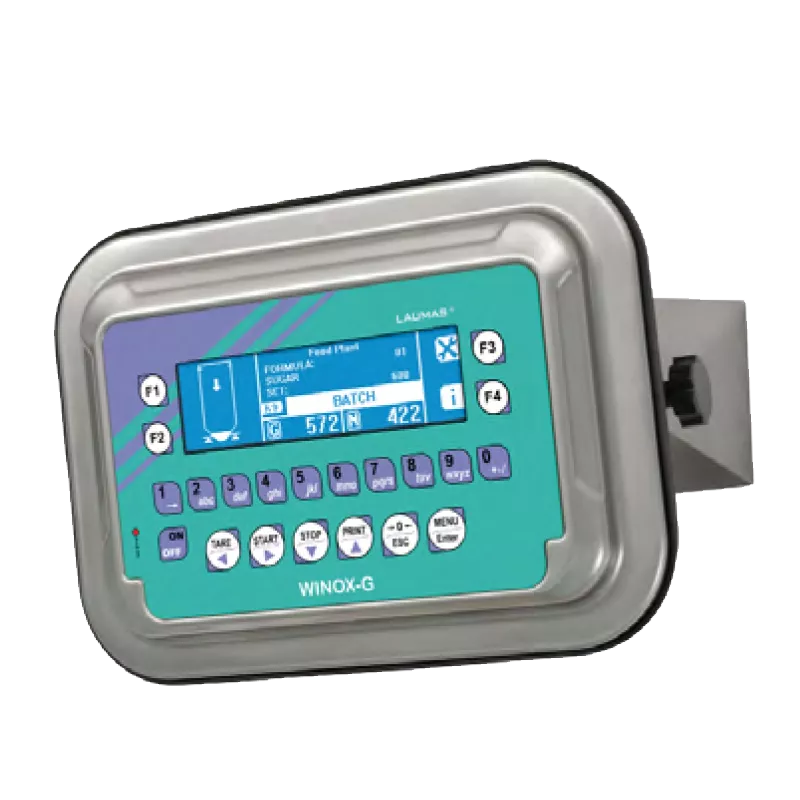

AISI 304 stainless steel weight indicator (dimensions: 206 x 286 x 108 mm) with 6 PG9 cable glands, IP68 (optional: IPX9K) protection rating, stainless steel adjustable bracket included (overall dimensions with bracket: 206 x 290 x 187 mm). Optionals: panel / desk / column mounting. STN transmissive LCD graphic display, white on blue, 240 x 64 pixel resolution, backlit, 133 x 39 mm viewing area. Membrane keyboard with buzzer. Real-time clock with buffer battery.

Key features WINOX-G

Two serial ports (RS232 and RS485) for connection to:

PC/PLC up to 32 instruments (max 99 with line repeaters) by ASCII Laumas protocol or ModBus RTU.
Remote display.
Printer.

Optional integrated output:
Profibus DP, DeviceNet, CANopen, Profinet IO, EtherNet/IP, Ethernet TCP/IP (connectable to your smartphone, tablet etc. via web), Modbus/TCP.
Theoretical calibration is performed via the keyboard. Real calibration with linearization up to 5 points.

Option Q
- Panel version with extractable terminal board
  Dimensions 206 x 286 x 96 mm (drilling template: 160 x 248 mm)
Option D
- IP 40 desk version with 6 D-SUB connectors
  Dimensions: 206 x 286 x 85 mm
  Power supply included
Option N
- IP65 version with 6 nickel-plated circular connectors
  Dimensions: 206 x 286 x 160 mm (drilling template in case of panel mounting: 160 x 248 mm)
  Power supply included
  Bracket included
Option X
- IP68 ATEX version Ex II 3GD (zone 2-22) with 6 cable glands
  Dimensions: 206 x 286 x 108 mm (drilling template in case of panel mounting: 160 x 248 mm)
  Bracket included

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Product downloads

Winox g lcd indicator en

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification	Value
A/d converter	24 bit (16000000 points) 4.8 kHz
Baud rate	2400, 4800, 9600, 19200, 38400, 115200
Digital filter / conversion rate	0.012 - 7 s / 5 - 300 Hz
Divisions, max. (with measure range &plumn10 mv = 2 mv/v)	±999999
Linearity	<0.01 % FS
Linearity of analog output	<0.01 % FS
Logic inputs	3x - optoisolated 5 - 24 VDC PNP (2x - analog output versions)
Logic outputs (relays)	5x - max 115 VAC ; 150 mA (4x - analog output versions)
Number of load cells in parallel and supply	max. 8 (350 Ω); 5 VDC / 120 mA
Power supply and consumption	12 - 24 VDC ±10 %; 6 W
Serial ports	RS232, RS485
