WINOX-R 3A Hygienic Weight Indicator

Stainless steel hygienic weight indicator (for weighing and batching)


Key features

  • Hygienic device RPSCQC authorized by 3-A SSI
  • Panel mounting
  • Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
  • Six-digit red LED display, 20 mm height, 16 indicator LED
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
  • 3 logic inputs, 5 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)
  • Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.
  • A/D converter 24bit (16000000 points) 4.8 kHz
  • Display range 999999

About the WINOX-R 3A Hygienic Weight Indicator

AISI 304 stainless steel hygienic Weight Indicator, dimensions 286 x 206 x 96 mm. IP69K front panel protection rating. Six-key membrane keyboard. Real time clock/calendar. Different versions for various types of electrical connections: cable glands, D-SUB connectors, removable terminal board/connectors.

Description:

  • AISI 304 stainless steel hygienic weight indicator.
  • Hygienic device RPSCQC authorized by 3-A SSI.

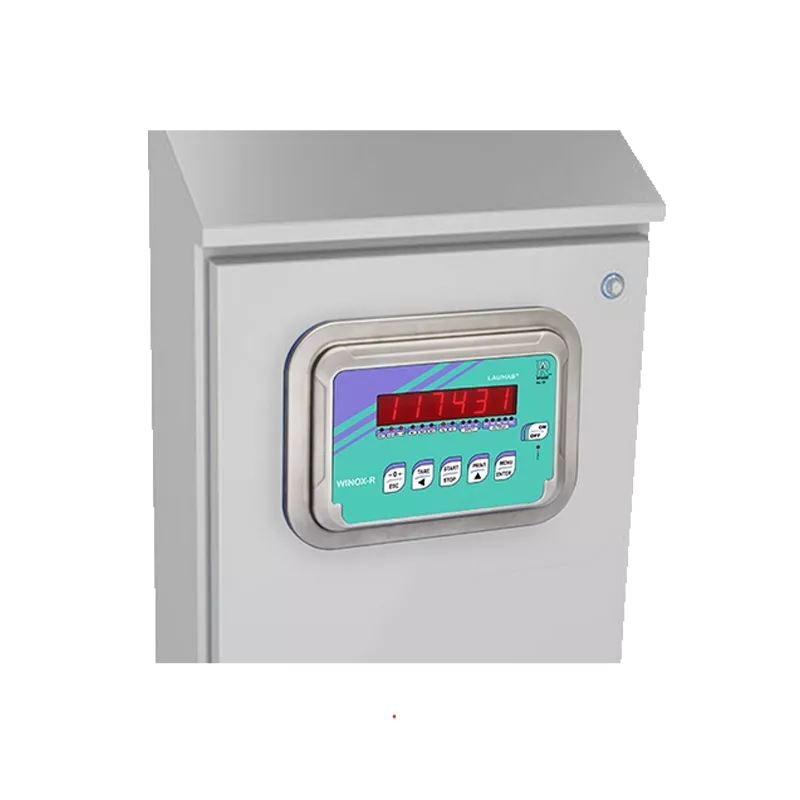

  • Installation: front panel (supports included; drilling template: 248x160 mm).
  • Dimensions: 286x206x96 mm.
  • IP69K front panel protection rating.

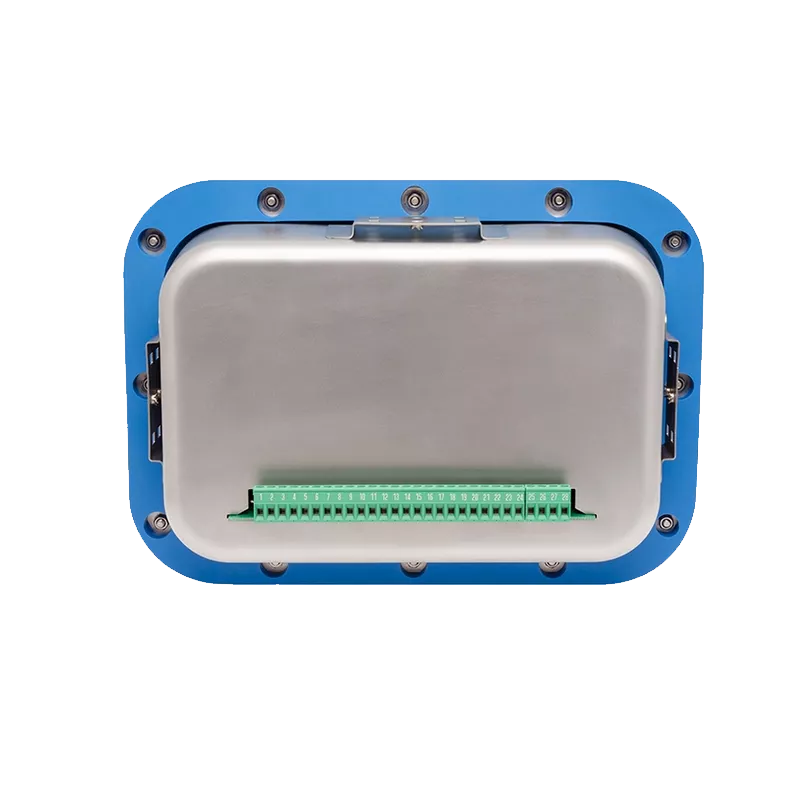

  • Extractable screw terminal blocks.
    6-digit semi-alphanumeric red LED display (20 mm height) -16 signaling LED.
  • 6-key keyboard.
  • Real-time clock/calendar with buffer battery.

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Power supply and consumption 12÷24 VDC ±10%; 6 W
Number of load cells • Load cells supply up to 8 (350 Ω) - 4/6 wires • 5 VDC/120 mA
Linearity • Analog output linearity <0.01% full scale • <0.01% full scale
Measurement range ±39 mV
Usable load cells sensitivity ±7 mV/V
Conversions per second 300/s
