LCB3A Hygienic Universal Load Cells Digitizer

Universal measuring amplifier for load cells with integrated analog/digital converter

View technical specifications

Key features

  • Hygienic device RPSCQC authorized by 3-A SSI
  • Optional fieldbuses
  • Micro USB port
  • 16-bit Analog output: 0/4-20 mA; 0-5/10 V (optional)
  • RS485 port (optional)
  • Direct connection between RS485 and RS232 without converter
  • 2 logic inputs, 3 relay outputs
  • Single loading batchings, max 99 formulas
  • Mounting: wired or integral to the load cell body via standard ¼ GAS fitting

About the LCB3A

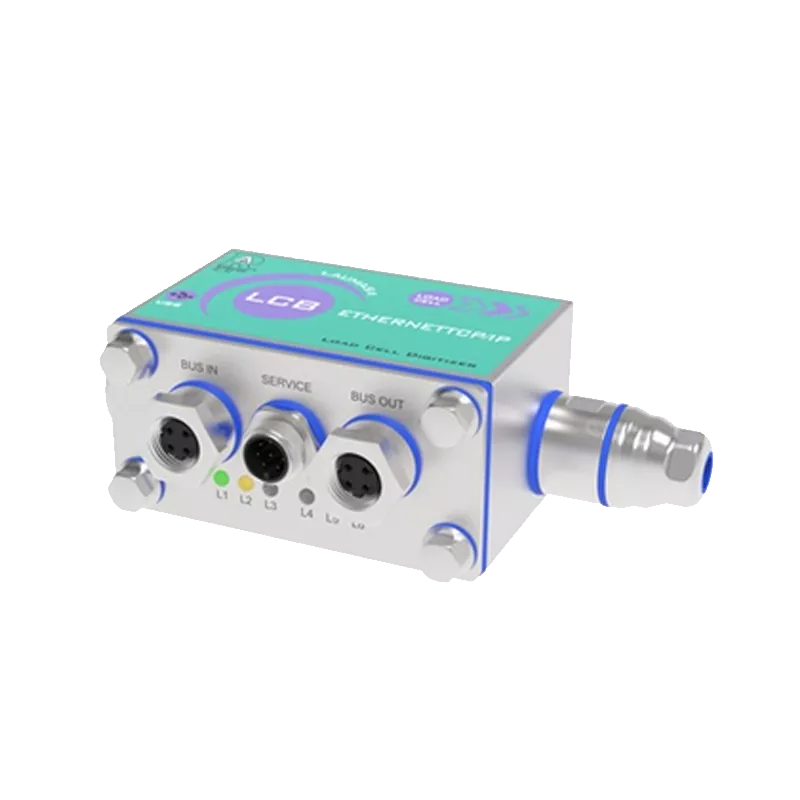

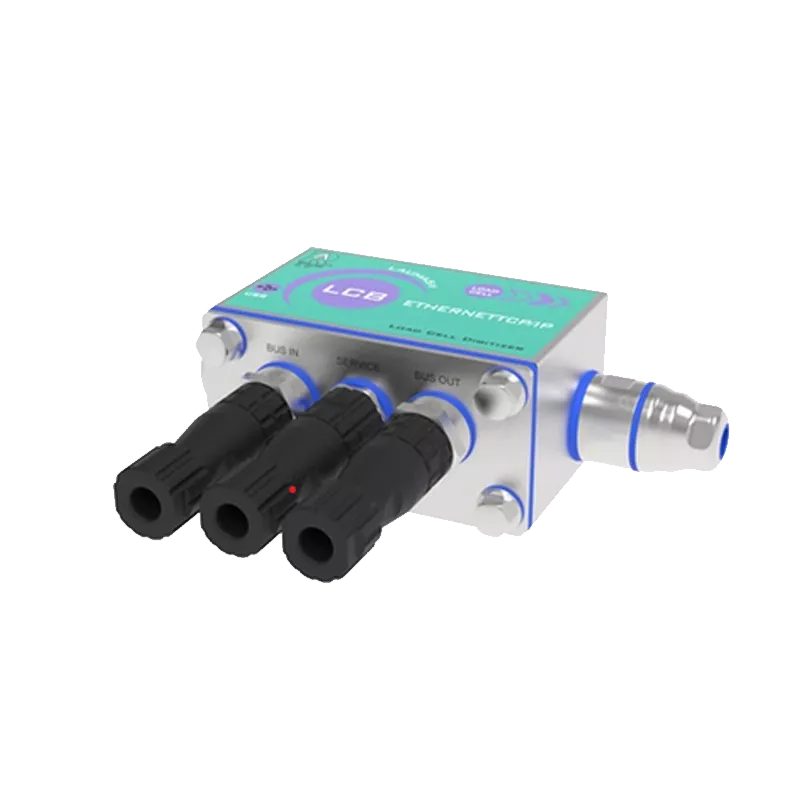

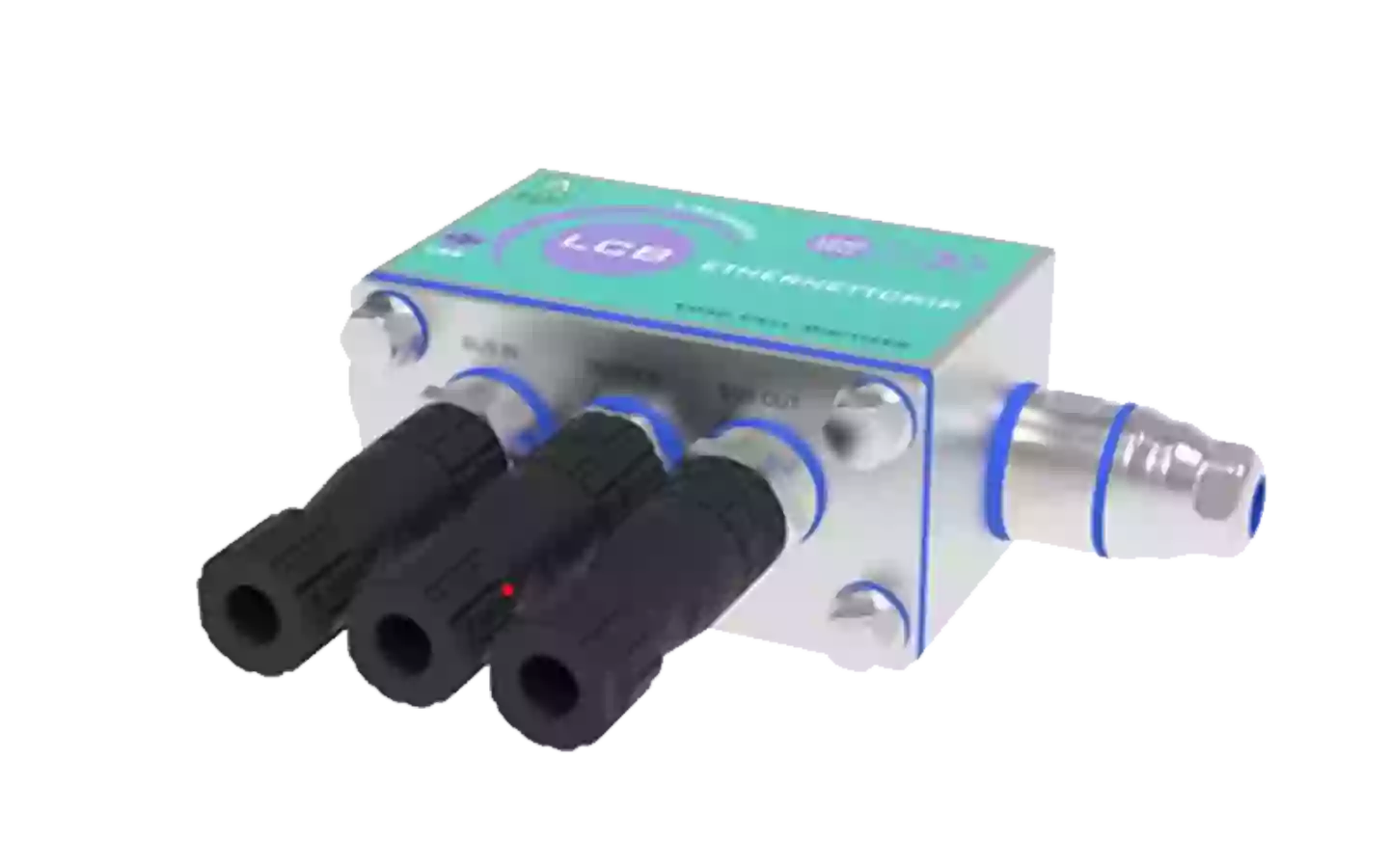

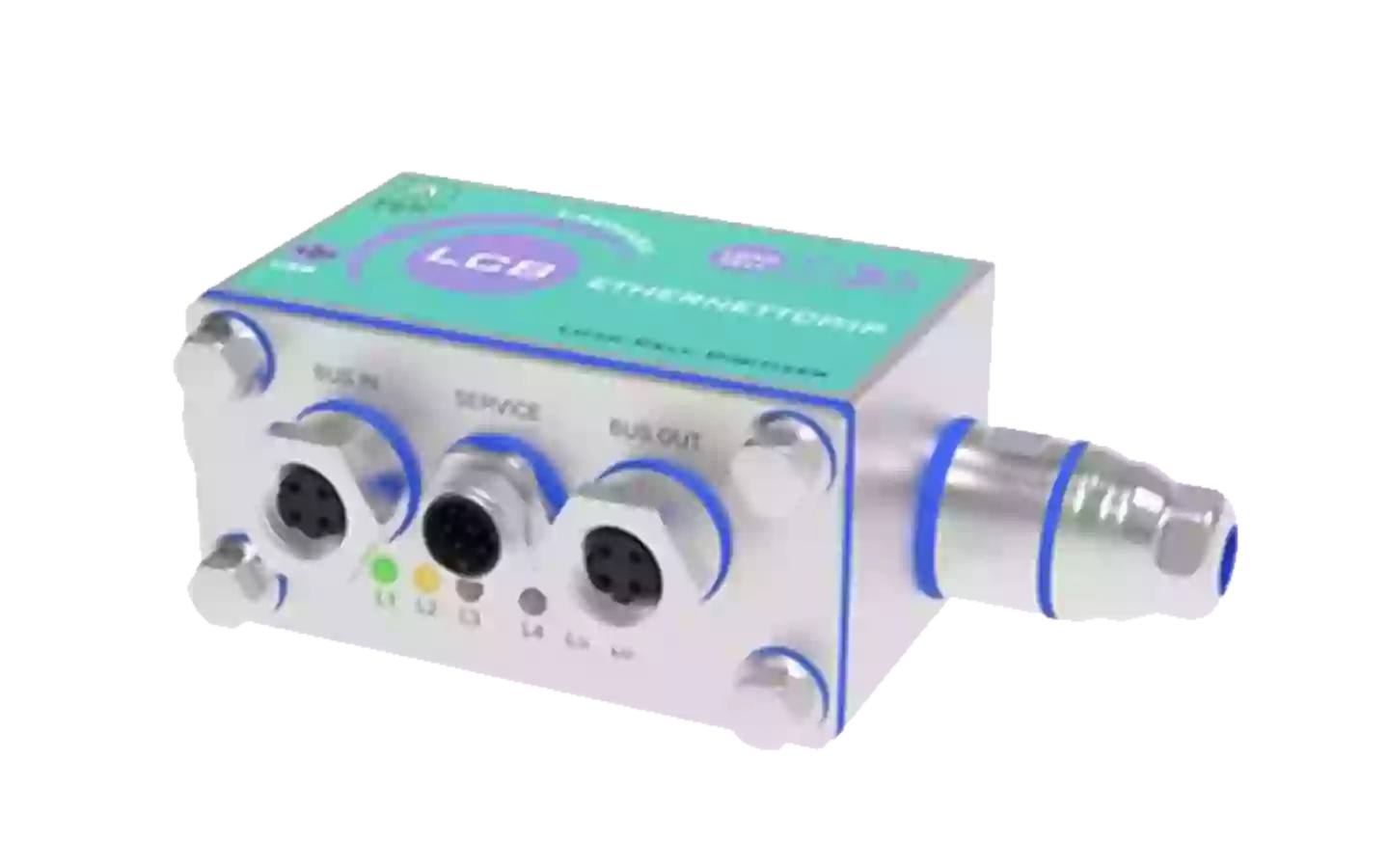

Digitizer/Weight Trasmitter for load cells conceived with an eye on IoT (Internet of Things). Three M12 hygienic connectors with solder terminals. Six indicator led of the communication interface. Dimensions: 90x40x107 mm including connectors.IP67 junction box made of stainless steel AISI 304, certified 3-A Sanitary Standards.

LCB Digitizer transforms an analog load cell (output mV/V) into digital
and can also be used on existing load cells or strain gauge sensors.
Designed for an assembly/wiring integral with the load cell body, it can
be connected by fieldbus to PLCs of the most important international
brands. The weight calculation frequency reaches up to 500 values a second and also the update frequency of the data on the fieldbus can reach the maximum speed of 500 updates a second, when using the PROFINET, EtherNet/IP and EtherCAT buses.

Key Features

  • Hygienic device RPSCQC authorized by 3-A SSI
  • Optional fieldbuses: PROFINET IO, Ethernet/IP, Ethernet TCP/IP,
    Modbus TCP, PROFIBUS DP, EtherCAT, POWERLINK, CANopen, CC-Link, CC-Link, IE Field Basic, SERCOS III, IO-LINK
  • Micro USB port
  • 16-bit Analog output: 0/4-20 mA; 0-5/10 V (optional)
  • RS485 port (optional)
  • Direct connection between RS485 and RS232 without converter
  • 2 logic inputs, 3 relay outputs
  • Single loading batchings, max 99 formulas
  • Mounting: wired or integral to the load cell body via standard ¼ GAS fitting

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Request a quotation

Always the right sensor solution.

  • Free and independent advice for your application
  • Tailor-made offer
  • Development of standard and customised solutions
  • Fast response time

LCB3A Hygienic Universal Load Cells Digitizer

 Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
A/d converter 24 bit (16000000 points) - 4.8 kHz
Conversions per second 500/s
Decimals / display increments 0÷4 / x1 x2 x5 x10 x20 x50 x100
Digital inputs 2 - 5÷24 VDC
Divisions (with measurement range ±10 mv and sensitivity 2 mv/v) ±999999 / 6.6 nV/d
Hermal drift / analog output thermal drift <0.0005% full scale/°C / <0.003% full scale/°C
Linearity / analog output linearity <0.01% full scale / <0.01% full scale
Measurement range ±26 mV
Micro usb port B type - USB 2.0 (full-speed)
Number of load cells / load cells supply up to 4 (350 Ω) - 4/6 wires / 3.3 VDC/40 mA
Power supply and consumption 12÷24 VDC ±10%; 5 W
Relay outputs 3 - max 115 VAC/150 mA - 24 VDC/200 mA
Usable load cells sensitivity ±7 mV/V
