TLB CC-Link Digital Amplifier
Digital amplifier | Indicator for load cells
About the TLB CC-Link Digital Amplifier

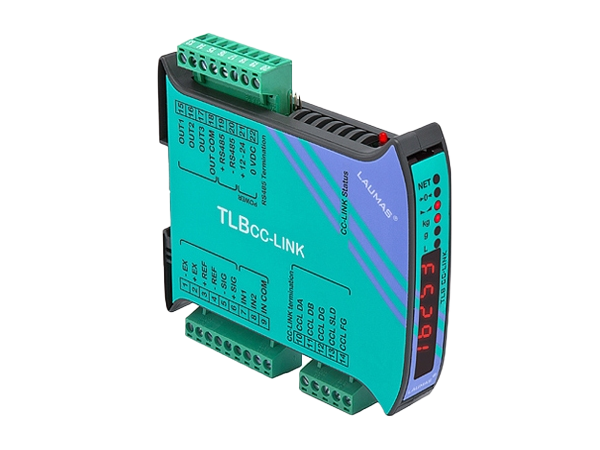

Weight amplifier and indicator for Omega/DIN rail mounting suitable for back panel; space-saving vertical shape.
Key features CC-Link Port
- Six-digit semialphanumeric display (8mm h), 7 segment LED
- Four buttons
- Dimensions: 25 x 115 x 120 mm
The instrument is equipped with two communication ports:
- Slave CC-Link port, max 64 instruments
- RS485 for connection to:
- PC/PLC up to 32 instruments (max 99 with line repeaters) by ASCII Laumas protocol (compatible with W60000) or ModBus RTU Protocol
- Remote display
Theoretical calibration by using buttons.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| A/d converter | 24 bit (16000000 points) 4.8 kHz |
| Cc-link port - baud rate | 156 k, 625 k, 2500 k, 5 M, 10 M |
| Digital filter / conversion rate | 0.012 - 7 s / 5 - 300 Hz |
| Divisions, max | ±999999 |
| Linearity | <0.01% FS |
| Logic inputs | 2x - optoisolated 5 - 24 VDC PNP |
| Logic relay outputs | 3x - max. 115 VAC / 150 mA |
| Number of load cells (parallel and supply) | max. 8 (350 Ω); 5 VDC / 120 mA |
| Power supply and consumption | 12 - 24 VDC ±10 %; 5 W |
| Rs485 port - baud rate | 2400, 4800, 9600, 19200, 38400, 115200 |
