TLM8 Modbus-TCP Digital Amplifier
Digital 8-channel amplifier | Indicator for load cells
About the TLM8 Modbus-TCP Digital Amplifier

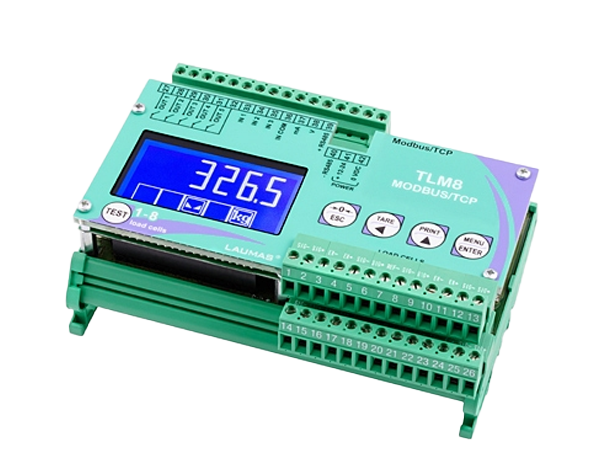

Weighing system with 8 independent reading channels for load cells. The TLM8 transmitter allows to have same benefits and performance of an advanced digital weighing system even using analog load cells. The Omega/DIN rail mounting suitable for back panel or junction box.
Key features TLM8 Modbus-TCP
- Dimensions: 148 x 92 x 60 mm
- Backlit graphic LCD display, transmissive STN, white on blue, 128 x 64 pixel resolution, 60 x 32 mm visible area
- Five-key keypad for the system calibration
- TEST key for direct access to the diagnostic functions
- Extractable screw terminal boards
Input/Output and Fieldbusses
- Analog output 16 bit
- 3 logic inputs
- 5 logic relay outputs
- RS485 serial port for connection to PC/PLC, remote display and printer
- ModBus RTU or ASCII Laumas protocol
- Slave Modbus/TCP port
Do you need this sensor for your next project?
Request a quotation today or leave your details to recieve more information from one of our experts.
Product downloads
Have it your way
Not exactly what you’re looking for? We offer standard sensors but can also help you with a tailor-made sensor or a complete measuring solution. Please contact us for advice or budgetary pricing.
Talk to an expertTechnical Specifications
Specification | Value |
---|---|
(thermal drift of the analog output) | (<0.003% FS/K) |
A/d converter | 8 channels - 24 bit (16000000 points) 4.8 kHz |
Analog output | 16 bit, 0 - 20 mA; 4 - 20 mA (max 300 Ω); 0 - 10 V; 0 - 5 V (min. 10 kΩ) |
Digital filter / conversion rate | 0.006 - 7 s / 5 - 600 Hz |
Divisions | max. 999999 |
Divisions (ce-m approved) | max 3x 10000e |
Linearity (linearity of the analog output) | <0.01% FS (<0.01% FS) |
Logic inputs | 3x optoisolated 5 - 24 VDC PNP |
Modbus/tcp port | RJ45 10Base-T or 100Base-TX (auto-sensing) |
Number of load cells | max. 16 (350 Ω) |
Power supply and consumption | 12 - 24 VDC ±10 %; 5 W |
Relay logic outputs | 5x max. 115 VAC/150 mA |
Rs485 port - baud rate | 2400, 4800, 9600, 19200, 38400, 115200 bit/s |
Thermal drift | <0.0005 % FS/K |
