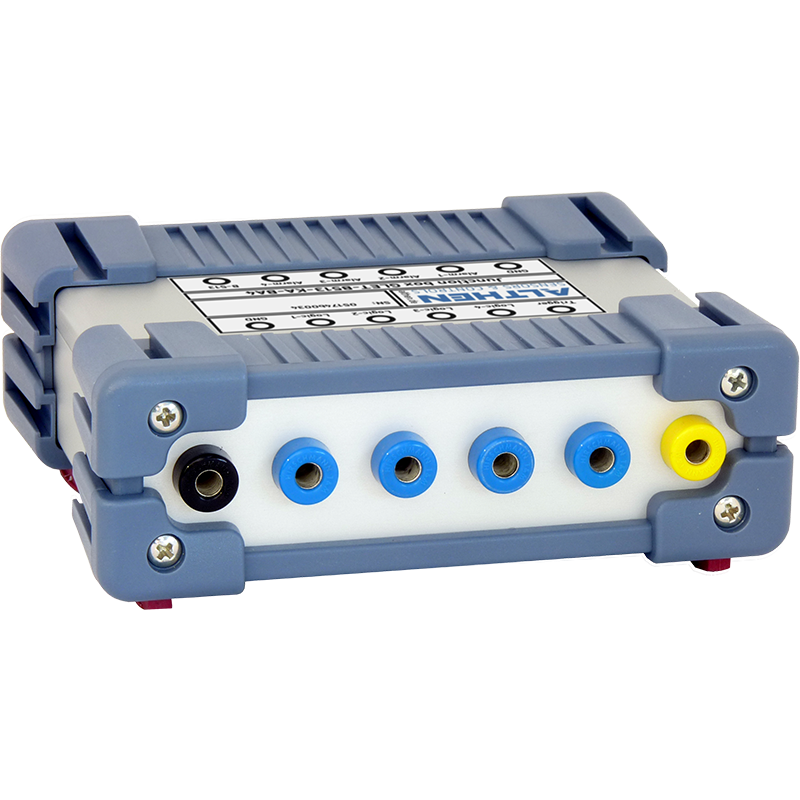

GLET-B513-KA-BA4 Interface for Data Loggers
Modular enclosure for trigger inputs, logic inputs and alarm outputs
About the GLET-B513-KA-BA4 Module
Passive modular enclosure for trigger inputs, logic inputs and alarm outputs as open collector
GLET Module GLET-B513-KA-BA4 for data loggers of series
- GL2xx (Graphtec Midi Logger GL240)
- GL8xx (Graphtec Midi Logger GL840-M & GL840-WV)
- GL9xx (Graphtec Midi Logger GL980)
- GL2000 (Graphtech Midi Logger GL2000)
Accessories for Models with 4 mm Jacks
ADAPKLS4
Set of 2 clamping connectors for direct connection of dismantled leads
- type: 4 mm connector
- wire cross section: 0.12 ... 2.5 mm²
- color: red and black
- configured for voltages up to max. 30 V
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Alarm outputs | open collector (see specification datalogger) |
| Connection to datalogger | cable B-513 |
| Dimensions without connections (wxhxd) | approx. 45 x 115 x 90 mm |
| Enclosure | desktop |
| Environmental sealing | IP20 |
| Integrated jack | 4 mm jack |
| Operating temperature range | 0 ... +50 °C |
