GLET-IU Interface for Data Loggers
Passive modular enclosures for conversion of (0)4 ... 20 mA to (0)1 ... 5 V
About the GLET-IU Module
Passive modular enclosures for conversion of (0)4 ... 20 mA to (0)1 ... 5 V
Passive modular enclosure for the conversion of up to 4 measuring signals 0(4) ... 20 mA into a precise 0(1) ... 5 V signal, e. g. for acquisition with a datalogger.

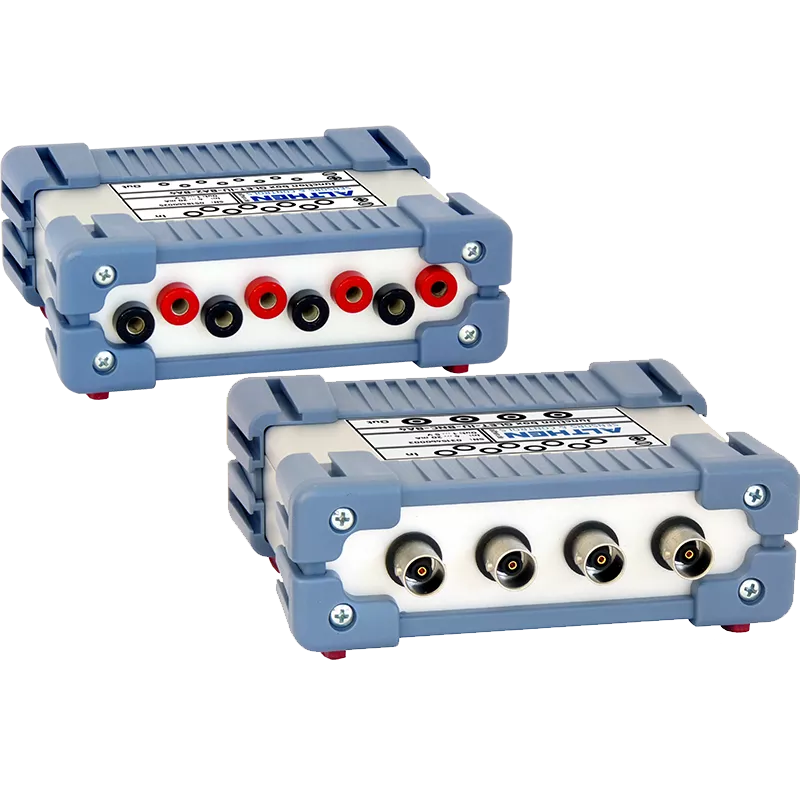

- GLET Module GLET-IU-BA2-BA4 for Graphtec data loggers series GL2xx & GL8xx
- (Graphtec Midi Logger GL240)
- (Graphtec Midi Logger GL840-M & GL840-WV)
- GLET Module GLET-IU-BNC-BA4 for Graphtec data loggers of series GL9xx & GL2000
Accessories for Models with 4 mm Jacks
ADAPKLS4
Set of 2 clamping connectors for direct connection of dismantled leads
- type: 4 mm connector
- wire cross section: 0.12 ... 2.5 mm²
- color: red and black
- configured for voltages up to max. 30 V
- Accessories for Models with BNC
Accessories for Models with BNC
KA-BNC-iso-sw-0.5m
BNC safety connection cable with 2 straight BNC connectors
- material: PVC
- rating: 1000 V, CAT II (600 V CAT III)
- cable length: 0.5 m
- color: black
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Dimensions without connections (wxhxd) | approx. 45 x 115 x 90 mm |
| Electrical connection analog output to datalogger | GLET-IU-BA2-BA4: 2 mm jack, GLET-IU-BNC-BA4: BNC |
| Electrical connection measuring signal | 4 mm jack |
| Enclosure | desktop |
| Environmental sealing | IP20 |
| High-precision resistance | 250 Ohm (0.1 %) |
| Input signal | IIN = 0 ... 20 mA or 4 ... 20 mA (UMAX = 30 V) |
| Operating temperature range | 0 ... +50 °C |
| Output signal | UOUT= 0 ... 5 V or 1 ... 5 V |
