GLET-SU Module
Active modular enclosure with voltage output
About the GLET-SU Module
Active modular enclosure for active transducer/sensor with voltage output

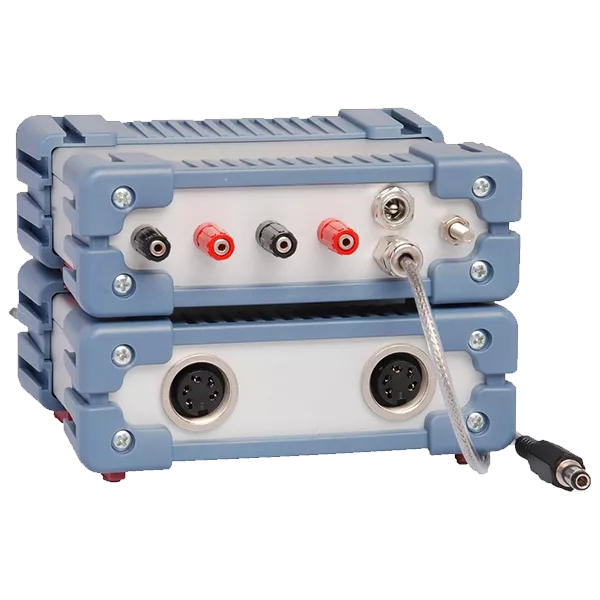

Fig.: Model GLET-SU2K-BNC/B514-BI5, 2 Channels, BNC
Active modular enclosure for wiring of one or two active transducers / sensors with voltage output in 3-wire technology in connection with a datalogger.
1-Channel Models:
- GLET-SU-BA2/B514-BI5 for data loggers of series GL2xx, GL8xx
- (Graphtec Midi Logger GL240)
- (Graphtec Midi Logger GL840-M & GL840-WV)
- GLET-SU-BNC/B514-BI5 for data loggers of series GL9xx, GL2000
2-Channel Models:
- GLET-SU2K-BA2/B514-BI5 for data loggers of series GL2xx, GL8xx
- (Graphtec Midi Logger GL240)
- (Graphtec Midi Logger GL840-M & GL840-WV)
- GLET-SU2K-BNC/B514-BI5 for data loggers of series GL9xx, GL2000
Accessories for Models with BNC
KA-BNC-iso-sw-0.5m
BNC safety connection cable with 2 straight BNC connectors
- material: PVC
- rating: 1000 V, CAT II (600 V CAT III)
- cable length: 0.5 m
- color: black
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Analog output signal | 0 ... 5/10 V |
| Connector for transducer | 5-pin connector (Binder, supplied with mating connector) |
| Dimension without connections (wxhxd) | approx. 45 x 115 x 90 mm |
| Electrical connection analog output to datalogger | GLET-SU(2K)-BA2/B514-BI5: 2 mm jack, GLET-SU(2K)-BNC/B514-BI5: BNC |
| Enclosure | desktop |
| Environmental sealing | IP20 |
| Input signal | 0 ... 5/10 V 3-wire |
| Operating temperature range | 0 ... +50 °C |
| Supply voltage | 24 VDC ±5 % * |
| Transducer excitation | 18 VDC (max. 50 mA) |
