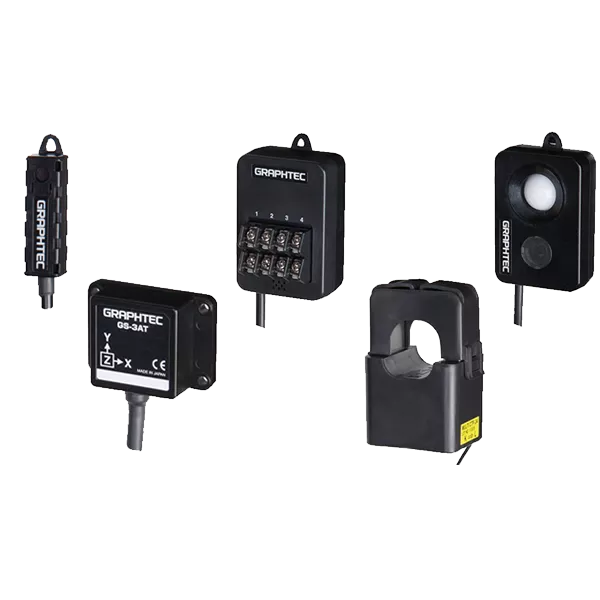

GL100 | GL840 Sensors and Input Modules

The sensors are connected to the GS sensor port of the GL100 and GL840


About the GL100 | GL840 Sensors and Input Modules



GS-TH

  • Temperature/humidity sensor
  • Measurement range temperature: -20 … +85 °C
  • Measurement range humidity: 0 … 100 %



GS-3AT

  • Triaxial acceleration/temperature sensor
  • Measurement range acceleration: up to 10 g
  • Measurement range temperature: -10 … +85 °C



GS-4VT

  • 4-channel voltage/temperature input module
  • Voltage 20 mV to 50 V
  • Thermocouple K and T



GS-4TSR

  • 4-channel thermistor input module
  • Thermistor -40 … 120 °C



GS-103AT-4P

  • Thermistor sensor
  • Measurement range temperature: -40 up to +105 °C
  • 3 m long, 4 pieces per pack



GS-103JT-4P

  • Ultra-thin thermistor sensor
  • Measurement range temperature: -40 up to +120 °C
  • 3 m long, 4 pieces per pack



GS-LXUV

  • Illuminance/UV sensor
  • Measurement range illuminance: 200 klx max.
  • Measurement range UV: 30 mW/cm² max.



GS-CO2

  • Carbon dioxide sensor
  • Measurement range CO2: up to 9999 ppm



GS-DPA-AC

  • AC current sensor adapter for connection of up to two AC current sensors



GS-AC50A

  • AC current sensor
  • Measurement range current: 50 A AC; cable length 200 mm



GS-AC100A

  • AC current sensor
  • Measurement range current: 100 A AC; cable length 200 mm



GS-AC200A

  • AC current sensor
  • Measurement range current: 200 A AC; cable length 200 mm



GS-DPA

  • Dual port adapter for connection of up to two sensors

GS-EXC

  • Module extension cable for input modules, cable length 1.5 m
