GRAPHTEC Data Platform GL7000 System
A modular type data acquisition unit

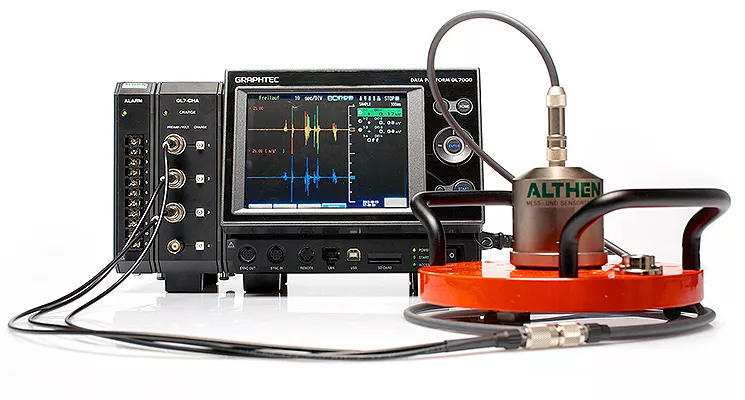

About the Data Platform GL7000 System
The new generation data acquisition unit can measure the desired signal according to the needs and can expand into other applications adding different amplifier moduls. It can be attached to a display module having a touch panel, used as a stand-alone unit or embedding into a system.
Key Features GL7000 System
- 7 types of Input Modules for Voltage, Temperature, DC Strain, Vibration and Logic/pulse available
- 4 types of Function Modules: Display, SSD, Alarm, Voltage Output

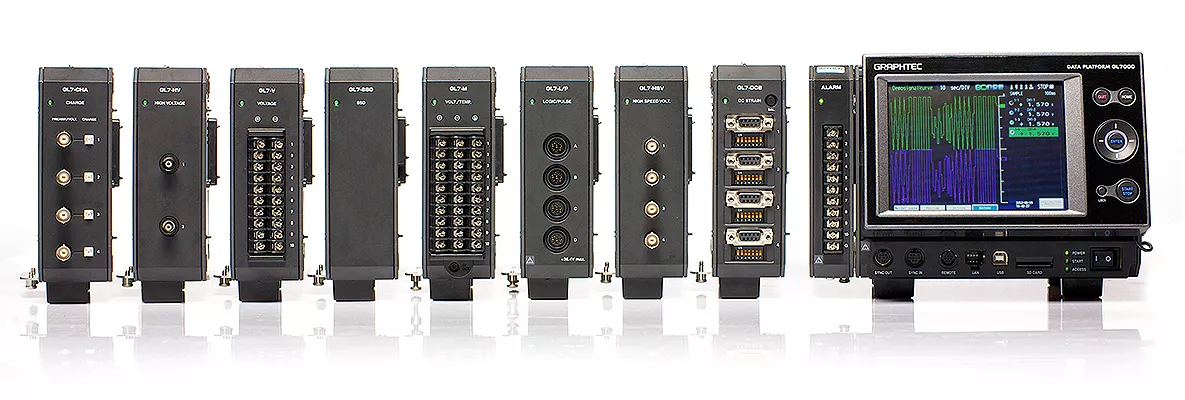

- Up to 10 modules can be attached.
- Flexible module combination allows a wide variety of measurements
- Attaching the high-definition display module with touch panel allows both stand-alone operation and embedding into a system.
- 2 interfaces for connection to your PC: USB 2.0 and Ethernet
- 4 destinations to save the recorded data: build-in RAM, build-in Flash memory, SD memory card and SSD module.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Alarm output terminal: Approx. 30 x 136 x 145 mm (Excluding projection) | |
| Analog voltage: Converts by four reference points (gain, offset) | |
| Analog: Higher/Rising, Lower/Falling, Window-in, Window-out | |
| Analog: Higher/Rising, Lower/Falling, Window-in, Window-out | |
| Data destination for backup cannot be specified to the same storage for destination of capturing data. | |
| Data destination: SD memory card, SSD, FTP server | |
| Disabled (OFF): Data capture is completed in a single trigger | |
| Disabled (OFF): Data in the RAM is not maintained after power is turned off | |
| Enabled (ON): Data in the RAM is saved automatically to the built-in Flash, SD memory card, SSD | |
| Flash memory (2 GB, built-in the main module) | |
| Logic (*5): Higher/Rising, Lower/Falling | |
| Logic (*5): Higher/Rising, Lower/Falling | |
| Marker: Marker is able to record for occurring alarm or power failure. | |
| Pulse (*5): Higher/Rising, Lower/Falling, Window-in, Window-out | |
| Pulse (*5): Higher/Rising, Lower/Falling, Window-in, Window-out | |
| Pulse count: Converts by two reference points (gain) | |
| Relay (*13): Saved data to multiple file without losing data until capturing data is stopped (Destination of data: Built-in Flash, SD memory card, SSD) | |
| Ring (*12): Saved most recent data (Number of capturing data: 1000 to 2000000 points, Destination of data: Built-in RAM, Built-in Flash, SD memory card, SSD) | |
| Signal type: Contact (relay), Open collector, Voltage | |
| Signal type: Open collector (pulled-up by resistor 10 kΩ) | |
| Stop: Off, Measured signal, Alarm, External signal, Clock, Week or Time | |
| Temperature: Converts by two reference points (offset) | |
| The file for capturing data is limited up to 2GB | |
| Accuracy of clock (at 23°c) | ±0.002% (Monthly deviation approx. 50 sec.) |
| Alarm determination condition (*6) | CCombination: OR or AND condition at the level of signal or edge of signal |
| Alarm output | 10 channels |
| Analyzing frequency range | 0.08, 0.2, 0.4, 0.8, 1.6, 2, 3.2, 4, 8, 20, 40, 80, 200, 400, 800 Hz, 2, 4, 8, 20, 40, 80, 200, 400 kHz |
| Annotation function | Comment can be set in each channel (up to 31 alphanumeric characters) |
| Auto save (*11) | Available for the built-in RAM |
| Averaging | Summation average, Exponential average, Peak hold |
| Backup (*11) | Backup interval: Off, 1, 2, 6, 12, 24 hrs. |
| Between channels | Addition, Subtraction, Multiplication and Division for two analog inputs (Sampling speed is limited up to 10 Samples/s (100 ms interval). Available arithmetic element and the output destination is the analog input channel 1 to 100.) |
| Built-in | RAM (2 million samples, built-in amplifier module), |
| Captured data (*11) | Built-in RAM, Built-in Flash, SD memory card, SSD (Data is saved directly to it.) |
| Capturing mode (*11) | Mode: Off, Normal, Ring, Relay |
| Channels | 4 channels |
| Data in built-in ram | Specified number of data up 2 million samples in increments of 1 |
| Display mode | Ethernet (10 BASE-T/100 BASE-TX), USB 2.0 (High speed) |
| During data capture (*15) | Displaying information in two windows, Hot-swapping the SD memory card, Saving data in between cursors. |
| Engineering scale function | Measured value can be converted to the engineering unit |
| External (*11) | SD card (Support SDHC, up to 32GB) slot, SSD (Approx. 128GB) |
| External dimensions (w x d x h) | Main module: Approx. 193 x 141 x 160 mm (Excluding Projection), |
| Functions | Y-T, Linear, Power, PSD, Cross, Transfer function, Coherence, COP |
| Input | Start/Stop, External trigger, External sampling, Auto balance (*3) |
| Message / marker functions | Message: The registered messages or entered message is able to be recorded for any timing. Up to 8 messages can be pre-registered. |
| Model number | GL7000 |
| Move function of the display range | Beginning, center or end of the data, Trigger point, Specific time (absolute, relative), Call cursor |
| Network function | WEB server, FTP server, FTP client, NTP client, DHCP client |
| Number of input channels | Max. 112 channels in 1 of GL7000 |
| Number of module | Attached to up to 10 modules (*1) |
| Number of points | 500, 1000, 2000, 4000, 10000 |
| Operating environment | 0 to 45°C, 5 to 85% RH (non condensed) |
| Output | Trigger, Busy (*3), Alarm (10 channels) (*4) |
| Power consumption | 140VA |
| Power source | 100 to 240 V AC, 50 to 60Hz |
| Pre-trigger (*7) | Number of data before trigger: Up to specified number of captured data |
| Resume | Resume automatically in the same condition after power is recovered as when the power failure occurred during data capture (*9) |
| Search function | Search for analog signal levels, logic signal pattern, pulse signal levels or alarm point in captured data |
| Standard accessories | Quick guide, CD-ROM, AC power cable |
| Statistical | Select two calculations from Average, Peak, Max., Min. in real time and replay (*8) |
| Synchronization between units | Start and Trigger (*14) |
| Trigger action | Start or stop capturing data by the trigger |
| Trigger determination conditions for measured signal | CCombination: OR or AND condition at the level of signal or edge of signal |
| Trigger repeat | Enabled (ON): Automatically re-armed for the next data capture function |
| Trigger source | Start: Off, Measured signal, Alarm, External signal, Clock, Week or Time |
| Usb drive mode | Emulate the USB memory device (*10) |
| Weight | Main module: Approx. 2.2 kg, Alarm output terminal: Approx. 350 g |
| Window function | Rectangular, Hanning, Hamming, Blackman, Flat-top, Exponential |
