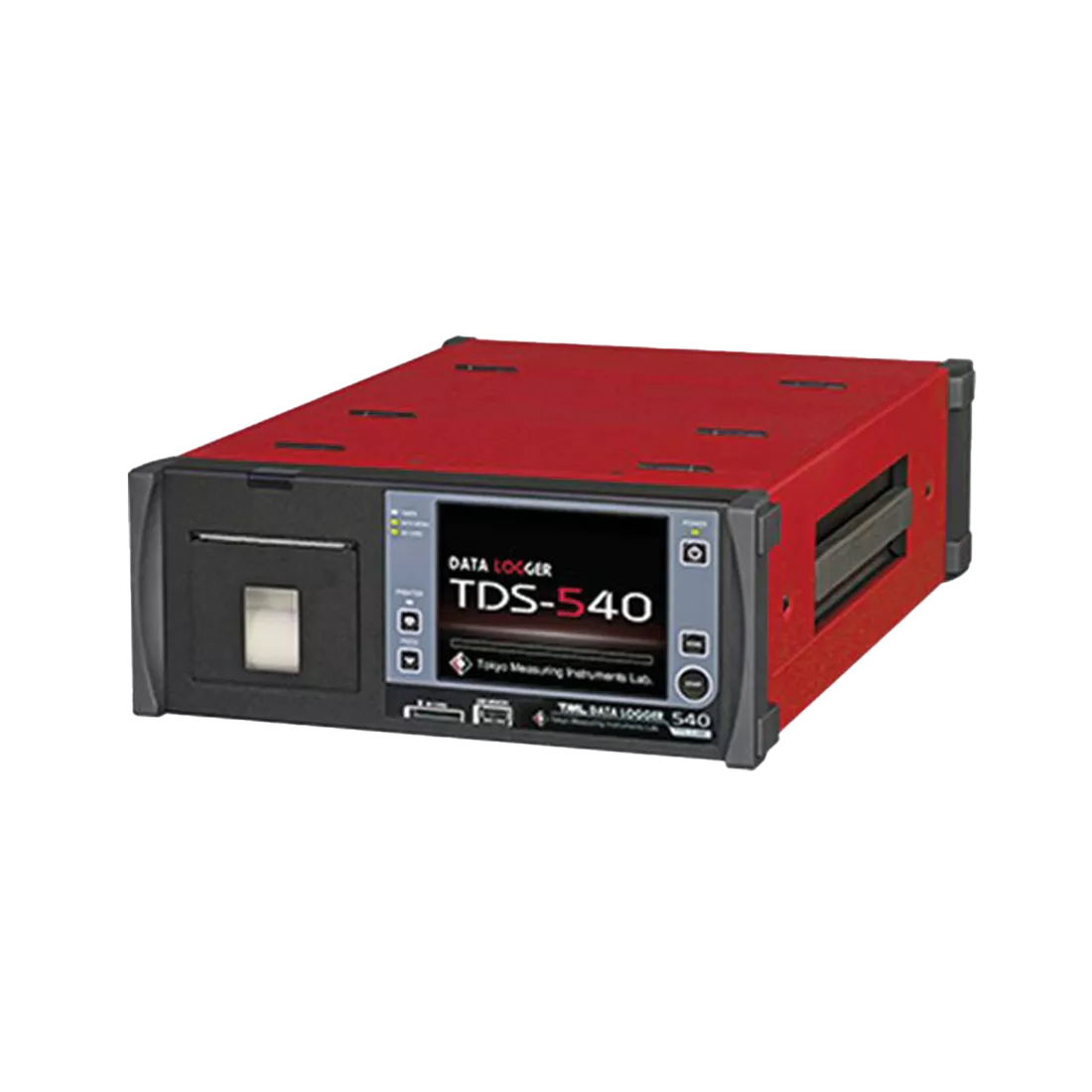

TDS-540 Data Logger

---

Key features

• Onboard color LCD with touch panel
• Interfaces of LAN, USB and RS-232C
• SD card and USB memory and internal data memory
• High accuracy and stability

---

About the TDS-540 Data Logger

The TDS-540 is a data logger incorporating every function required for static strain measurement. It accepts strain gauges, strain gauge type transducers, dc voltage, thermocouples and Pt-RTDs as inputs. Our unique measurement technique enables highly stable and accurate measurement by eliminating the effects of various thermoelectromotive forces, thermal zero shift of amplifier and power line noise. Strain measurement of up to 1000 points is possible in 0.4 seconds by combining with optional high speed switching boxes. High resolution mode of 0.1×10-6 strain is also possible.

Furthermore, it is equipped with a newly developed remote data logger function which makes a remote control of the TDS-540 through internet browser possible. Optional wireless LAN allows measurement and monitoring of the data logger using a tablet terminal or smartphone. Other standard interfaces are Ethernet LAN, USB and RS-232C. In addition, our conventional switching boxes can be used successively.

Features

• Onboard color LCD with touch panel offers excellent intuitive operability in either English or Japanese
• Equipped with three interfaces of LAN, USB and RS-232C
• SD card and USB memory are usable for data storing in addition to internal data memory
• Remote data logger function provided card
• SD card and USB memory and internal data memory
• High accuracy and stability



---
