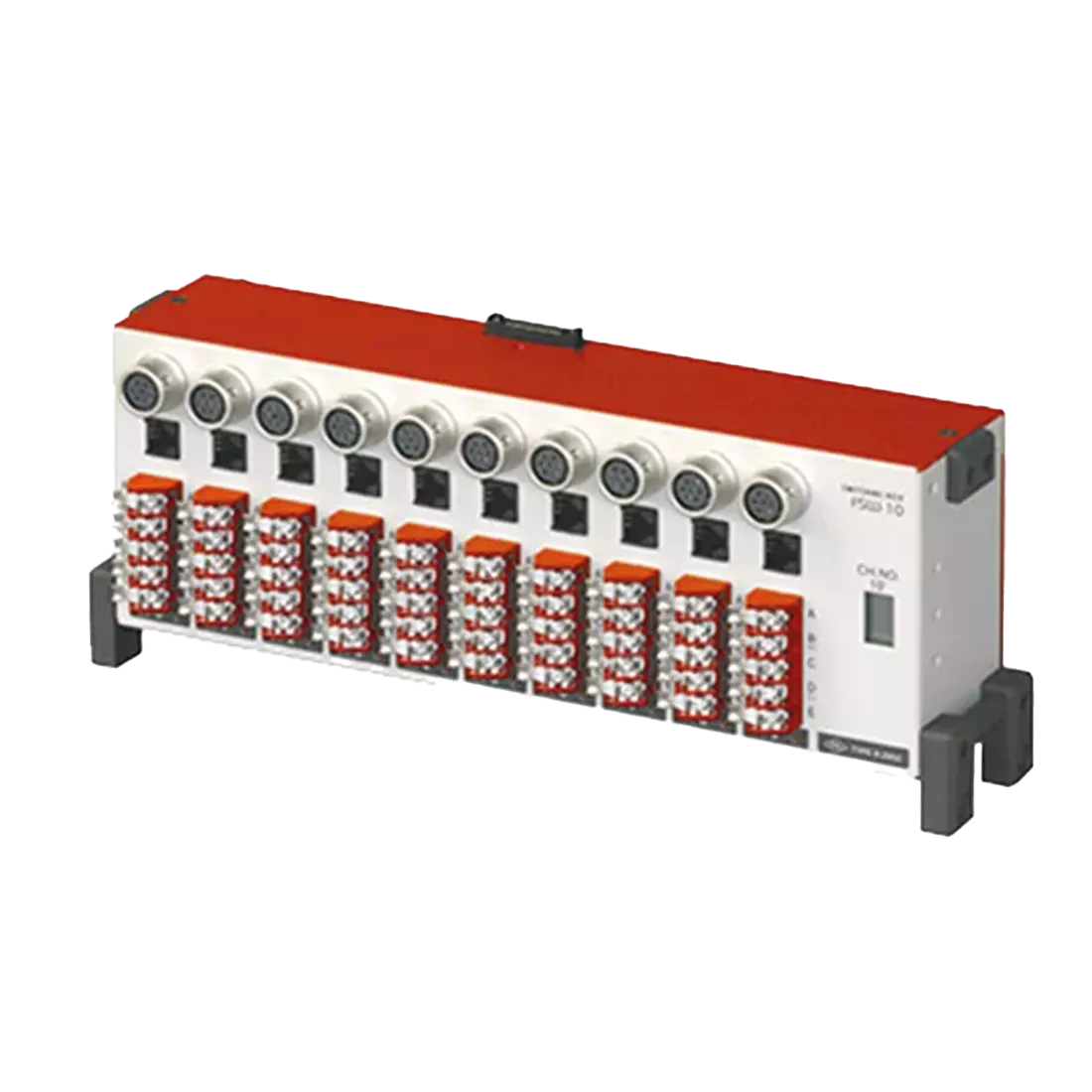

FSW-10 Channel Unit
10-channel unit designed for exclusive use with portable data logger TDS-150
Key features
- 10-channel unit
- For exclusive use with portable data logger TDS-150
- Five numbers of this unit (50 channels) at the max
- Measurement of strain, DC voltage, thermocouple and Pt-RTD
- Measurement of 1-gauge 4-wire method using modular plug for connection
About the FSW-10 Channel Unit
This is a 10-channel unit designed for exclusive use with portable data logger TDS-150. Five numbers of this unit (50 channels) at the maximum can be connected to one TDS-150. Measurement of strain, DC voltage, thermocouple and Pt-RTD are possible. It also accepts measurement of 1-gauge 4-wire method using modular plug for connection.
Features
- 1-gauge 4-wire method with one-touch connection by modular plug
- Measurement of strain, DC voltage, thermocouple and Pt-RTD
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Measuring object | Strain, DC voltage, Thermocouple, Pt-RTD |
| Number of measuring channels | 10 channels |
| Power supply | Supplied from data logger |
