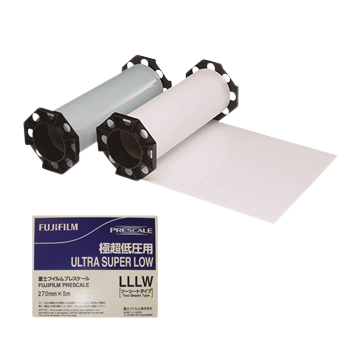

LLLW-5M Fujifilm Prescale
Ultra Super Low Pressure Two-sheet Type
LLLW-5M Fujifilm Prescale
Prescale film is used to precisely measure pressure, pressure distribution, and pressure balance. Red patches will appear on the film wherever contact pressure is applied and the color density will change according to the various contact pressure levels. Due to advanced technology in film manufacturing thin and stable prescale films of less than 200μm are available.
Features LLLW-5M Fujifilm Prescale
- Ultra super low pressure
- Two-sheet roll type
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Measurement range | 0.2 to 0.6Mpa |
| Operating humidity | 35% RH to 80% RH |
| Operating temperature | 20°C to 35°C |
| Precision | ±10% |
| Product size w(mm) x l(m) | 270 x 5 |
| Type | Two-sheet roll type |
