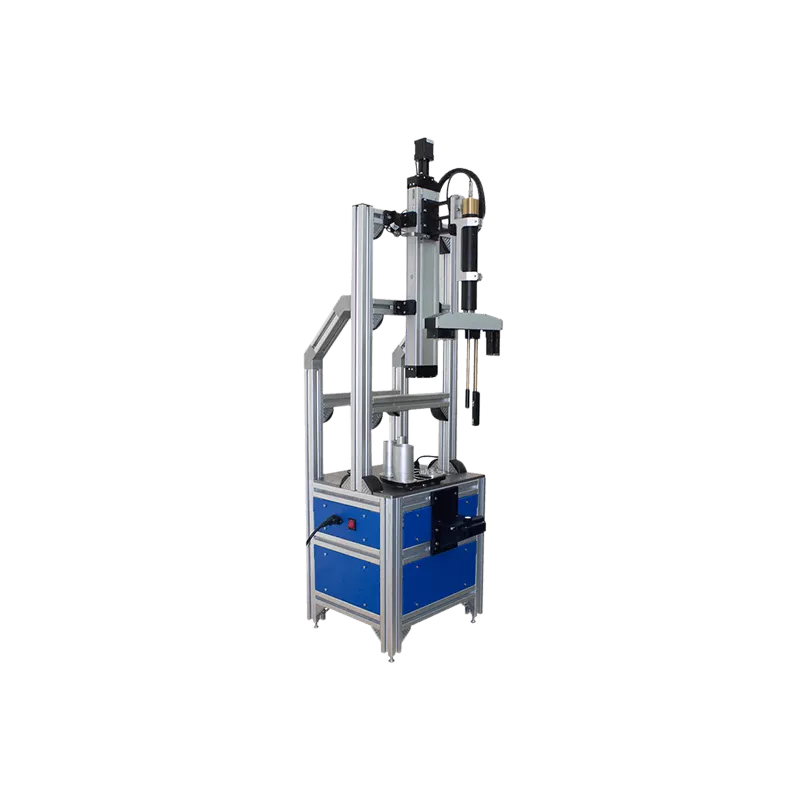

FDRF092 Geometry Measurement System
For contactless scanning and geometrical parameters measurement of laminated tubes, made of PBL and ABL foil
About the FDRF092 Geometry Measurement System
The system is designed for contactless scanning and geometrical parameters measurement of laminated tubes, made of PBL and ABL foil.
Features FDRF092
- Measurement diameters: 13 to 50mm
- Diameter measurement accuracy: ±10 µm
Applications for FDRF092
- Large-scale production.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Diameter mesaurement accuracy | ±10 µm |
| Foil and weld thickness measurement accuracy | ±5 µm |
| Foil thickness range | 0.05mm - 0.5mm |
| Interface to pc | Ethernet |
| Measured diameters | 13mm to 50mm |
| Power supply | 220V |
| Tube length measurement accuracy | ±0.1 µm |
