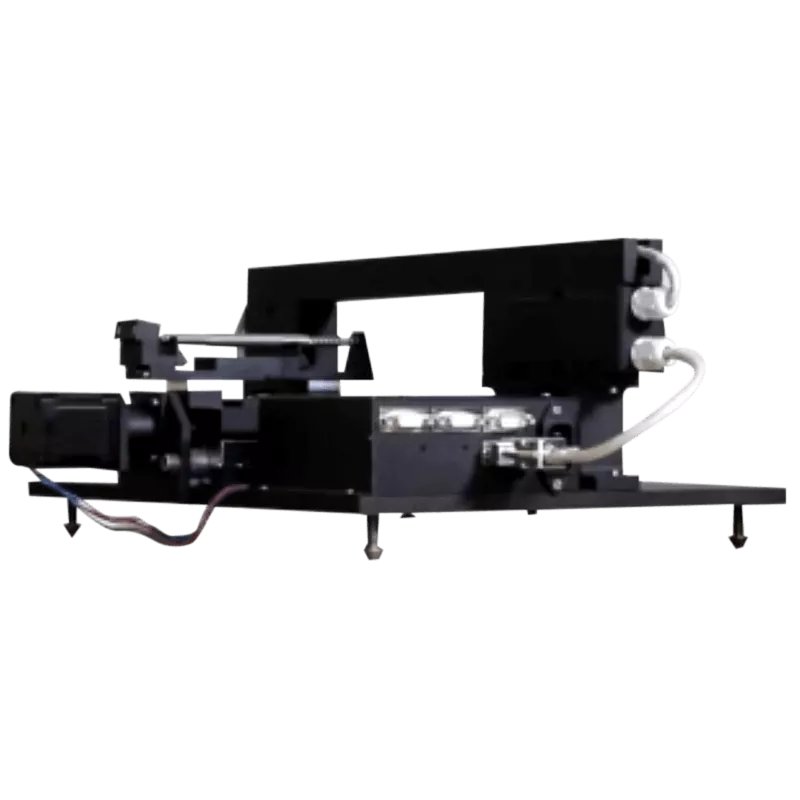

FDRF100 Automated System for Motor Shaft Measurement
This system is designed for motor shafts measurement and control
About the FDRF100 Automated System for Motor Shaft Measurement
The FDRF100 is an automatic optical measurement system.
Measurement starts by placing the piece between the two centers. The operator can specify all measurements and tolerances as needed. Any piece of the item can be measured.
More detailed scanning is possible. The optical micrometer can separately scans all set parts of the detail.
When scanning is completed the measurement results are reflected in the program for future statistic analysis.
All measurements are mapped in the program:
- Diameter
- Angle and taper
- Length
- Threads and screw pitch
- Run-out
- Depth of the hole
- Roundness
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | ±1µm |
| Carriage movement range | 200mm |
| Measurable diameters | From 0,1 to 25mm |
| Scanning speed | 50mm/s |
