Atlas Micro Air Data System

Complete solution for in flight measurement of air data

View technical specifications

Key features

  • User Configurable Operational Modes
  • Command Line Interface
  • Field Upgradeable Firmware
  • Battery-backed Real Time Clock/Calendar
  • Start-up Sync Signal (TTL Trigger)
  • Rugged Aluminum Enclosure
  • LED Indicator Lights
  • Data Logging (Standard 8GB)

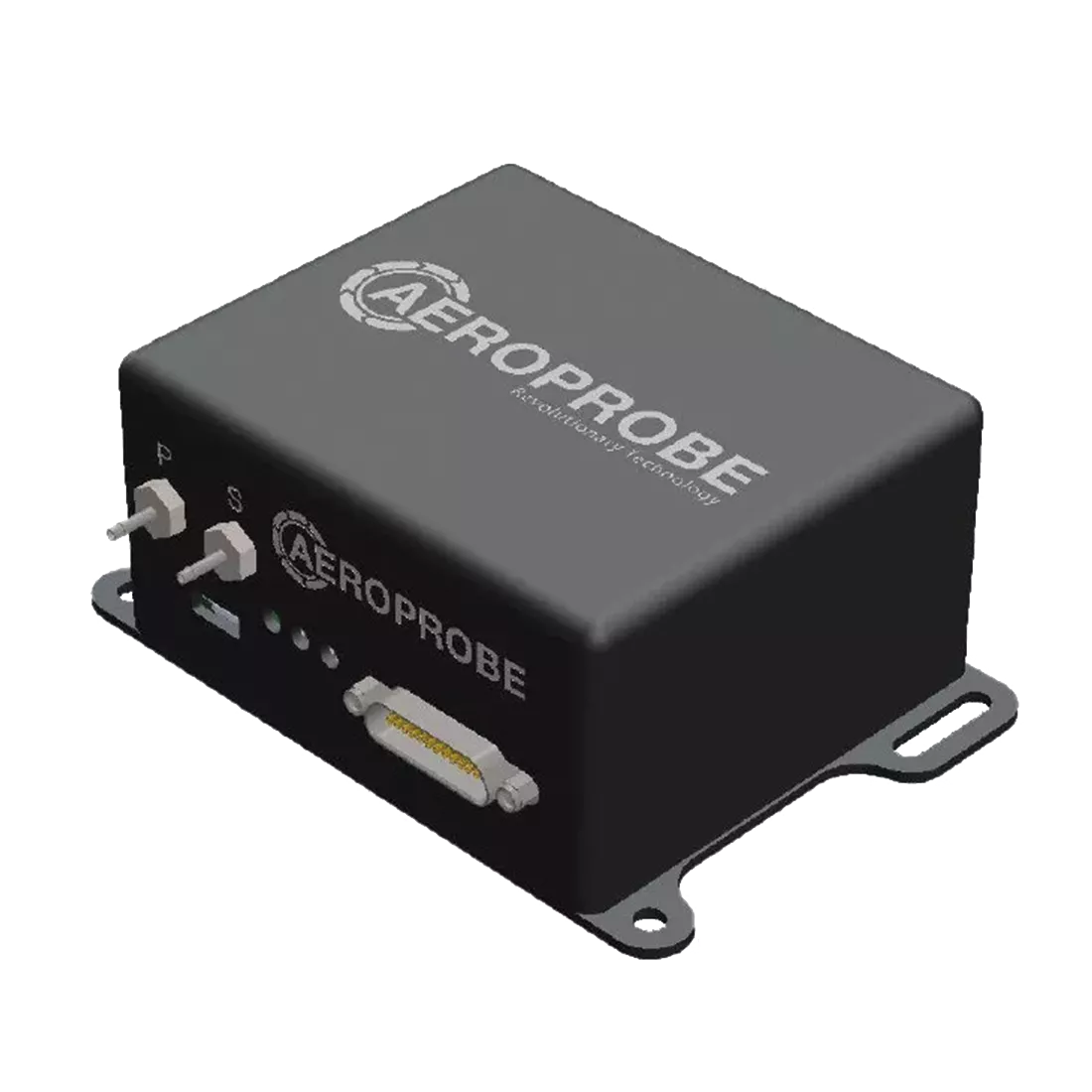

About the Atlas Micro Air Data System (μADC)

The Aeroprobe Atlas μADS is a complete solution for in flight measurement of air data at an unprecedented combination of range, size, and accuracy. The Atlas μADS consists of two primary components: a Pitot-Static Probe and Atlas Micro Air Data Computer (μADC). These components provide direct measurements of airspeed, static and total pressure, and barometric altitude.



Key features Atlas Micro Air Data System (μADC)

  • User Configurable Operational Modes
  • Command Line Interface
  • Field Upgradeable Firmware
  • Battery-backed Real Time Clock/Calendar
  • Start-up Sync Signal (TTL Trigger)
  • Rugged Aluminum Enclosure
  • LED Indicator Lights
  • Data Logging (Standard 8GB)
  • External GPS Synchronization
  • PT100 RTD Temperature Input
  • Mounting Hardware
  • Probe Heater Control



Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Request a quotation

Always the right sensor solution.

  • Free and independent advice for your application
  • Tailor-made offer
  • Development of standard and customised solutions
  • Fast response time

Atlas Micro Air Data System

 Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Current draw at 12 vdc 90 mA
Input voltage range 8 to 36 VDC
Mounting flange footprint 66 x 97 x 1.5 mm / 2.6 x 3.8 x 0.06 inches
Probe heater power at 28 vdc 56 W
Probe heater voltage range 5 to 28 VDC
Rtd (class a or b) range -200 to 600 °C
Sampling data rate options 10, 20, 50, 100 Hz
Serial data output streaming rate options 460800, 230400, 115200, 57600, 38400, 19200 bps
Serial specification options RS232, RS422
Size 66 x 79 x 41 mm / 2.6 x 3.1 x 1.6 inches
