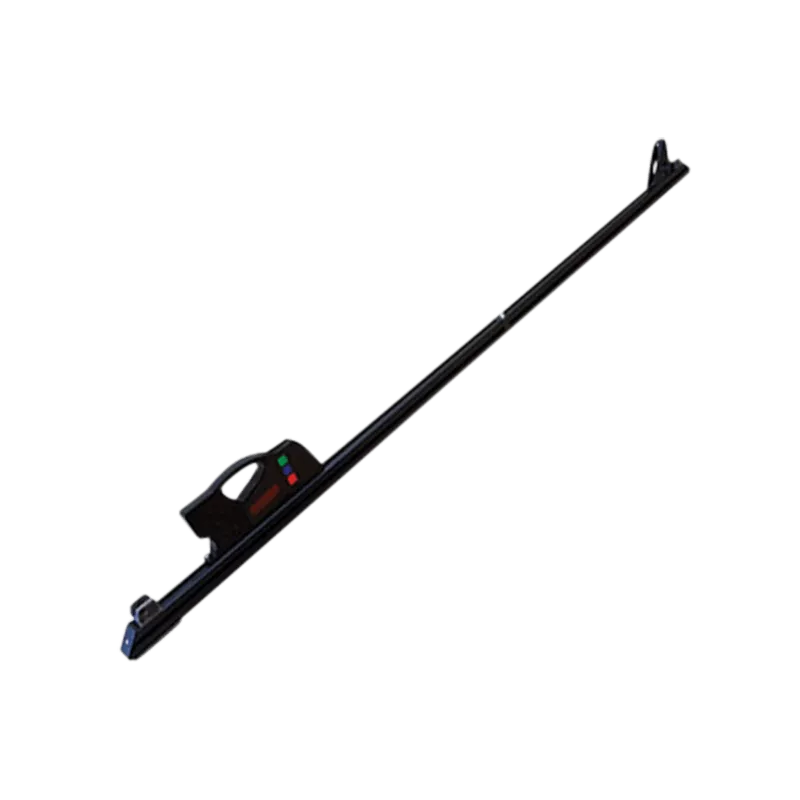

FDIMR Back-to-Back Gauge
Electronic gauge designed for measuring the back-to-back distance of wheels
Key features
- Operating temperature: -5°С to +40°С
- Weight: 1kg
- Dimensions: (L+137mm) x 124mm x 22mm
- Power supply: Rechargeable batteries 2xAAA, 1.2V
- Connection to PC: Bluetooth
About the FDIMR Back-to-Back Gauge
The electronic back-to-back distance measuring gauge is created for contactless measurement of back-to-back distance between railway wheels during repair, examination, check-ups and formation of the wheel sets. This gauge measures directly on rolling stock, therefore roll-out of the wheel set is unnecessary.
Features FDIMR Back-to-Back Measuring Gauge
- Measures back-to-back distance
- Without wheelset roll-out
- For various measurement ranges
- Accuracy: ± 0,1 mm
- LED display
- Including calibration certificate
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Connection to pc | Bluetooth |
| Dimensions | (L+137mm) x 124mm x 22mm |
| Display | Build-in, LED |
| Indication discreteness | 0.1mm or 0.01 inch |
| Measurement error | ±0.1mm |
| Measurement range | L+25mm (L - nominal distance) |
| Operating temperature | -5°С to +40°С |
| Power supply | Rechargeable batteries 2xAAA, 1.2V |
| Weight | 1kg |
