Wireless Wheel Load Measurement System

Developed to accurately weigh and determine the balance of each and every individual axle


About the Wireless Wheel Load Measurement System

The Wireless Wheel Load Measurement System has been developed to accurately weigh and determine the balance of each and every individual axle. Using weight values of all 16 wheels the software calculates axle load, bogie load, averages and balance.

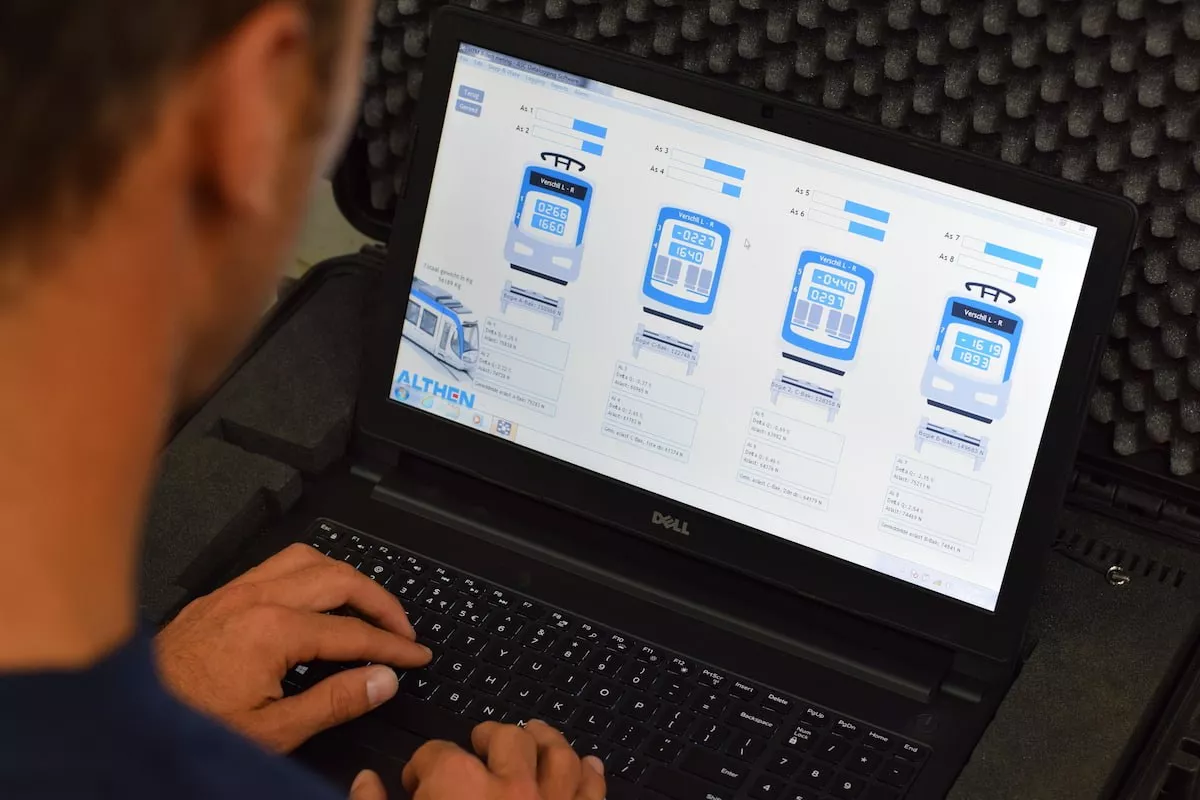

The results are shown in both a number-view and a visual view, taking your specific tolerances and calculations into consideration. Finally a report will be generated and automatically saved making sure no data is lost.

Features Wireless Wheel Load Measurement System

  • Simple (easy to handle by operater)
  • Wireless communication (no cables)
  • Smart software (integrated calculations and reporting)
  • Robust system design
  • Fully covered service (calibration)

Applications

  • Tram or metro maintenance

System includes:

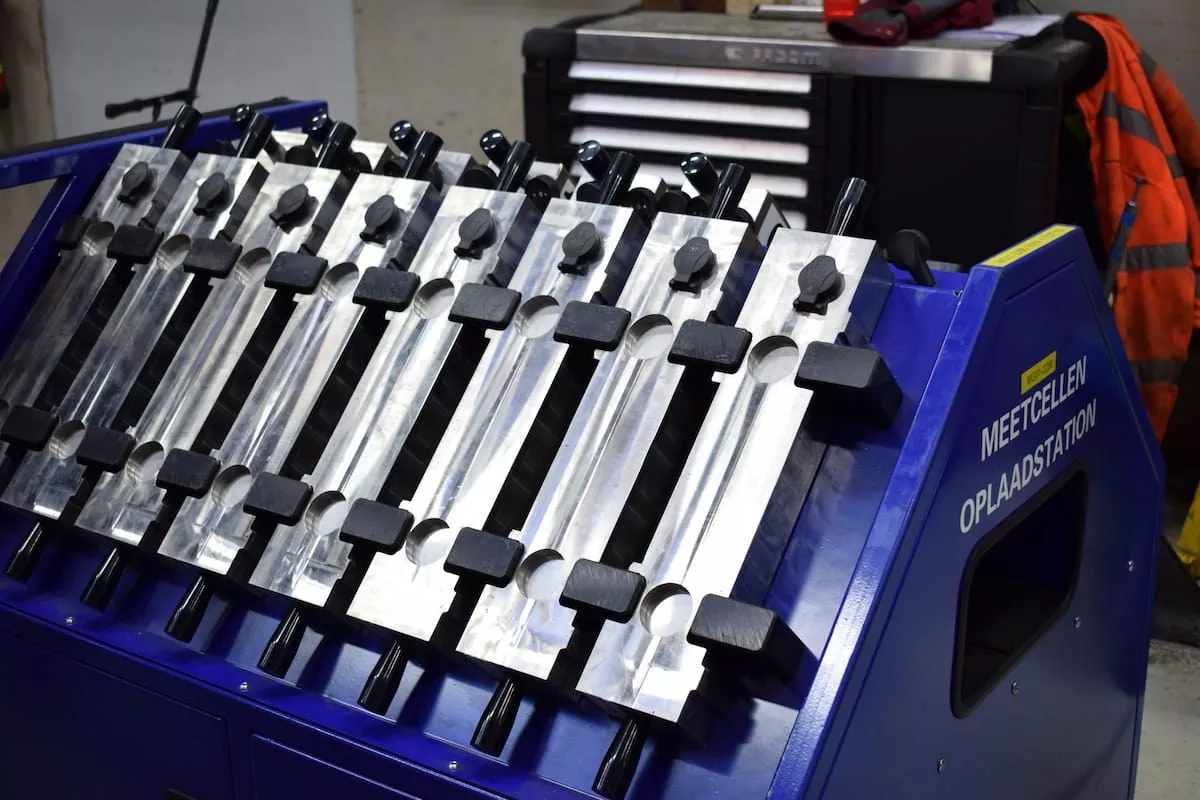

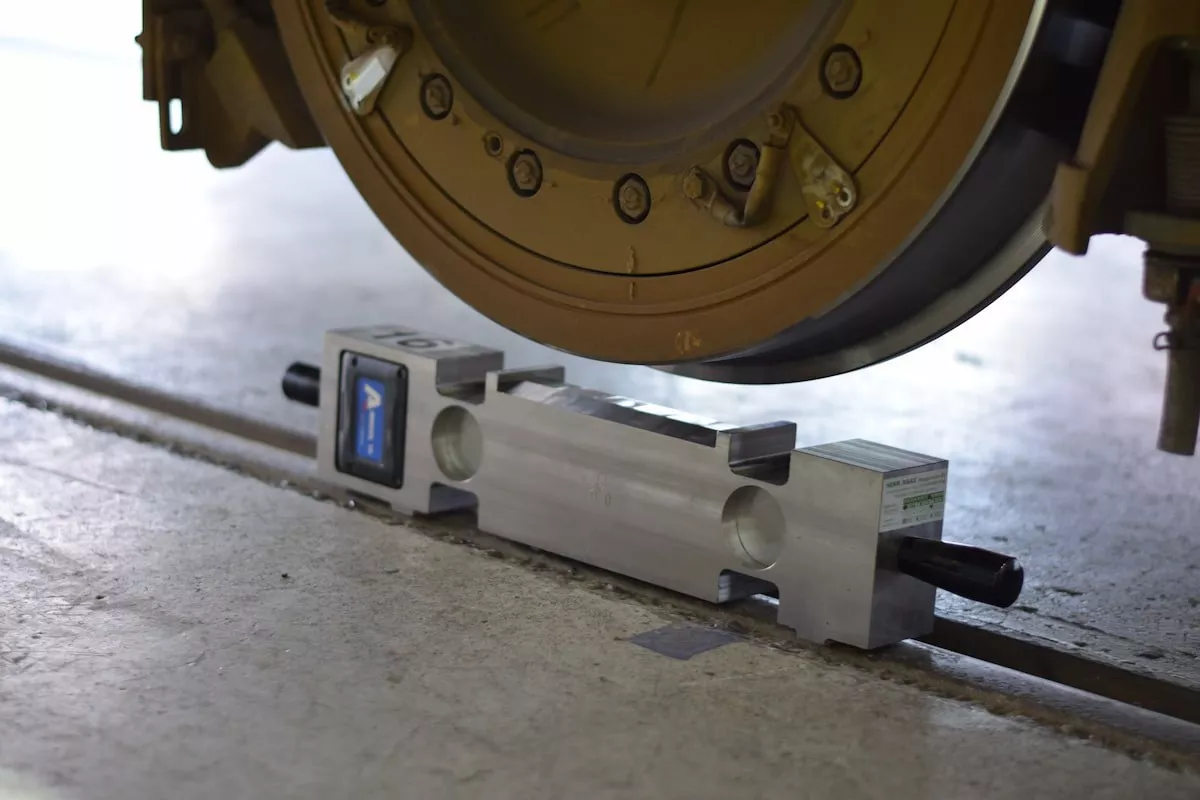

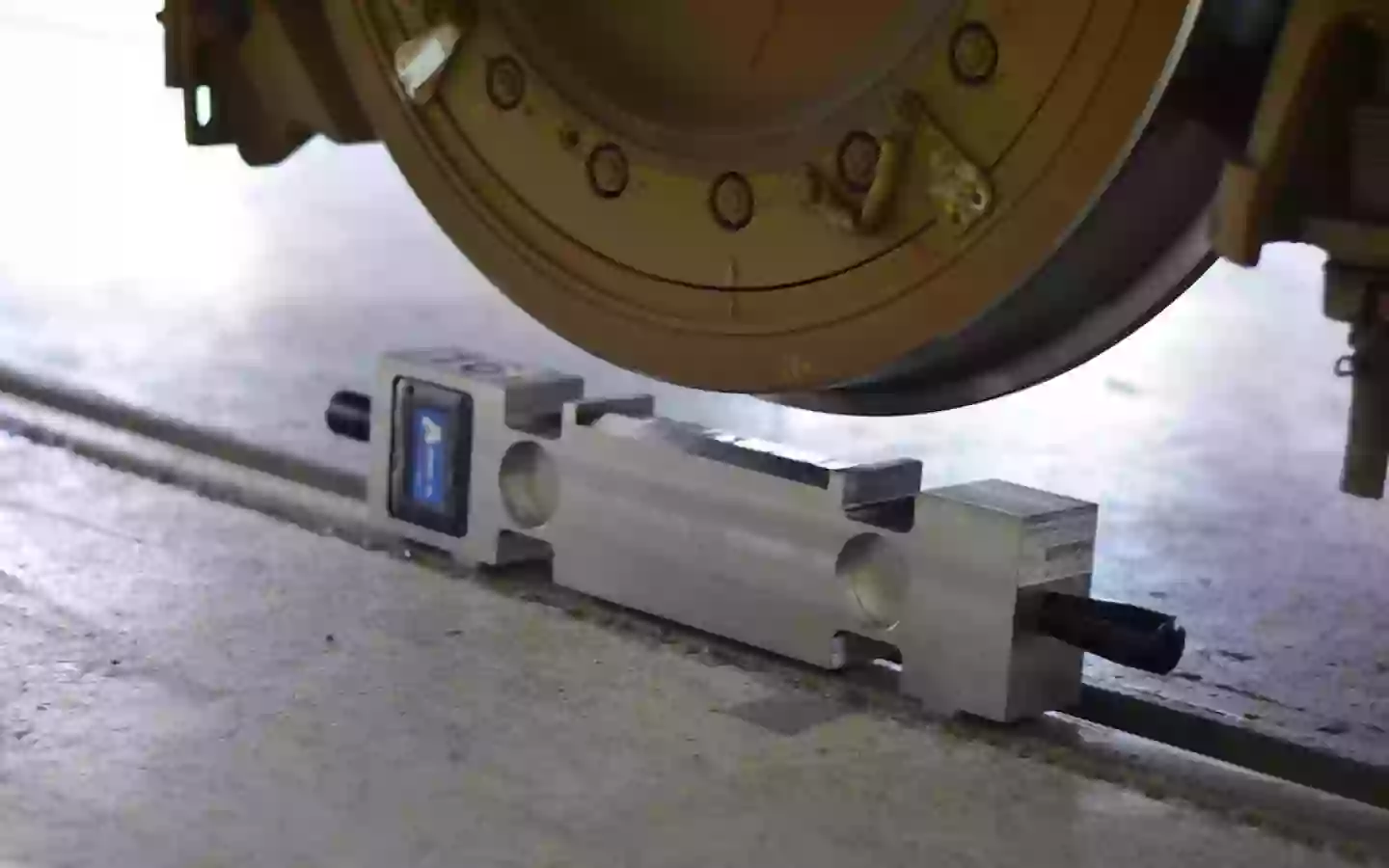

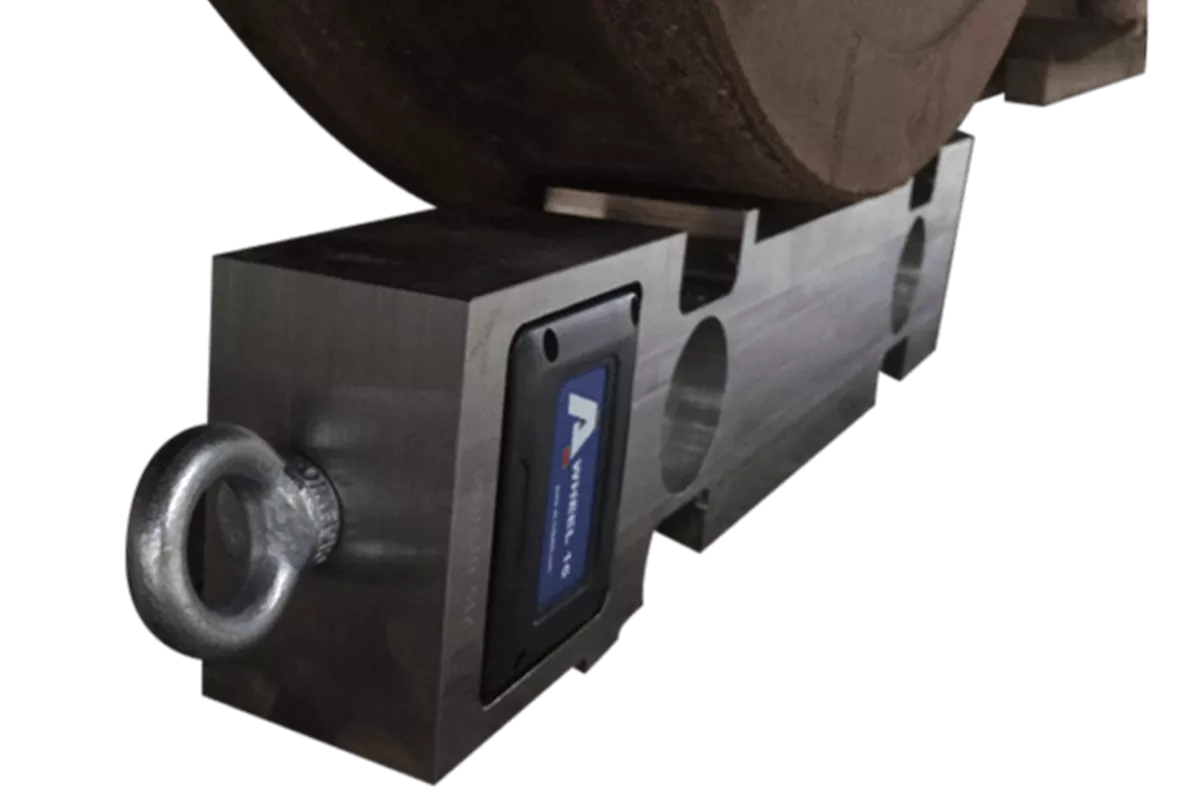

  • 16x Wireless rail beam loadcell
  • 1x Protective case with integrated laptop
  • 1x customized software

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Accuracy ± 0.1% F.S.
Breaking load 300% F.S.
Measurement range 50kN (various ranges on demand)
Operating and compensated temperature -10 to 45°C
Protection degree IP65
Safe load 150% F.S.
