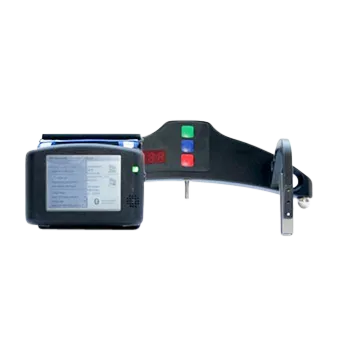

FDK-BT Wheel Diameter Gauge
With Bluetooth interface for transferring results
Key features
- Measurement range, mm: 400…1400 or on request
- Measurement error, mm: ±0.2
- Indication discreteness: 0.1mm, 0.01mm * or 0.01 inch **
- Position of measurement, S, mm: On request
- Distance between axes of ball bearings (base), mm and diameters measurement range, mm:
122±0.5 (400…750 mm) or / 200±0.5 (400…950 mm) or / 250±0.5 (600…1400 mm) or / 300±0.5 (720…1400 mm)
About the FDK-BT Wheel Diameter Gauge
The electronic wheel diameter measuring gauge is designed for high precision measurement of the wheel rolling circle diameter. Based on laser technology the gauge measures accurate and direct on rolling stock without having to roll-out the wheelset. The LED- display shows the wheel diameter with an accuracy of 100 microns. This is a version with Bluetooth.
Features FDK-BT Wheel Diameter Gauge
- Without having to roll-out wheelset
- For various diameters and ranges
- Taper-line to be defined (std. 70mm.)
- Accuracy: ± 0,1 mm
- Bluetooth, LED Display, on side of choice
- Including Calibration Certificate
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| 200±0.5 (400…950 mm) | |
| 250±0.5 (600…1400 mm) | |
| 300±0.5 (720…1400 mm) | |
| Display | Bulid-in, LED |
| Distance between axes of ball bearings (base) and measurement range | 122±0.5 (400…750 mm) |
| Indication discreteness | 0.1mm, 0.01mm * or 0.01 inch |
| Measurement error | ±0.2 |
| Measurement range | 400 to 1400 or on request |
| Operating temperature | -5°С to +55°С |
| Position of measurement | On request |
| Power supply - built in rechargable battery | two AAA 1,2V |
| The number of measurements that can be taken before battery recharge is not less than | 1000 |
| Weight | 0,5kg |
