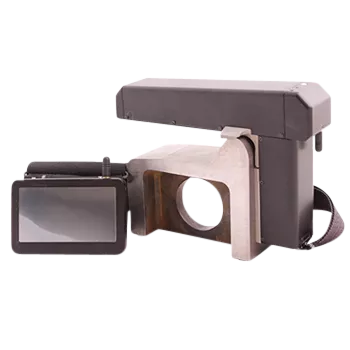

FDKP Wheel Profile Gauge
For measuring geometrical parameters of the rail wheel flange
Key features
- Laser scanning and analysis of wheel profile
- Contactless measurement of wheel profile parameters
- PDA & software for wheel wear database support
- Bluetooth interface for data transfer
More information about the FDKP Wheel Profile Gauge
The laser profilometer is employed for measuring geometrical parameters of the rail wheel flange (thickness, slope, height), rim/tire thickness and for taking full profile of the wheel roll surface.
The device is supplied with database and software package for wheel sets wear data storage and processing.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Average measurment time, s | 4mm |
| Dimensions of laser scanning module | 214mm x 156mm x 54mm |
| Flange height | ± 0,05mm |
| Flange height | 20mm - 45mm |
| Flange slope | ± 0,1mm |
| Flange slope | 1mm - 15mm |
| Flange thickness | ± 0,05mm |
| Flange thickness | 20mm - 50mm |
| Rim thickness | ± 0,1mm |
| Rim thickness | 36mm - 100mm |
