ACCUMEASURE 9000 Capacitive Positiesensor
Een kosteneffectieve oplossing voor toepassingen met één en twee kanalen, zoals diktemetingen en feedbackregeling voor bewegingstrappen op twee assen
Belangrijkste kenmerken
- High accuracy, stability and repeatability
- Fast response time
- Extremely low noise levels
- Built-in universal AC power supply
- High resolution and linearity
- Cost effective single and dual channel applications

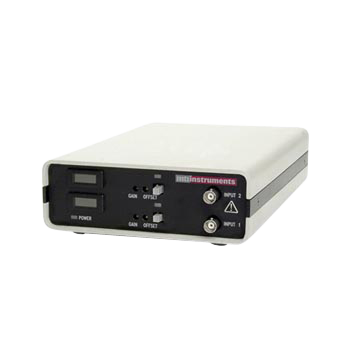

Accumeasure 9000 - Desktop Systems
The Accumeasure 9000 is a cost effective solution for single and dual channel applications such as thickness measurements and dual axis motion stages feedback control. The built-in universal AC power supply and summing amplifier reduce the need for additional system components. It features latest technology in capacitance amplifier design, resulting in the highest resolution and highest linearity available today. The AccumeasureTM 9000 also features an offset adjustment along with a bargraph or digital display for easy probe positioning.
Outstanding accuracy, stability and repeatability are the hallmarks of the Accumeasure System 9000, It provides the perfect solution to many previously unattainable measurement applications. Fast response time and extremely low noise levels make it ideal for critical measurements of targets such as rotating spindles/shafts, disks, tires, X-Y stages and semiconductor wafers. It is portable, lightweight, compact, and setup is fast and easy.
Heeft u deze sensor nodig voor uw project?
Vraag een vrijblijvende offerte aan of stuur ons uw contactgegevens voor een gratis en vrijblijvend gesprek. Onze sales engineers nemen dan binnen maximaal 1 tot 2 werkdagen contact met u op.
Product downloaden
Praat met onze experts
Niet precies wat u zoekt? Wij bieden standaard sensoren, maar kunnen u ook helpen met voor u aangepaste sensoren of een volledig op maat gemaakte meetoplossing. Neem contact met ons op voor advies of prijzen.
Praat met een expertTechnische specificaties
Specificaties | Waarde |
---|---|
Accuracy (% of full scale) | ±0.02% |
Analog output 0-10vdc | BNC |
Dimensions | 240x160x50mm |
Frequency response | Standard filter modules available (10Hz, 100Hz, 200Hz, 500Hz, 1kHz, 2kHz or 5kHz) |
Measurement range | 0 to 12.5mm |
Number of channels | Up to 2 |
Operating temperature | 4 to 38°C (40 to 100°F) |
Output impedance | 50Ω |
Power requirements | 85 to 265 Vac, 47 to 440 Hz |
Resolution (% of full scale) rms | 0.00167% |
Summing amplifier | Standard in dual channel units |
Temperature stability | ±0.01% FSR/°C |
Weight | 2.3kg |
