Air Gap Tool

For static alignment in large-scale hydro generators.


Belangrijkste kenmerken

  • User-friendly setup and operation
  • Full featured app with user-friendly GUI
  • For horizontal and vertical measurements
  • Proven, robust eddy current sensing technology
  • Field adjustable depth and measuring range to optimize for your application
  • Real-time visibility of measurement data, including max, min, and average data is stored to the mobile device on command for recall and downloading
  • Wireless operation, no cords Battery powered, USB re-chargeable

About the Air Gap Tool

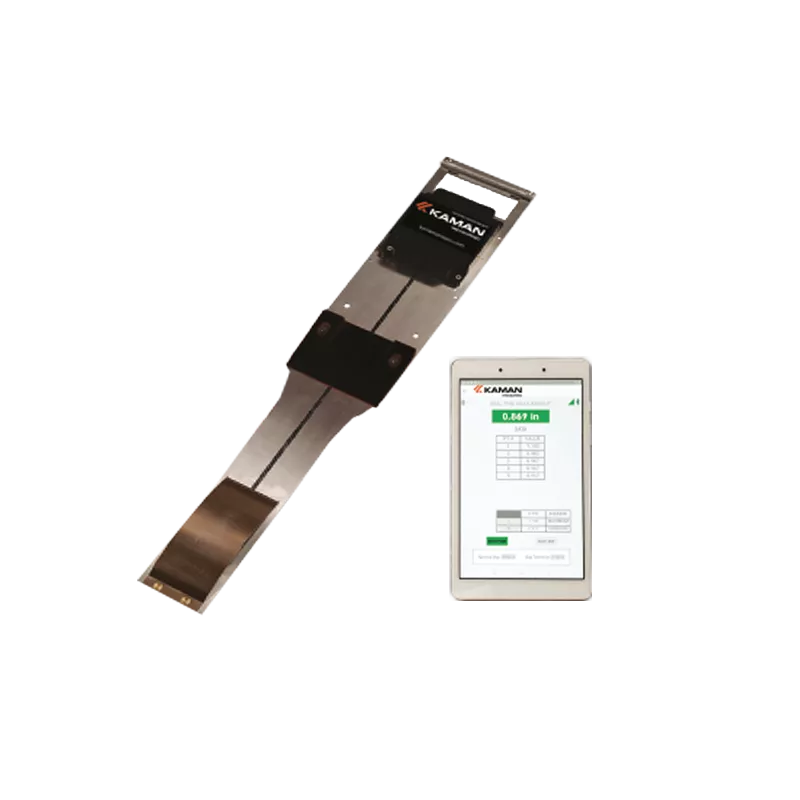

The Wireless Air Gap Tool is designed for static alignment in large-scale hydro generators. It can be used at the time of initial installation and during re-assembly after maintenance procedures. The Air Gap Tool is easily positioned at predetermined locations between the stator core and rotor poles. Air gap distance is accurately measured and transmitted wirelessly to a handheld Android device or iPhone via the includedR App, and stored on command.

Measure and record rotor/stator air gaps in the field faster than ever. Simple, accurate measuring and data storage for hydroelectric turbines and more. No power cords, no pens, no paper. Measure and store data with the tap of a finger. Set limits for intuitive visual feedback while working.

Features

  • User-friendly setup and operation
  • Full featured app with user-friendly GUI
  • For horizontal and vertical measurements
  • Proven, robust eddy current sensing technology
  • Field adjustable depth and measuring range to optimize for your application
  • Real-time visibility of measurement data, including max, min, and average data is stored to the mobile device on command for recall and downloading
  • Wireless operation, no cords Battery powered, USB re-chargeable

Heeft u deze sensor nodig voor uw project?

Vraag een vrijblijvende offerte aan of stuur ons uw contactgegevens voor een gratis en vrijblijvend gesprek. Onze sales engineers nemen dan binnen maximaal 1 tot 2 werkdagen contact met u op.

Praat met een expert

Product downloaden

Praat met onze experts

Niet precies wat u zoekt? Wij bieden standaard sensoren, maar kunnen u ook helpen met voor u aangepaste sensoren of een volledig op maat gemaakte meetoplossing. Neem contact met ons op voor advies of prijzen.

Praat met een expert

Technische specificaties

Specificaties Waarde
Application os Apple, Android
Battery charging USB, adapter included
Carrying case Optional
Measurement range 0.4” to 1.0” Gap [10.16 to 25.4 mm]
Resolution > 4 hours
