ZFCAL Series Hittebestendige Rekstrookjes

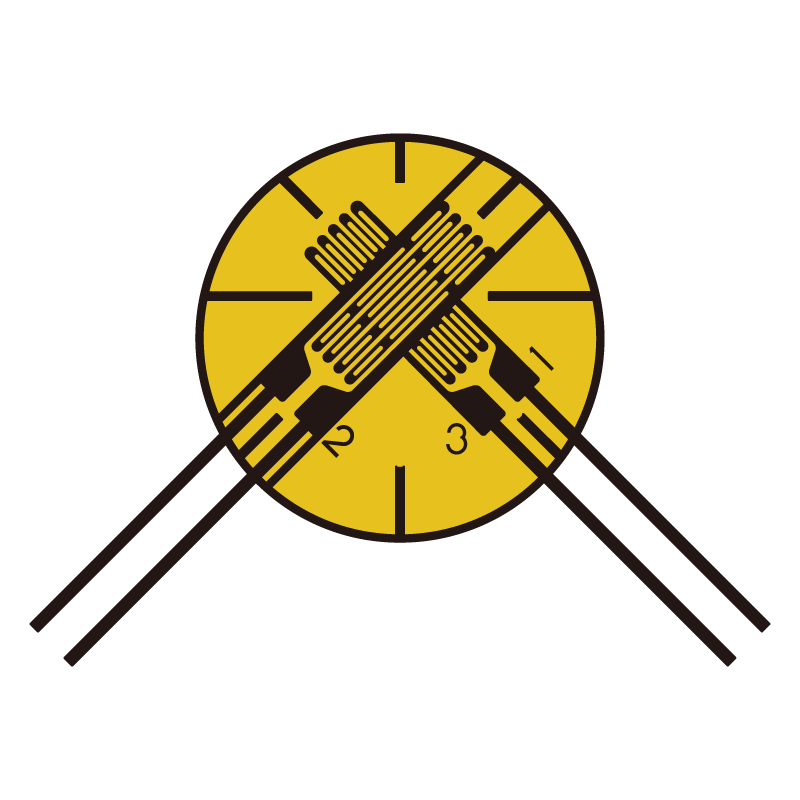

Dubbel element 0°/90° gestapelde hoge temperatuur rekstrookjes
About the ZFCAL Series High Temperature Use Straingauges
ZF series High temperature use strain gauge
These strain gauges are designed for measurement in high temperature up to 300°C. It utilizes specially designed Ni-Cr alloy foil for the grid and polyimide resin for the gauge backing. Owing to the construction, the strain gauges are successfully used for measurement in high temperature.
Features ZFCAL
- Type: High temperature stacked type dual element, up to 300°C
- Gauge resistance: 120Ω
- Gauge length: 1mm
Temperature compensation materials
- 11: Mild steel
- 17: Stainless steel
- 23: Aluminium
Heeft u deze sensor nodig voor uw volgende project?
Vraag vandaag nog een offerte aan of laat uw gegevens achter voor meer informatie van een van onze experts.
Product downloaden
Doe het op uw manier
Niet precies wat u zoekt? Wij bieden standaard sensoren, maar kunnen u ook helpen met voor u aangepaste sensoren of een volledig op maat gemaakte meetoplossing. Neem contact met ons op voor advies of prijzen.
Praat met een expertTechnische specificaties
Specificaties | Waarde |
---|---|
Applicable specimen | Metal, Ceramics |
Backing | Polyimide |
Bonding adhesive | NP-50B, CN, C-1 |
Element | Ni-Cr alloy foil |
Fatigue life at room temperature | 1×10⁶ (±1500×10⁻⁶ strain) |
Operational temperature(°c) | -20~+300°C |
Strain limit | 1% (10000×10⁻⁶ strain) |
Temperature compensation range(°c) | +10~+100°C |
